3M Products & Supplies

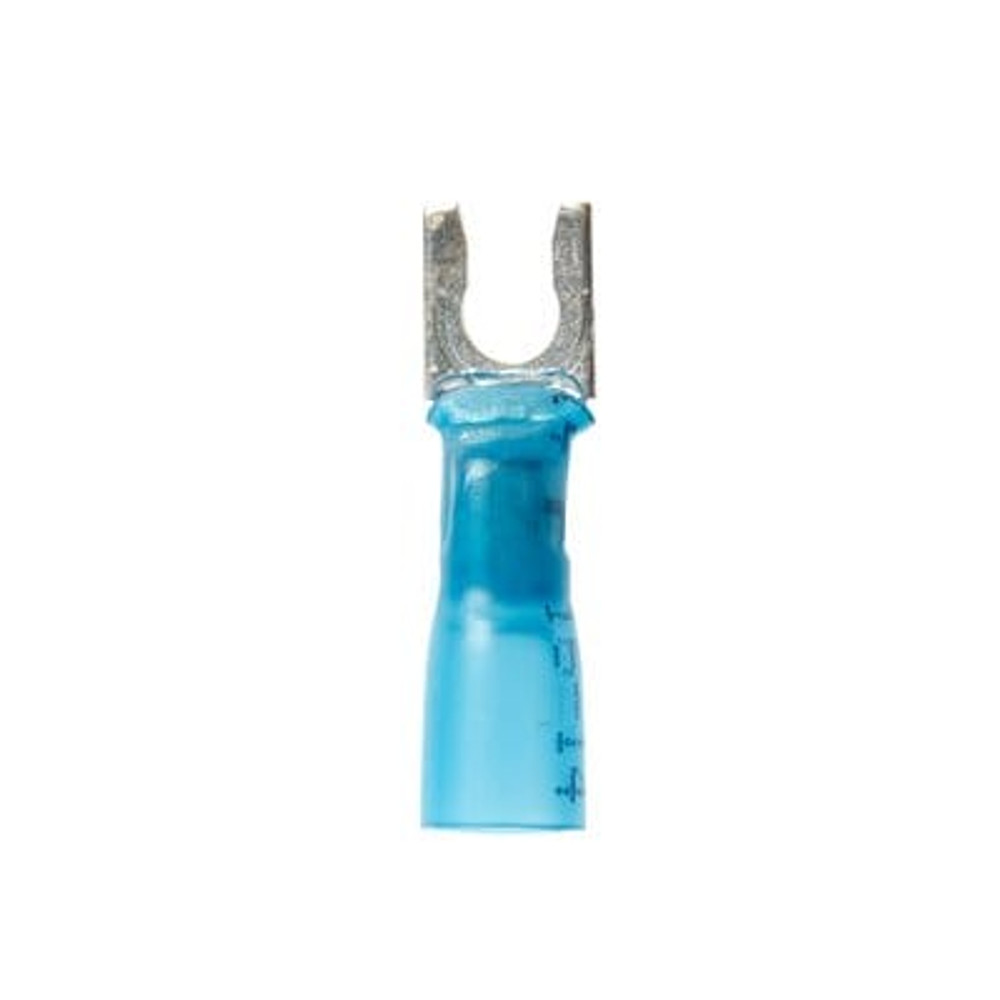

3M™ Scotchlok™ Locking Fork, Heat Shrink Brazed Seam MH14-8FLK, Stud Size 8, 250/Case - 7100164290

Sold As: 250-Pack
SKU: 7100164290
MPN: 7100164290
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007063605
3M ID: 80610530786
5 Digit UPC: 6360
$122.69 ($0.49 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Color-Coded Heat Shrink Locking Fork terminal has a spring-like tongue to securely lock around the stud. The brazed-seam barrel is covered by an adhesive-lined polyolefin tubing to offer moisture-seal protection. It withstands a maximum temperature of 221 degrees F (105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Electrolytic copper construction offers good conductivity
  • Withstands a maximum temperature of 221 degrees F (105 degrees C)
  • Spring-like tongue firmly fits around the stud
  • When crimped and shrunk, pre-insulated adhesive-lined polyolefin offers seal resistance to water and salt

Downloads

Specifications

Country of OriginUnited States
Maximum Operating Temperature (Fahrenheit) UOMDegree
Barrel Length (Imperial)0.25 Inch
Fork TypeLocking
Stud Diameter (Imperial)0.164
Maximum Operating Temperature (Celsius) UOMDegree
Overall Width (Imperial) UOMin
Maximum Conductor Size (Metric)2.08 mm²
Units per Case250.0
Stud Diameter (Metric)4.166
Maximum Operating Temperature (Celsius)105.0
Overall Length (Imperial)1.0
Terminal StyleLocking
Barrel Inside Diameter0.09 Inch
Stud Diameter (Metric) UOMmm
Stud Diameter (Imperial) UOMin
Dimension E0.7 Inch
Terminal TypeFork
Barrel StyleBrazed
Maximum Operating Temperature (Fahrenheit)221.0
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Insulation MaterialHeat Shrink
Minimum Conductor Size (Metric)1.31 mm²
Overall Width (Imperial)0.3
Stud Size#8
Minimum Conductor Size (Imperial)16 AWG
Overall Length (Imperial) UOMin
Maximum Conductor Size (Imperial)14 AWG
Packaging250 per bulk box
Clearance (C)0.12 Inch
