3M™ Scotchlok™ Locking Fork, Heat Shrink Brazed Seam MH14-6FLK, Stud Size 6, 250/Case - 7100164273

Sold As: 250-Pack
SKU: 7100164273
MPN: 7100164273
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007063230
3M ID: 80610530067
5 Digit UPC: 6323
$122.69 ($0.49 / Count)
Hurry up! Current stock:

Product Description

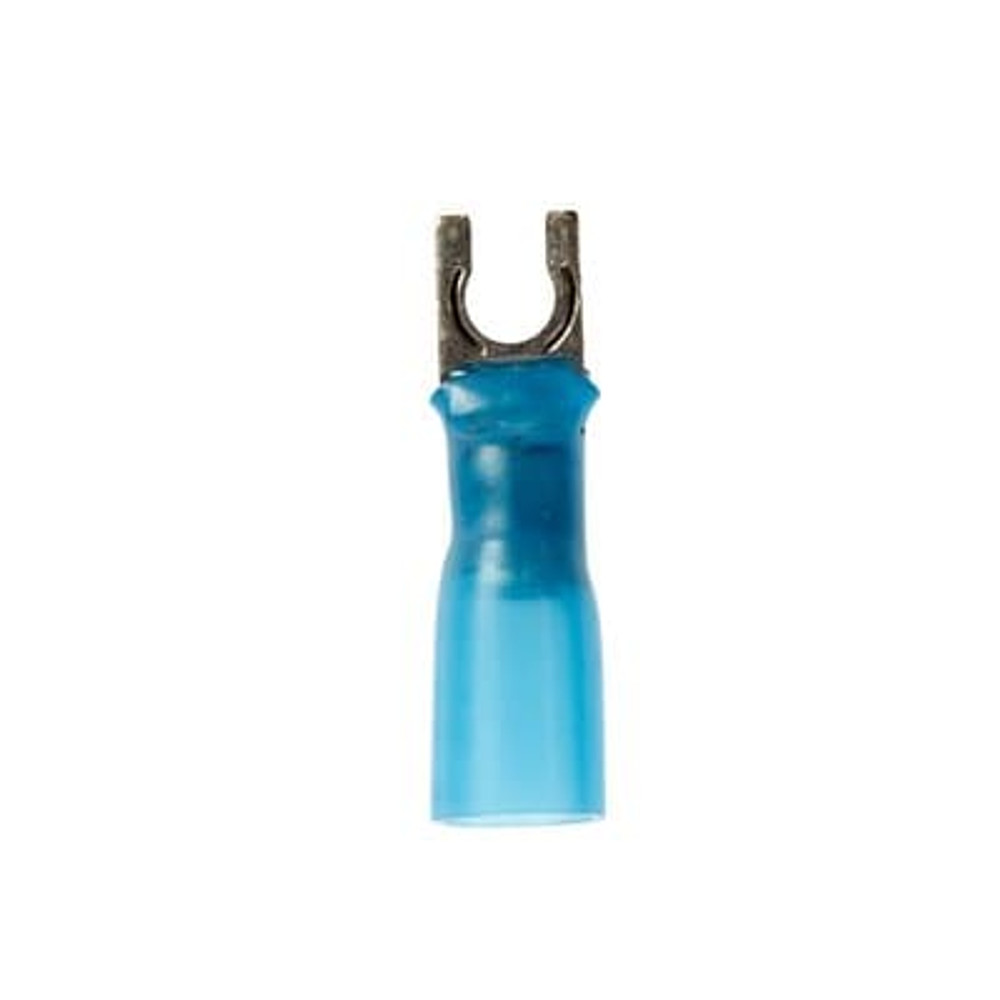

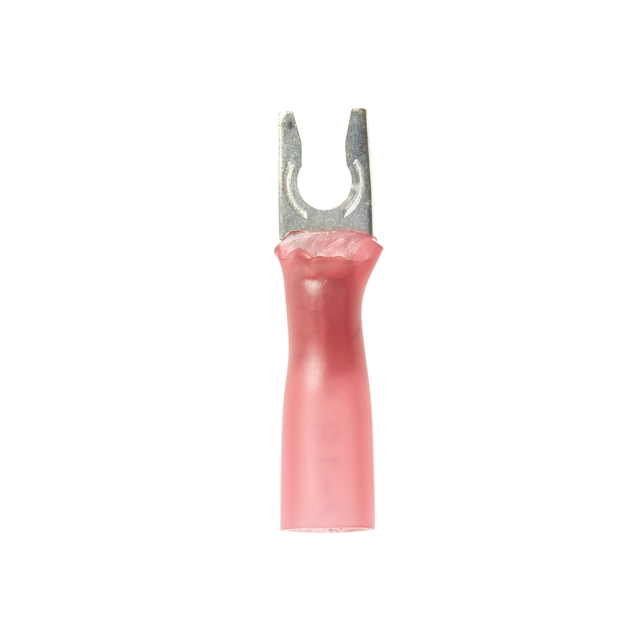

3M™ Scotchlok™ Color-Coded Heat Shrink Locking Fork terminal has a spring-like tongue to securely lock around the stud. The brazed-seam barrel is covered by an adhesive-lined polyolefin tubing to offer moisture-seal protection. It withstands a maximum temperature of 221 degrees F (105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Withstands a maximum temperature of 221 degrees F (105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Spring-like tongue firmly fits around the stud
  • When crimped and shrunk, pre-insulated adhesive-lined polyolefin offers seal resistance to water and salt
  • Electrolytic copper construction offers good conductivity

Downloads

Specifications

Country of OriginUnited States
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Stud Size#6
Insulation MaterialHeat Shrink
Packaging250 per bulk box
Maximum Conductor Size (Metric)2.08 mm²
Maximum Conductor Size (Imperial)14 AWG
Stud Diameter (Imperial) UOMin
Maximum Operating Temperature (Celsius)105.0
Terminal TypeFork
Clearance (C)0.12 Inch
Minimum Conductor Size (Imperial)16 AWG
Maximum Operating Temperature (Celsius) UOMDegree
Barrel StyleBrazed
Overall Width (Imperial)0.25
Overall Width (Imperial) UOMin
Terminal StyleLocking
Barrel Length (Imperial)0.25 Inch
Maximum Operating Temperature (Fahrenheit)221.0
Stud Diameter (Imperial)0.138
Overall Length (Imperial)1.0
Stud Diameter (Metric)3.505
Units per Case250.0
Minimum Conductor Size (Metric)1.31 mm²
Dimension E0.76 Inch
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Imperial) UOMin
Fork TypeLocking
Barrel Inside Diameter0.09 Inch
Stud Diameter (Metric) UOMmm
