3M Products & Supplies

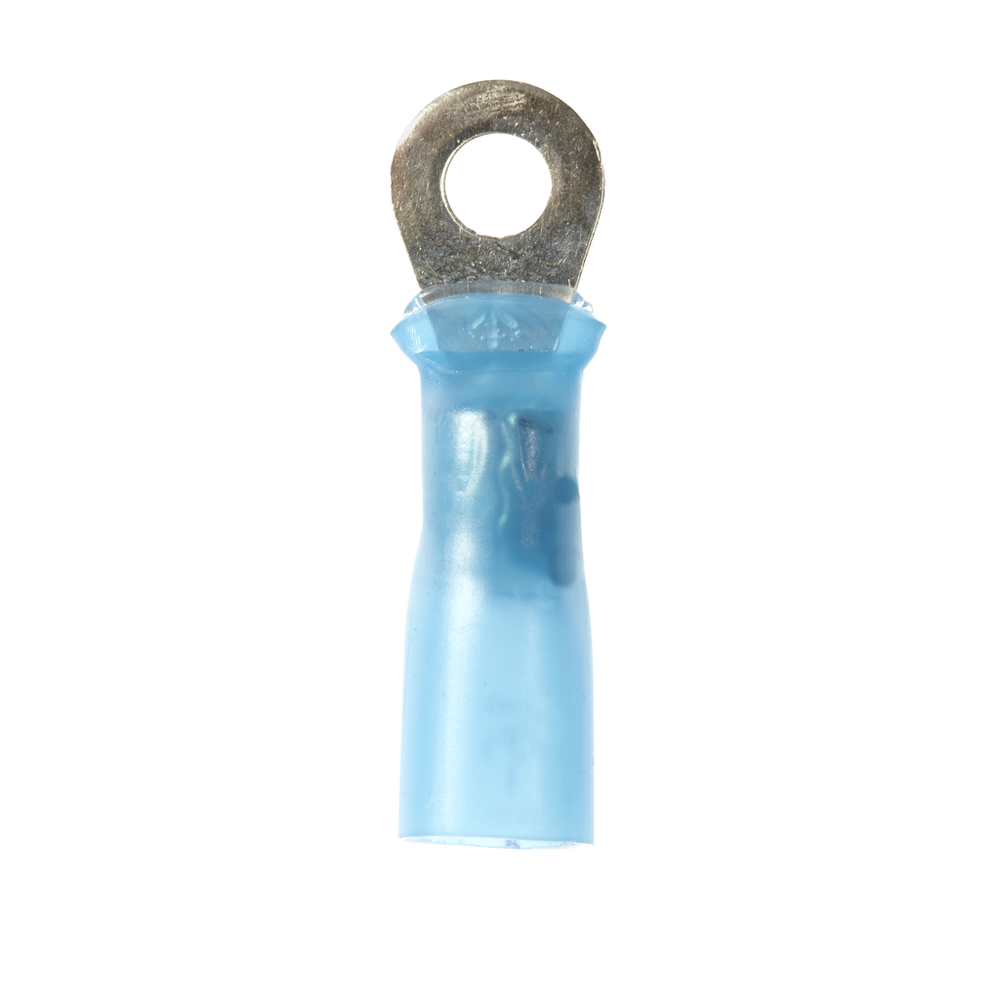

3M™ Scotchlok™ Ring Tongue, Heat Shrink Brazed Seam MH14-6R/LK, Stud Size 6, 250/Case - 7100164272

Sold As: 250-Pack
SKU: 7100164272
MPN: 7100164272
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007063216
3M ID: 80610530042
5 Digit UPC: 6321
$122.69 ($0.49 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Heat Shrink Brazed Seam Ring Tongue ensures an ideal fit and offers reliable performance. The brazed-seam barrel is covered by an adhesive-lined polyolefin tubing to offer moisture-seal protection. It withstands temperatures of 221 degrees F (105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Standard-style ring tongue fits around the stud
  • When crimped and shrunk, pre-insulated adhesive-lined polyolefin offers seal resistance to water and salt
  • Withstands a maximum temperature of 221 degrees F (105 degrees C)
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Brazed-seam terminal uses yellow pre-insulated, heat shrink tubing and ensures a secure fit while offering reliable performance
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Maximum Conductor Size (Imperial)14 AWG
Terminal TypeRing
Overall Width (Imperial) UOMin
Connection Width (Imperial) UOMin
Overall Width (Imperial)0.31
Insulation MaterialHeat Shrink
Minimum Conductor Size (Metric)1.31 mm²
Overall Length (Imperial)1.0
Overall Length (Imperial) UOMin
Connection TypeCrimp
Minimum Conductor Size (Imperial)16 AWG
Maximum Conductor Size (Metric)2.08
Connection Width (Metric)3.5
Maximum Operating Temperature (Celsius)105.0
Connection Width (Metric) UOMmm
Maximum Operating Temperature (Celsius) UOMDegree
Connection Width (Imperial)0.138
