3M Products & Supplies

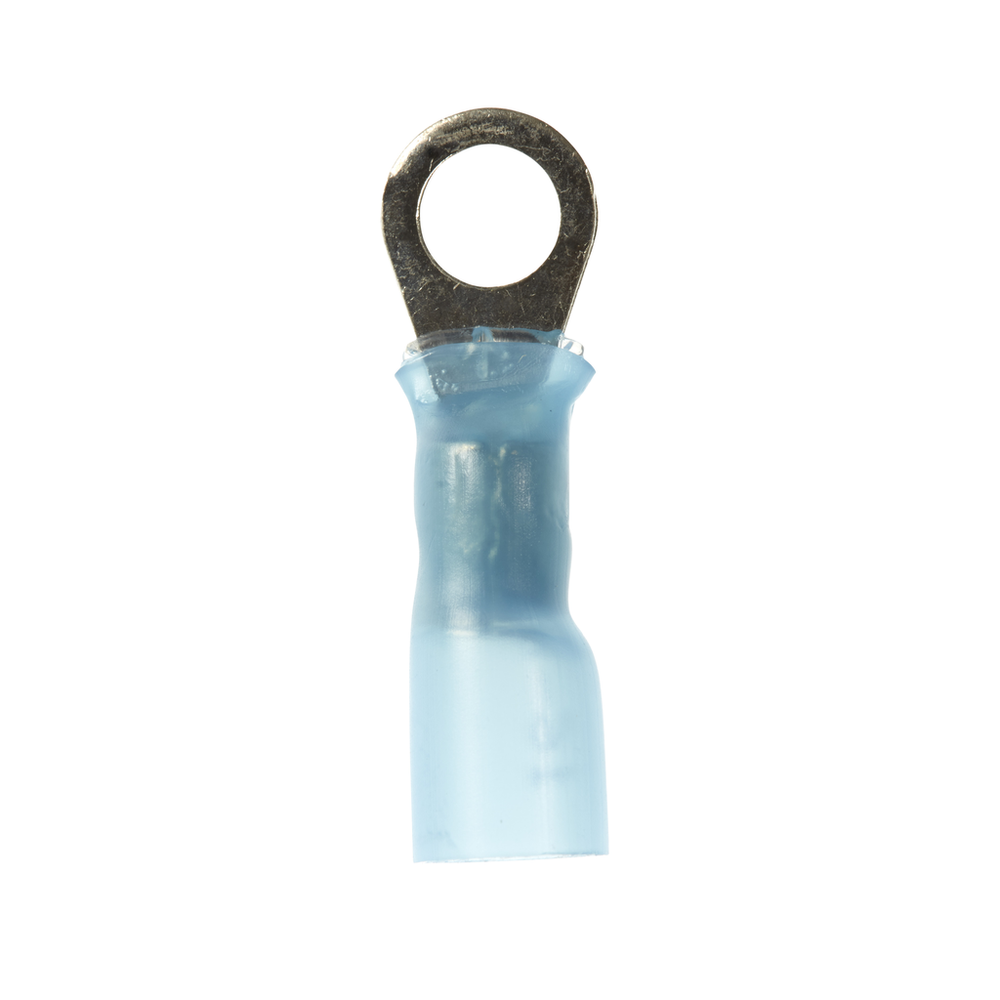

3M™ Scotchlok™ Ring Tongue, Heat Shrink Brazed Seam MH14-10R/LK, Stud Size 10, 250/Case - 7000132449

Sold As: 250-Pack
SKU: 7000132449
MPN: 7000132449
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007063278
3M ID: 80610530109
5 Digit UPC: 6327
$122.69 ($0.49 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Heat Shrink Brazed Seam Ring Tongue ensures an ideal fit and offers reliable performance. The brazed-seam barrel is covered by an adhesive-lined polyolefin tubing to offer moisture-seal protection. It withstands temperatures of 221 degrees F (105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Brazed-seam terminal uses yellow pre-insulated, heat shrink tubing and ensures a secure fit while offering reliable performance
  • Standard-style ring tongue fits around the stud
  • When crimped and shrunk, pre-insulated adhesive-lined polyolefin offers seal resistance to water and salt
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Withstands a maximum temperature of 221 degrees F (105 degrees C)
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Overall Length (Imperial) UOMin
Maximum Conductor Size (Metric)2.08
Connection Width (Metric) UOMmm
Overall Width (Imperial) UOMin
Maximum Conductor Size (Imperial)14 AWG
Minimum Conductor Size (Metric)126.7 mm²
Connection Width (Imperial)0.19
Maximum Operating Temperature (Celsius)105.0
Connection Width (Imperial) UOMin
Insulation MaterialHeat Shrink
Maximum Operating Temperature (Celsius) UOMDegree
Overall Length (Imperial)1.0
Terminal TypeRing
Connection Width (Metric)4.826
Connection TypeCrimp
Minimum Conductor Size (Imperial)16 AWG
Overall Width (Imperial)0.31
Product ColorBlue
