3M Products & Supplies

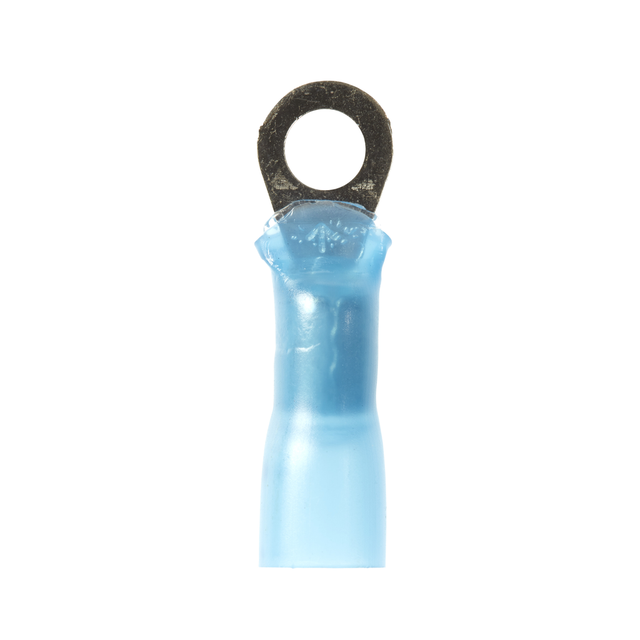

3M™ Scotchlok™ Ring Tongue, Heat Shrink Brazed Seam MH14-38RK, Stud Size 3/8, 250/Case - 7100164277

Sold As: 250-Pack
SKU: 7100164277
MPN: 7100164277
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007063353
3M ID: 80610530182
5 Digit UPC: 6335
$191.79 ($0.77 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Heat Shrink Brazed Seam Ring Tongue ensures an ideal fit and offers reliable performance. The brazed-seam barrel is covered by an adhesive-lined polyolefin tubing to offer moisture-seal protection. It withstands temperatures of 221 degrees F (105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Brazed-seam terminal uses yellow pre-insulated, heat shrink tubing and ensures a secure fit while offering reliable performance
  • When crimped and shrunk, pre-insulated adhesive-lined polyolefin offers seal resistance to water and salt
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a maximum temperature of 221 degrees F (105 degrees C)
  • Standard-style ring tongue fits around the stud
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Minimum Conductor Size (Imperial)16 AWG
Insulation MaterialHeat Shrink
Connection Width (Imperial)0.375
Maximum Conductor Size (Metric)2.08
Maximum Operating Temperature (Celsius)105.0
Overall Length (Imperial)1.1
Minimum Conductor Size (Metric)1.31 mm²
Overall Length (Imperial) UOMin
Overall Width (Imperial) UOMin
Overall Width (Imperial)0.56
Connection Width (Metric)9.525
Maximum Conductor Size (Imperial)14 AWG
Connection TypeCrimp
Connection Width (Imperial) UOMin
Maximum Operating Temperature (Celsius) UOMDegree
Terminal TypeRing
Connection Width (Metric) UOMmm
