3M Products & Supplies

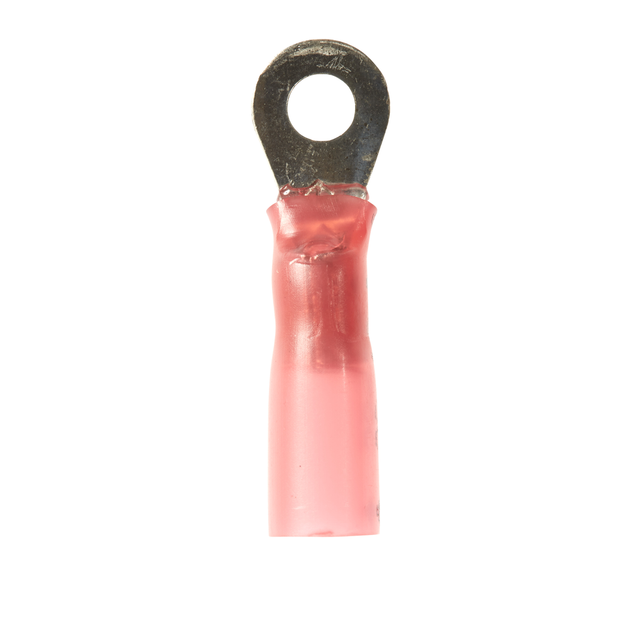

3M™ Scotchlok™ Ring Tongue, Heat Shrink Brazed Seam MH18-10R/LK, Stud Size 10, 250/Case - 7100164283

Sold As: 250-Pack
SKU: 7100164283
MPN: 7100164283
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007063513
3M ID: 80610530349
5 Digit UPC: 6351
$122.69 ($0.49 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Heat Shrink Brazed Seam Ring Tongue ensures an ideal fit and offers reliable performance. The brazed-seam barrel is covered by an adhesive-lined polyolefin tubing to offer moisture-seal protection. It withstands temperatures of 221 degrees F (105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Brazed-seam terminal uses yellow pre-insulated, heat shrink tubing and ensures a secure fit while offering reliable performance
  • Standard-style ring tongue fits around the stud
  • Withstands a maximum temperature of 221 degrees F (105 degrees C)
  • When crimped and shrunk, pre-insulated adhesive-lined polyolefin offers seal resistance to water and salt
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Connection Width (Metric)4.826
Connection TypeCrimp
Connection Width (Imperial)0.19
Maximum Conductor Size (Imperial)18 AWG
Maximum Conductor Size (Metric)0.823
Maximum Operating Temperature (Celsius)105.0
Minimum Conductor Size (Imperial)22 AWG
Connection Width (Imperial) UOMin
Overall Length (Imperial)1.0
Terminal TypeRing
Overall Width (Imperial)0.31
Insulation MaterialHeat Shrink
Connection Width (Metric) UOMmm
Maximum Operating Temperature (Celsius) UOMDegree
Minimum Conductor Size (Metric)0.326 mm²
Overall Length (Imperial) UOMin
Overall Width (Imperial) UOMin
