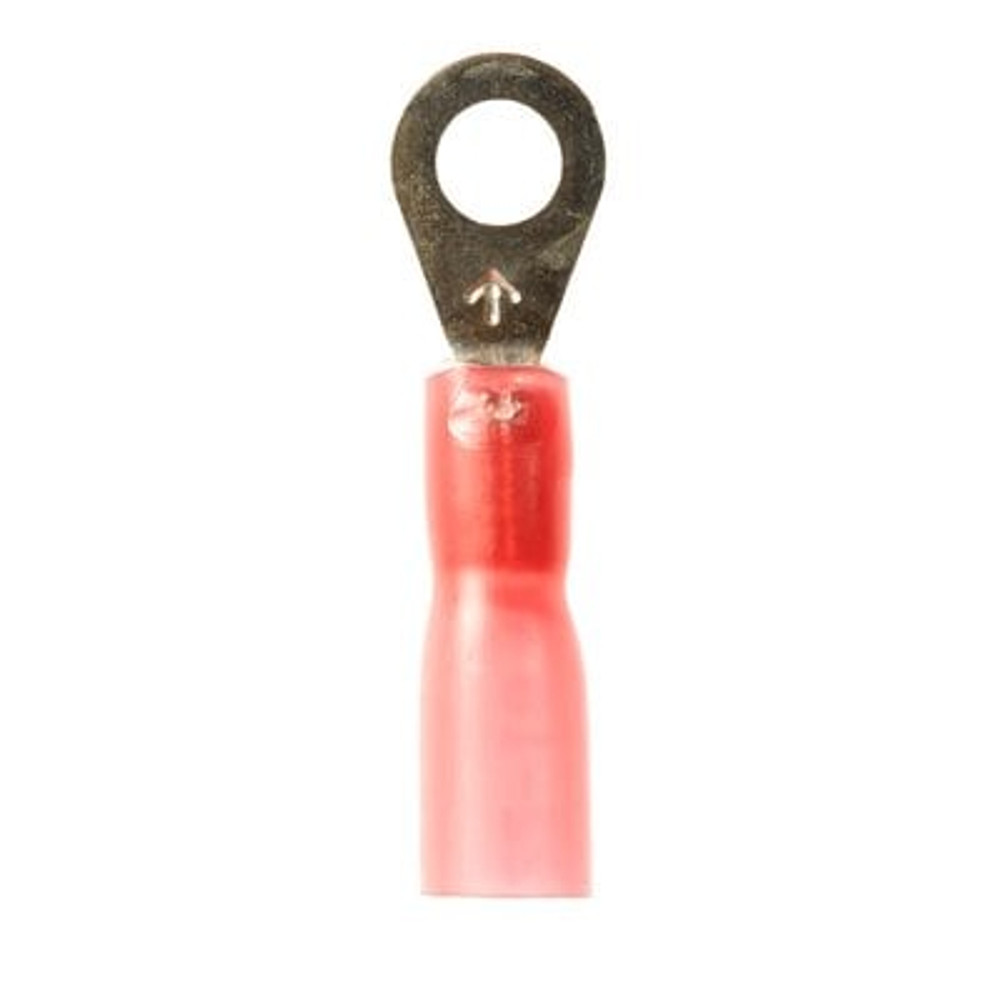

3M™ Scotchlok™ Ring Tongue, Heat Shrink Brazed Seam MH18-8R/LK, Stud Size 8, 250/Case - 7100164282

Sold As: 250-Pack
SKU: 7100164282
MPN: 7100164282
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007063490
3M ID: 80610530323
5 Digit UPC: 6349
$122.69 ($0.49 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Heat Shrink Brazed Seam Ring Tongue ensures an ideal fit and offers reliable performance. The brazed-seam barrel is covered by an adhesive-lined polyolefin tubing to offer moisture-seal protection. It withstands temperatures of 221 degrees F (105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Withstands a maximum temperature of 221 degrees F (105 degrees C)
  • Standard-style ring tongue fits around the stud
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • When crimped and shrunk, pre-insulated adhesive-lined polyolefin offers seal resistance to water and salt
  • Brazed-seam terminal uses yellow pre-insulated, heat shrink tubing and ensures a secure fit while offering reliable performance
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Overall Length (Imperial) UOMin
Overall Width (Imperial) UOMin
Overall Length (Imperial)1.0
Maximum Operating Temperature (Celsius)105.0
Maximum Conductor Size (Metric)0.823
Minimum Conductor Size (Imperial)22 AWG
Connection Width (Imperial) UOMin
Maximum Operating Temperature (Celsius) UOMDegree
Overall Width (Imperial)0.31
Insulation MaterialHeat Shrink
Connection TypeCrimp
Connection Width (Imperial)0.164
Terminal TypeRing
Minimum Conductor Size (Metric)0.326 mm²
Maximum Conductor Size (Imperial)18 AWG
Connection Width (Metric)4.166
Connection Width (Metric) UOMmm
