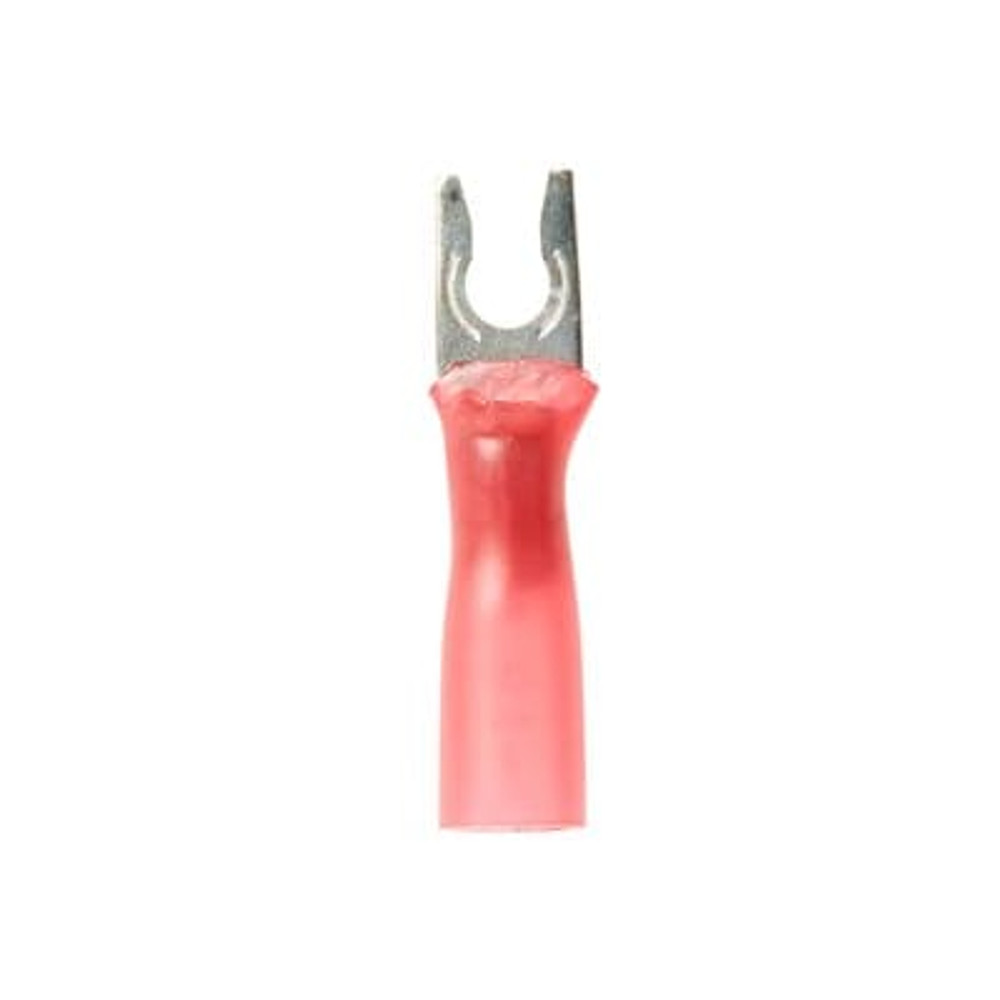

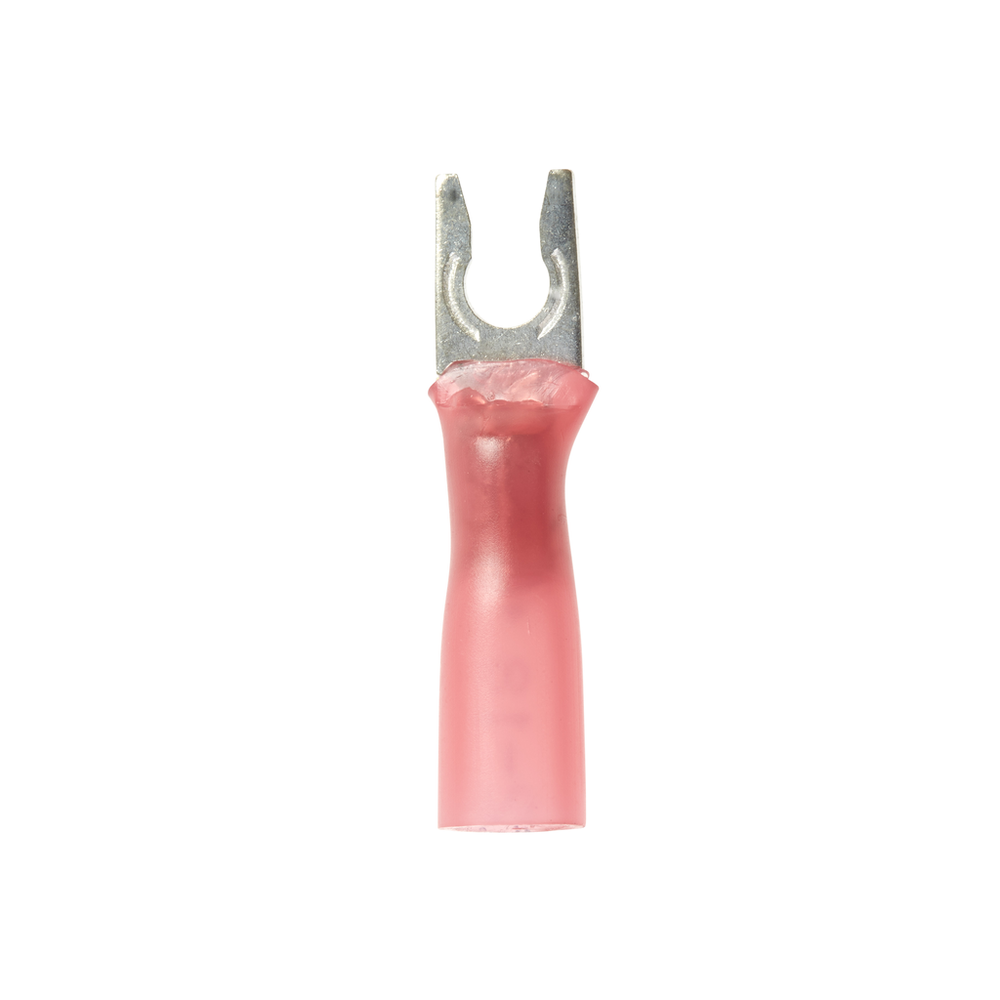

3M™ Scotchlok™ Locking Fork, Heat Shrink Brazed Seam MH18-6FLK, Stud Size 6, 250/Case - 7100164281

Sold As: 250-Pack
SKU: 7100164281
MPN: 7100164281
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007063476
3M ID: 80610530307
5 Digit UPC: 6347
$122.69 ($0.49 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Color-Coded Heat Shrink Locking Fork terminal has a spring-like tongue to securely lock around the stud. The brazed-seam barrel is covered by an adhesive-lined polyolefin tubing to offer moisture-seal protection. It withstands a maximum temperature of 221 degrees F (105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Electrolytic copper construction offers good conductivity
  • When crimped and shrunk, pre-insulated adhesive-lined polyolefin offers seal resistance to water and salt
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Spring-like tongue firmly fits around the stud
  • Withstands a maximum temperature of 221 degrees F (105 degrees C)

Downloads

Specifications

Country of OriginUnited States
Dimension E0.76 Inch
Stud Diameter (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit) UOMDegree
Barrel Inside Diameter0.07 Inch
Stud Size#6
Overall Length (Imperial)1.0
Maximum Conductor Size (Metric).0823 mm²
Terminal StyleLocking
Minimum Conductor Size (Imperial)22 AWG
Barrel StyleBrazed
Maximum Operating Temperature (Celsius) UOMDegree
Stud Diameter (Imperial)0.138
Terminal TypeFork
Maximum Conductor Size (Imperial)18 AWG
Stud Diameter (Imperial) UOMin
Minimum Conductor Size (Metric)0.326 mm²
Overall Width (Imperial) UOMin
Packaging250 per bulk box
Maximum Operating Temperature (Celsius)105.0
Insulation MaterialHeat Shrink
Barrel Length (Imperial)0.25 Inch
Overall Width (Imperial)0.25
Stud Diameter (Metric)3.505
Clearance (C)0.15 Inch
Maximum Operating Temperature (Fahrenheit)221.0
Fork TypeLocking
Overall Length (Imperial) UOMin
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Units per Case250.0
