3M Products & Supplies

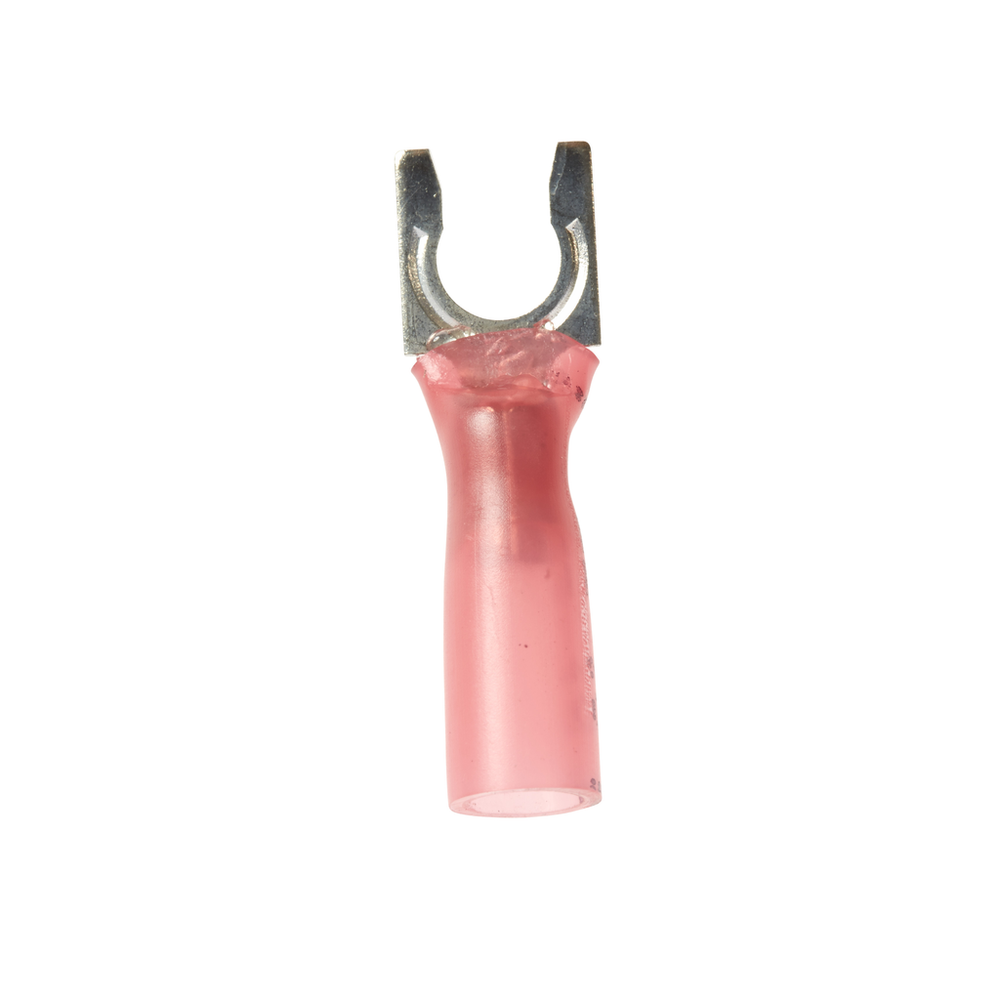

3M™ Scotchlok™ Locking Fork, Heat Shrink Brazed Seam MH18-10FLK, Stud Size 10, 250/Case - 7100164284

Sold As: 250-Pack
SKU: 7100164284
MPN: 7100164284
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007063537
3M ID: 80610530364
5 Digit UPC: 6353
$122.69 ($0.49 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Color-Coded Heat Shrink Locking Fork terminal has a spring-like tongue to securely lock around the stud. The brazed-seam barrel is covered by an adhesive-lined polyolefin tubing to offer moisture-seal protection. It withstands a maximum temperature of 221 degrees F (105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Spring-like tongue firmly fits around the stud
  • When crimped and shrunk, pre-insulated adhesive-lined polyolefin offers seal resistance to water and salt
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Electrolytic copper construction offers good conductivity
  • Withstands a maximum temperature of 221 degrees F (105 degrees C)

Downloads

Specifications

Country of OriginUnited States
Barrel Length (Imperial)0.25 Inch
Insulation MaterialHeat Shrink
Overall Length (Imperial)1.0
Maximum Operating Temperature (Celsius)105.0
Overall Length (Imperial) UOMin
Maximum Operating Temperature (Fahrenheit)221.0
Minimum Conductor Size (Imperial)22 AWG
Overall Width (Imperial)0.32
Terminal TypeFork
Stud Diameter (Metric) UOMmm
Packaging250 per bulk box
Stud Diameter (Metric)4.826
Stud Diameter (Imperial)0.19
Terminal StyleLocking
Maximum Operating Temperature (Fahrenheit) UOMDegree
Maximum Conductor Size (Metric).0823 mm²
Barrel Inside Diameter0.07 Inch
Units per Case250.0
Dimension E0.76 Inch
Fork TypeLocking
Maximum Operating Temperature (Celsius) UOMDegree
Barrel StyleBrazed
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Overall Width (Imperial) UOMin
Clearance (C)0.15 Inch
Minimum Conductor Size (Metric)0.326 mm²
Maximum Conductor Size (Imperial)18 AWG
Stud Diameter (Imperial) UOMin
Stud Size#10
