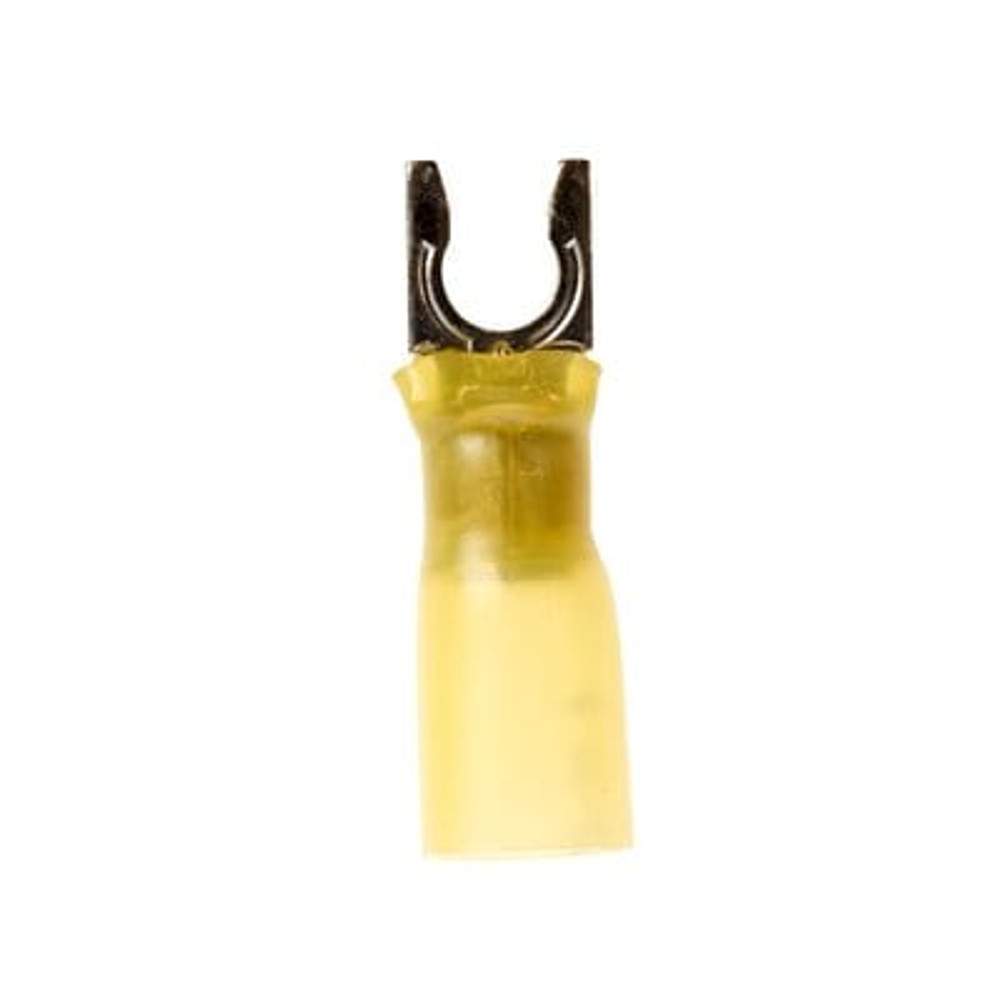

3M™ Scotchlok™ Locking Fork, Heat Shrink Brazed Seam MH10-10FLK, Stud Size 10, 250/Case - 7100164268

Sold As: 250-Pack
SKU: 7100164268
MPN: 7100164268
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007063087
3M ID: 80610456412
5 Digit UPC: 6308
$198.53 ($0.79 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Color-Coded Heat Shrink Locking Fork terminal has a spring-like tongue to securely lock around the stud. The brazed-seam barrel is covered by an adhesive-lined polyolefin tubing to offer moisture-seal protection. It withstands a maximum temperature of 221 degrees F (105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Spring-like tongue firmly fits around the stud
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Withstands a maximum temperature of 221 degrees F (105 degrees C)
  • When crimped and shrunk, pre-insulated adhesive-lined polyolefin offers seal resistance to water and salt
  • Electrolytic copper construction offers good conductivity
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Barrel Inside Diameter0.135 Inch
Overall Length (Imperial) UOMin
Terminal StyleLocking
Overall Width (Imperial)0.32
Barrel StyleBrazed
Dimension E0.8 Inch
Maximum Conductor Size (Metric)5.26 mm²
Minimum Conductor Size (Imperial)12 AWG
Barrel Length (Imperial)0.25 Inch
Stud Size#10
Maximum Operating Temperature (Fahrenheit) UOMDegree
Maximum Conductor Size (Imperial)10 AWG
Insulation MaterialHeat Shrink
Stud Diameter (Imperial)0.19
Overall Width (Imperial) UOMin
Units per Case250.0
Terminal TypeFork
Stud Diameter (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit)221.0
Minimum Conductor Size (Metric)3.31 mm²
Stud Diameter (Imperial) UOMin
Clearance (C)0.16 Inch
Packaging250 per bulk box
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Fork TypeLocking
Stud Diameter (Metric)4.826
Overall Length (Imperial)1.0
Maximum Operating Temperature (Celsius) UOMDegree
Maximum Operating Temperature (Celsius)105.0
