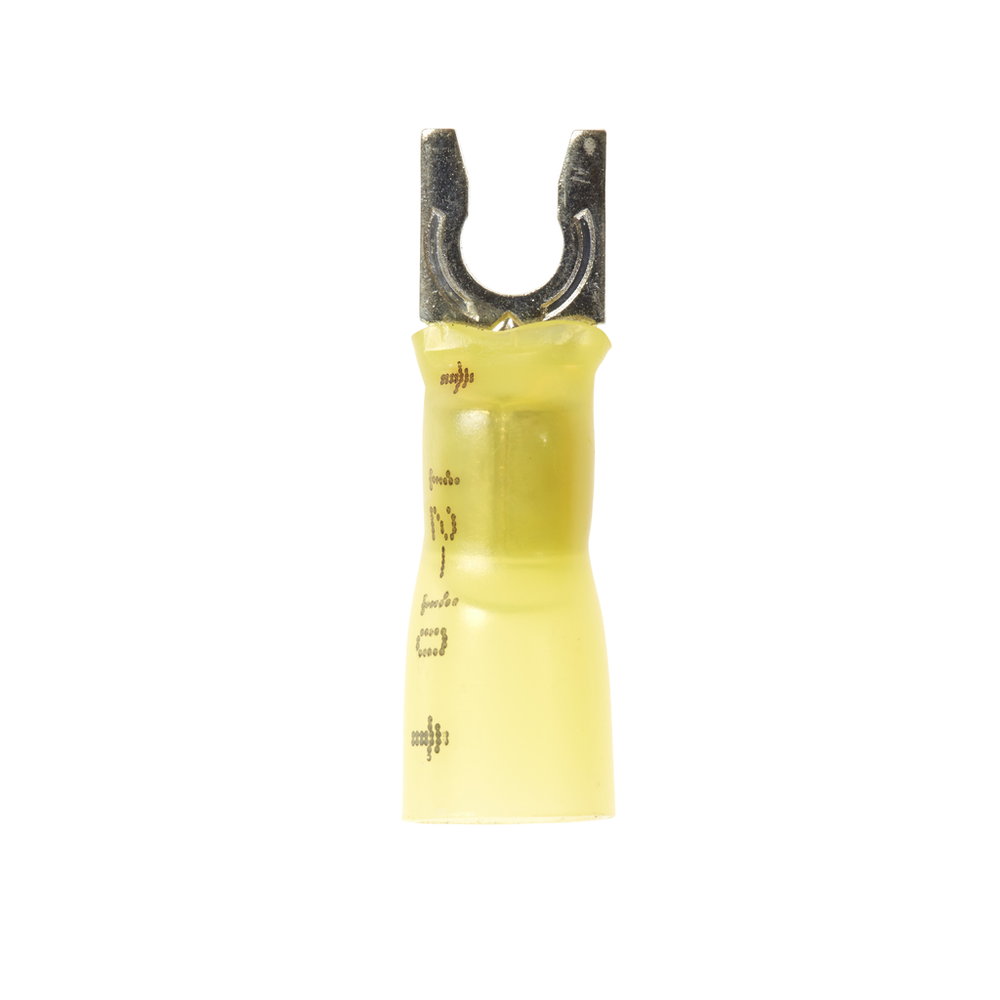

3M™ Scotchlok™ Locking Fork, Heat Shrink Brazed Seam MH10-8FLK, Stud Size 8, 250/Case - 7100164287

Sold As: 250-Pack
SKU: 7100164287
MPN: 7100164287
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007063582
3M ID: 80610530414
5 Digit UPC: 6358
$398.93 ($1.60 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Color-Coded Heat Shrink Locking Fork terminal has a spring-like tongue to securely lock around the stud. The brazed-seam barrel is covered by an adhesive-lined polyolefin tubing to offer moisture-seal protection. It withstands a maximum temperature of 221 degrees F (105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • When crimped and shrunk, pre-insulated adhesive-lined polyolefin offers seal resistance to water and salt
  • Withstands a maximum temperature of 221 degrees F (105 degrees C)
  • Electrolytic copper construction offers good conductivity
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Spring-like tongue firmly fits around the stud
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Insulation MaterialHeat Shrink
Maximum Operating Temperature (Fahrenheit)221.0
Stud Diameter (Imperial) UOMin
Fork TypeLocking
Maximum Conductor Size (Imperial)10 AWG
Barrel Inside Diameter0.135 Inch
Maximum Operating Temperature (Fahrenheit) UOMDegree
Barrel StyleBrazed
Stud Size#8
Minimum Conductor Size (Metric)3.31 mm²
Overall Length (Imperial)1.0
Terminal TypeFork
Terminal StyleLocking
Maximum Operating Temperature (Celsius)105.0
Stud Diameter (Metric) UOMmm
Maximum Operating Temperature (Celsius) UOMDegree
Overall Length (Imperial) UOMin
Clearance (C)0.16 Inch
Units per Case250.0
Dimension E0.8 Inch
Minimum Conductor Size (Imperial)12 AWG
Stud Diameter (Metric)4.166
Overall Width (Imperial)0.32
Packaging250 per bulk box
Stud Diameter (Imperial)0.164
Overall Width (Imperial) UOMin
Barrel Length (Imperial)0.25 Inch
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Maximum Conductor Size (Metric)5.26 mm²
