3M Products & Supplies

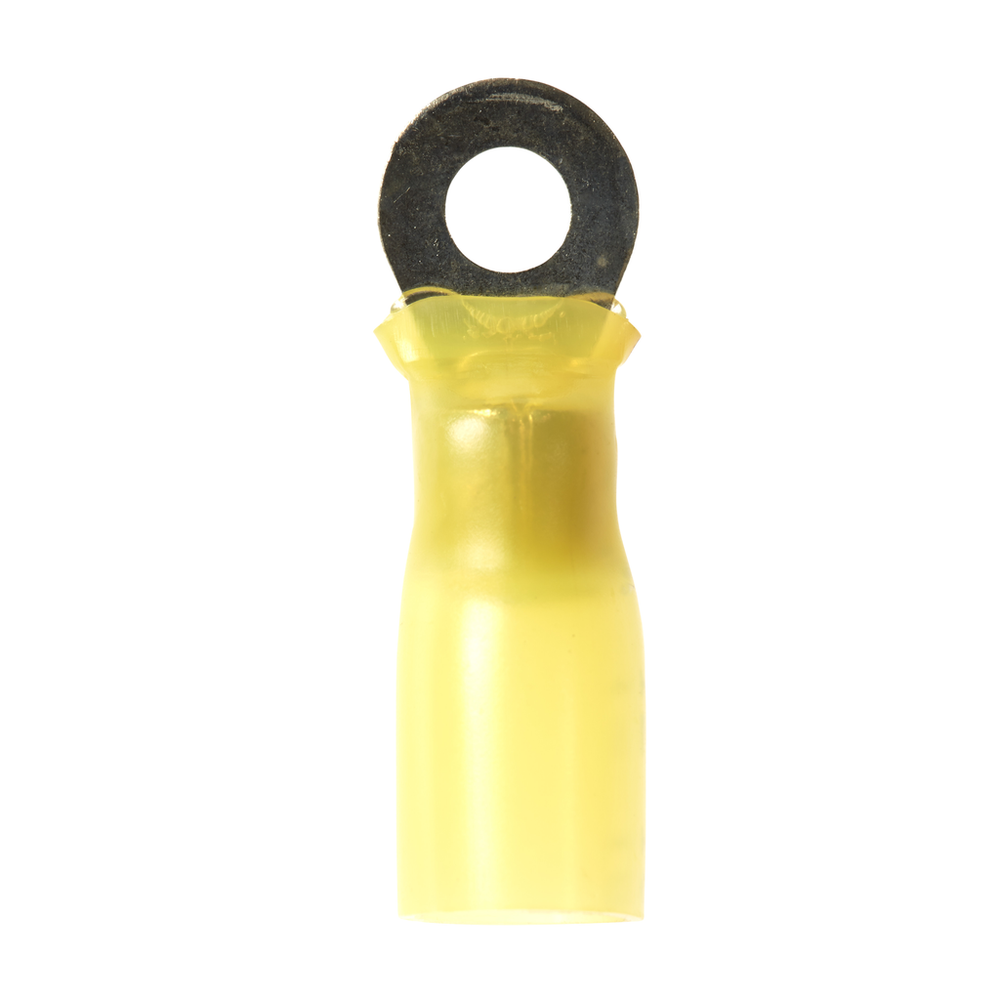

3M™ Scotchlok™ Ring Tongue, Heat Shrink Brazed Seam MH10-8RK, Stud Size 8, 250/Case - 7100164266

Sold As: 250-Pack
SKU: 7100164266
MPN: 7100164266
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007063032
3M ID: 80610456362
5 Digit UPC: 6303
$128.85 ($0.52 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Heat Shrink Brazed Seam Ring Tongue ensures an ideal fit and offers reliable performance. The brazed-seam barrel is covered by an adhesive-lined polyolefin tubing to offer moisture-seal protection. It withstands temperatures of 221 degrees F (105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Brazed-seam terminal uses yellow pre-insulated, heat shrink tubing and ensures a secure fit while offering reliable performance
  • When crimped and shrunk, pre-insulated adhesive-lined polyolefin offers seal resistance to water and salt
  • Standard-style ring tongue fits around the stud
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a maximum temperature of 221 degrees F (105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Overall Width (Imperial) UOMin
Minimum Conductor Size (Metric)3.31 mm²
Connection Width (Metric) UOMmm
Minimum Conductor Size (Imperial)12 AWG
Maximum Conductor Size (Metric)5.26
Connection Width (Metric)4.166
Maximum Operating Temperature (Celsius) UOMDegree
Overall Width (Imperial)0.38
Overall Length (Imperial)1.1
Overall Length (Imperial) UOMin
Insulation MaterialHeat Shrink
Connection Width (Imperial) UOMin
Connection Width (Imperial)0.164
Maximum Operating Temperature (Celsius)105.0
Maximum Conductor Size (Imperial)10 AWG
Terminal TypeRing
Connection TypeCrimp
