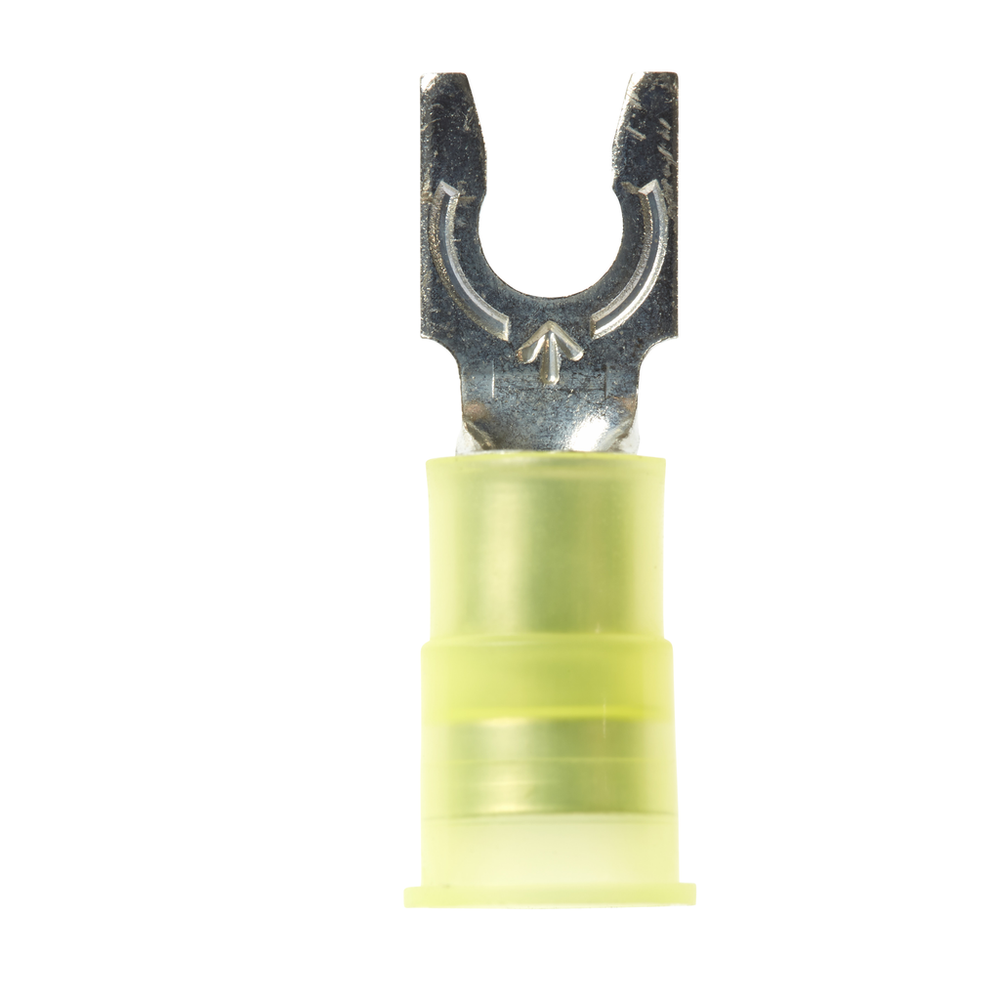

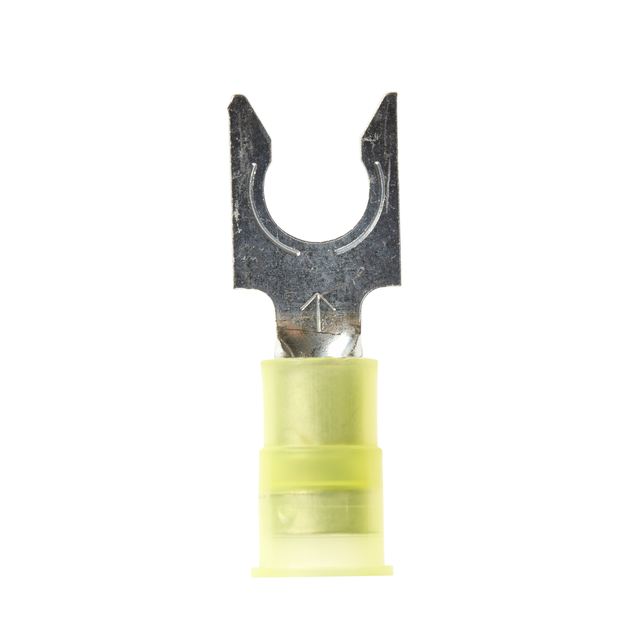

3M™ Scotchlok™ Locking Fork Nylon Insulated, 50/bottle, MNG10-8FLX, spring-like tongue firmly fits around the stud, 500/Case - 7010398184

Sold As: 50-Pack
SKU: 7010398184
MPN: 7010398184
Stock Item: Stock items typically ship within 2-3 business days
UPC: 10051128587956
3M ID: 80611464415
5 Digit UPC: 58795
$61.81 ($1.24 / Count)
Hurry up! Current stock:

Product Description

3M™ Locking Fork Terminal has a spring-like tongue to securely lock around the stud. The terminal has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Spring-like tongue firmly fits around the stud
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance

Specifications

Country of OriginUnited States
Stud Diameter (Imperial) UOMin
Minimum Conductor Size (Metric)3.31 mm²
Fork TypeLocking
Maximum Insulation Outer Diameter (Imperial) UOMin
Maximum Conductor Size (Metric)5.26 mm²
Stud Diameter (Imperial)0.164
Overall Width (Imperial) UOMin
UL File NumberE23438
Maximum Operating Temperature (Celsius) UOMDegree
Overall Length (Imperial) UOMin
Packaging50 per bottle
Maximum Operating Temperature (Fahrenheit) UOMDegree
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Dimension E0.83 Inch
Overall Width (Imperial)0.32
Stud Diameter (Metric)4.166
Units per Case500.0
Barrel StyleButted
Maximum Lock Width0.35 Inch
Insulation MaterialNylon with Insulation Grip
Maximum Operating Temperature (Fahrenheit)221.0
Overall Length (Imperial)1.03
Minimum Conductor Size (Imperial)12 AWG
Maximum Conductor Size (Imperial)10 AWG
Stud Diameter (Metric) UOMmm
Barrel Inside Diameter0.135 Inch
Maximum Insulation Outer Diameter (Imperial)0.25
Clearance (C)0.28 Inch
Terminal StyleLocking
Stud Size#8
Maximum Operating Temperature (Celsius)105.0
