3M Products & Supplies

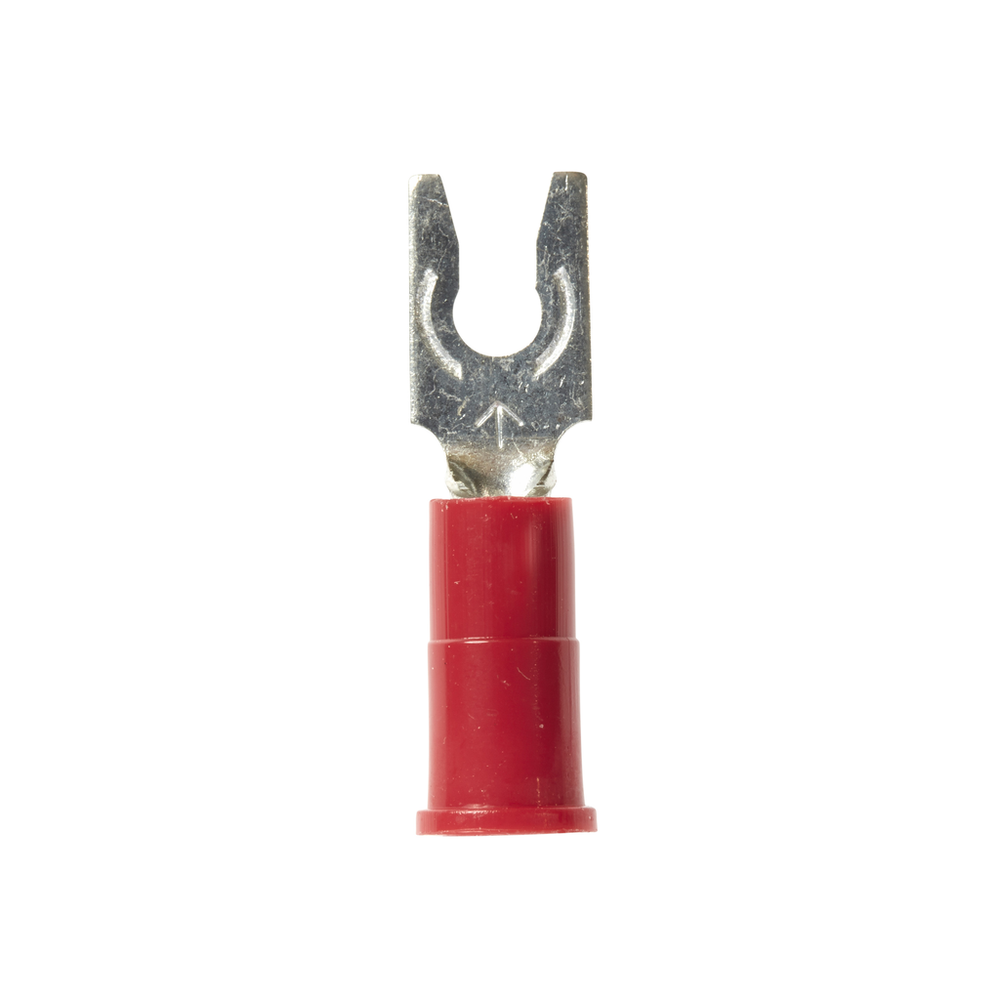

3M™ Scotchlok™ Locking Fork Vinyl Insulated, 100/bottle, MV18-4FLX, spring-like tongue firmly fits around the stud, 500/Case - 7100165271

Sold As: 500-Pack
SKU: 7100165271
MPN: 7100165271
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 10051128588496
3M ID: 80611464951
5 Digit UPC: 58849
$386.59 ($0.77 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Color-Coded Locking Fork is a lug connection terminal that has a spring-like tongue to securely lock around the stud. The terminal has a vinyl-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Electrolytic copper construction offers good conductivity
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Spring-like tongue firmly fits around the stud
  • Vinyl-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires

Downloads

Specifications

Country of OriginUnited States
Maximum Operating Temperature (Celsius) UOMDegree
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Terminal TypeFork
Maximum Conductor Size (Imperial)18 AWG
Maximum Conductor Size (Metric).0823 mm²
UL File NumberE23438
Units per Case500.0
Dimension E0.70 Inch
Maximum Insulation Outer Diameter (Imperial)0.145
Insulation MaterialVinyl
Overall Width (Imperial)0.25
Packaging100 per bottle
Maximum Operating Temperature (Fahrenheit)221.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Clearance (C)0.25 Inch
Minimum Conductor Size (Imperial)22 AWG
Fork TypeLocking
Minimum Conductor Size (Metric)0.326 mm²
Overall Length (Imperial)0.88
Terminal StyleLocking
Overall Width (Imperial) UOMin
Maximum Operating Temperature (Celsius)105.0
Barrel Inside Diameter0.070 Inch
Stud Size#4
Maximum Lock Width0.27 Inch
Overall Length (Imperial) UOMin
Maximum Insulation Outer Diameter (Imperial) UOMin
Barrel StyleBrazed
