3M™ Scotchlok™ Multi-Stack Disconnect, Nylon Insulated w/Insulation Grip MNG14-250DMFK-A, 1000/Case - 7000133194

Sold As: 1000-Pack
SKU: 7000133194
MPN: 7000133194
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051138980672
3M ID: 80611444128
5 Digit UPC: 98067
$794.13 ($0.79 / Count)
Hurry up! Current stock:

Product Description

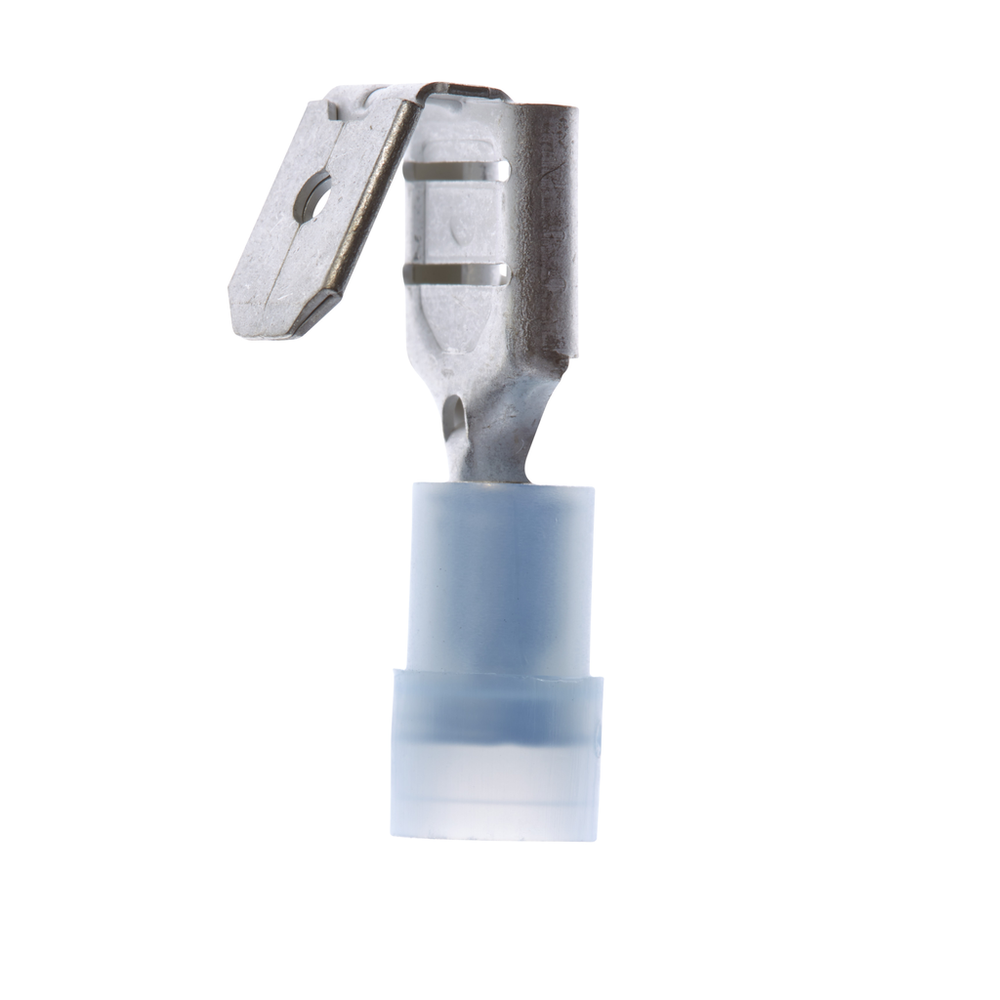

3M™ Scotchlok™ Nylon Insulated with Insulation Grip Piggy-Back Disconnect terminal has a tongue portion with fingers that grip a male quick-slide and a tongue extension that is to be gripped by a female quick-slide. This is a multi-stack disconnect terminal with a nylon-insulated, butted-seam barrel. It has durable brass construction for good conductivity and a tin-plated finish for corrosion resistance.

Features

  • The tongue portion with fingers grip a male quick-slide and a tongue extension grips a female quick-slide
  • Nylon-insulated, butted-seam barrel with a funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Connects a male or female counterpart
  • Mates with 0.25-in wide male and female tab
  • Accommodates wire sizes 16 to 14 AWG
  • Made of durable brass for good conductivity and has corrosion-resistant tin plating
Spec Sheet



Downloads

Specifications

Country of OriginTaiwan
Packaging1000 per bulk box
Minimum Conductor Size (Metric)1.5 mm²
Mates with Female Width0.25 Inch
Maximum Recommended Voltage Rating820.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Terminal TypeDisconnect
Maximum Operating Temperature (Fahrenheit)221.0
Mates with Male Tab Width (W')0.25 Inch
Maximum Conductor Size (Metric)2.5 mm²
Conductor Sizes (Imperial)16 - 14 AWG
Maximum Operating Temperature (Celsius)105.0
Maximum Insulation Outer Diameter (Imperial) UOMin
Maximum Recommended Voltage Rating UOMV
Insulation ColorRed
Maximum Operating Temperature (Celsius) UOMDegree
Insulation MaterialNylon with Insulation Grip
Maximum Insulation Outer Diameter (Metric) UOMmm
Disconnect TypeMale
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Maximum Insulation Outer Diameter (Metric)3.7
Connection Width (Metric) UOMmm
Overall Length (Imperial)0.91
Units per Case1000.0
Connection Width (Imperial)0.25
Connection Width (Imperial) UOMin
Minimum Conductor Size (Imperial)16 AWG
Connection Width (Metric)6.35
Overall Length (Imperial) UOMin
Tab Width0.250
Maximum Insulation Outside Diameter0.145 in
Maximum Insulation Outer Diameter (Imperial)0.15
Barrel StyleInsulation Grip
Fastener OrientationMale-Female
Terminal StylePiggy-back
Maximum Conductor Size (Imperial)14 AWG
Pad Width0.25
