3M Products & Supplies

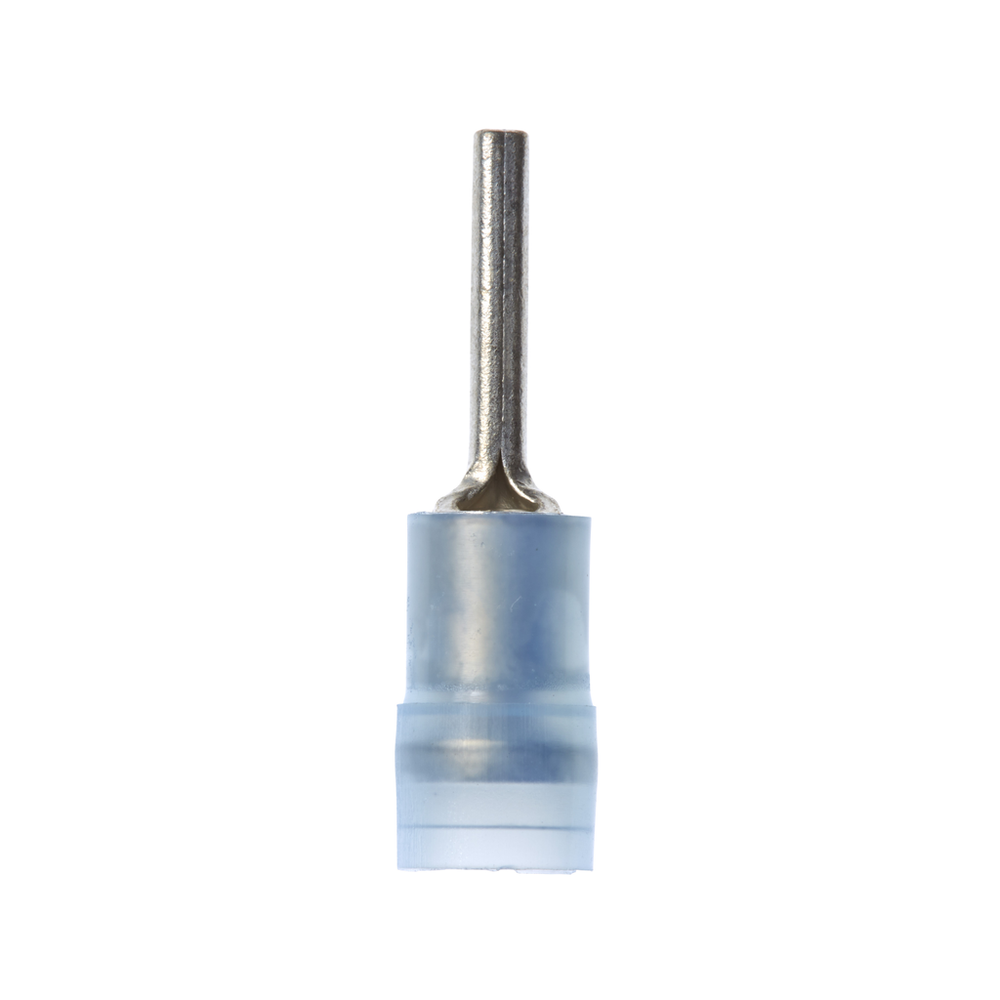

3M™ Scotchlok™ Pin, Nylon Insulated w/Insulation Grip MNG14-47PK-A, 1000/Case - 7100165198

Sold As: 1000-Pack
SKU: 7100165198
MPN: 7100165198
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051138981662
3M ID: 80611445117
5 Digit UPC: 98166
$776.14 ($0.78 / Count)
Hurry up! Current stock:

Product Description

3M™ Pin Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Provides quick connection for set screws or clamps that are used to make electrical contact
Spec Sheet



Downloads

Specifications

Country of OriginTaiwan
Connection Width (Imperial)0.075
Maximum Insulation Outer Diameter (Imperial) UOMin
Connection Width (Imperial) UOMin
Pin Length (PL)0.47 Inch
Minimum Conductor Size (Imperial)16 AWG
Maximum Insulation Outer Diameter (Imperial)0.2
Packaging1000 per bulk box
Maximum Conductor Size (Metric)2.5 mm²
Barrel StyleInsulation Grip
Connection Width (Metric) UOMmm
Terminal TypePin
Maximum Conductor Size (Imperial)14 AWG
Units per Case1000.0
Minimum Conductor Size (Metric)1.5 mm²
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Insulation MaterialNylon
Overall Length (Imperial)0.9
Overall Length (Imperial) UOMin
Connection Width (Metric)1.905
