3M™ Scotchlok™ Pin Non-Insulated, 100/bottle, MU14-47PX-A, Max. Temp. 347 °F (175 °C) for bare terminals, 1000/Case - 7100184968

Sold As: 1000-Pack
SKU: 7100184968
MPN: 7100184968
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128574416
3M ID: 80611440415
5 Digit UPC: 57441
$286.17 ($0.29 / Count)
Hurry up! Current stock:

Product Description

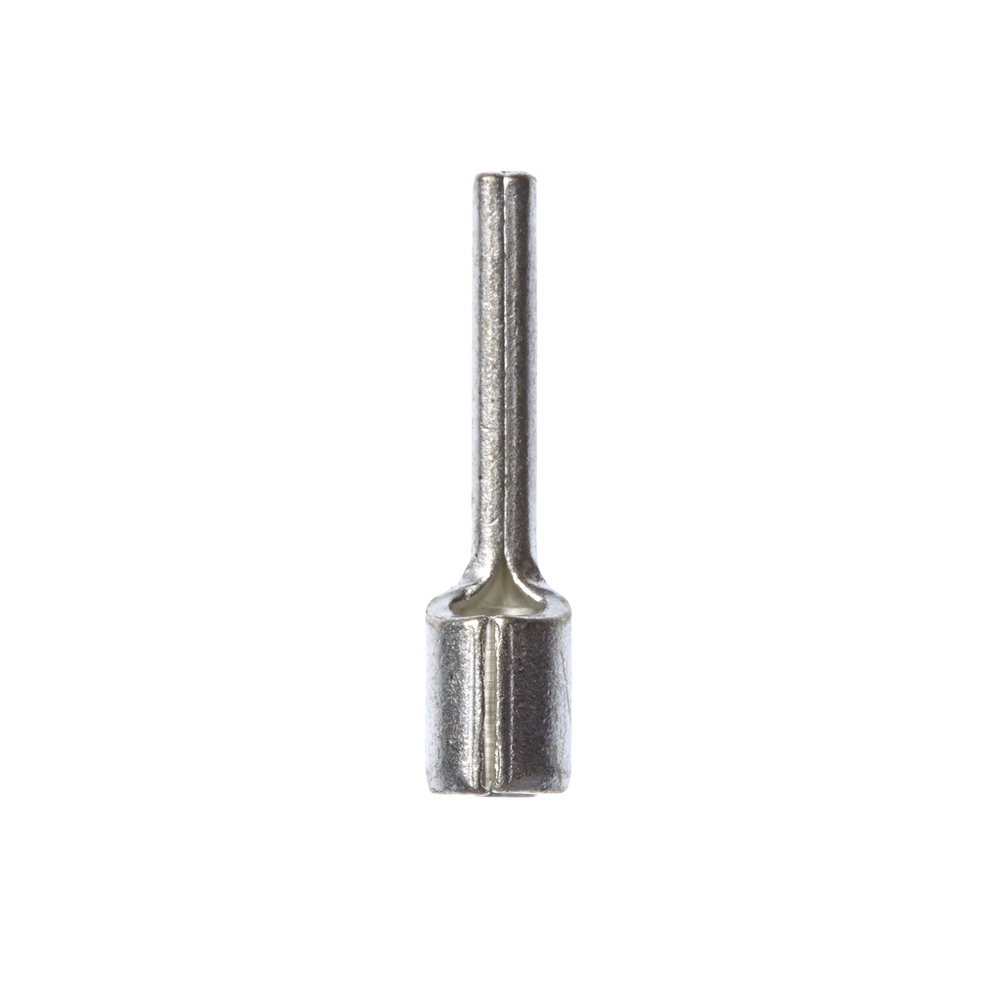

3M™ Scotchlok™ Non-Insulated Butted Seam Pin Terminal ensures an ideal fit while offering reliable and safe performance. The non-insulated, butted-seam barrel with a beveled mouth that guides the wire into position and withstands a maximum temperature of 347 degrees F (175 degrees C). Copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Non-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Made of copper for good conductivity and has tin plating for corrosion resistance
  • Provides quick connection for set screws or clamps that are used to make electrical contact
  • Beveled mouth offers easy insertion of wires

Downloads

Specifications

Country of OriginTaiwan
Overall Length (Imperial)0.73
Pin Length (PL)0.47 Inch
Insulation MaterialNon-insulated
Overall Length (Imperial) UOMin
Maximum Conductor Size (Metric)2.5 mm²
Minimum Conductor Size (Metric)1.5 mm²
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Terminal TypePin
Minimum Conductor Size (Imperial)16 AWG
Packaging1000 per bulk box
Maximum Conductor Size (Imperial)14 AWG
Barrel StyleButted
Units per Case1000.0
Connection Width (Imperial)0.08
Connection Width (Metric) UOMmm
Connection Width (Metric)2.032
Connection Width (Imperial) UOMin
