3M Products & Supplies

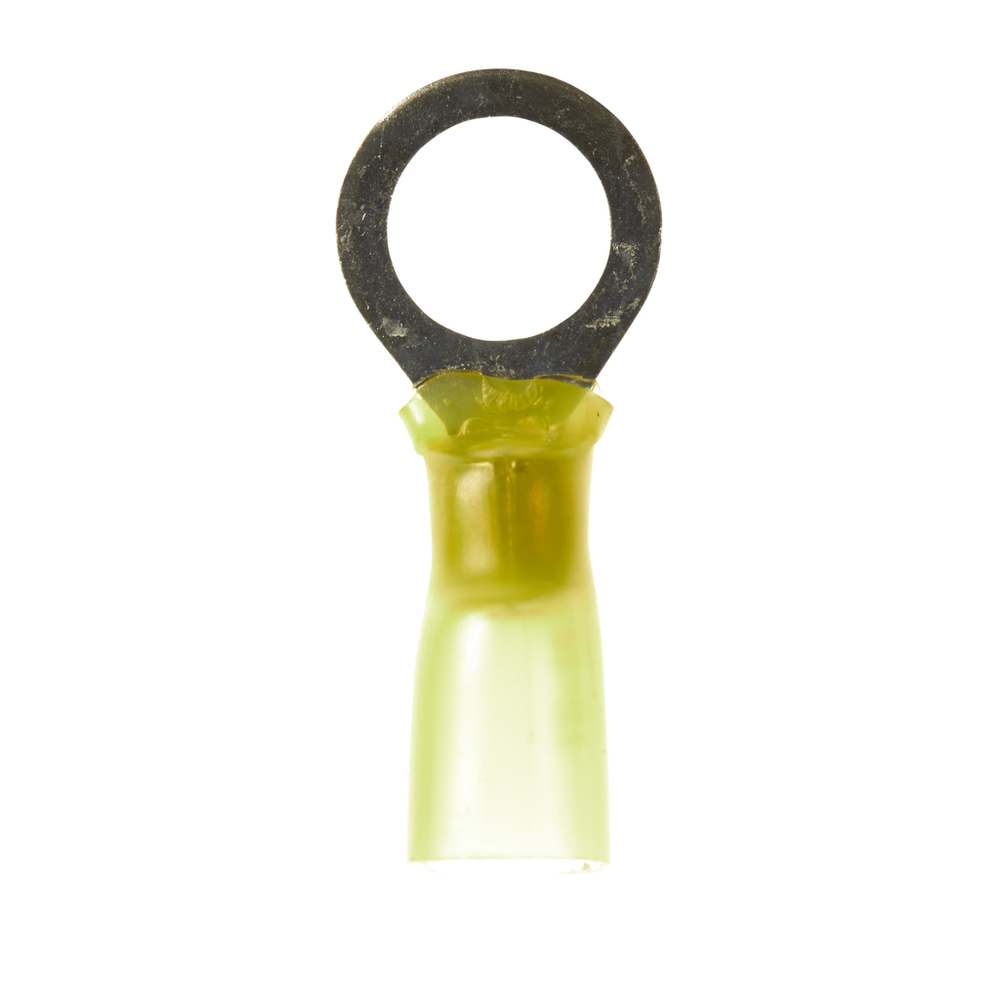

3M™ Scotchlok™ Ring Tongue, Heat Shrink Brazed Seam MH10-38RK, Stud Size 3/8, 250/Case - 7100164270

Sold As: 250-Pack
SKU: 7100164270
MPN: 7100164270
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007063131
3M ID: 80610456461
5 Digit UPC: 6313
$138.23 ($0.55 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Heat Shrink Brazed Seam Ring Tongue ensures an ideal fit and offers reliable performance. The brazed-seam barrel is covered by an adhesive-lined polyolefin tubing to offer moisture-seal protection. It withstands temperatures of 221 degrees F (105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • When crimped and shrunk, pre-insulated adhesive-lined polyolefin offers seal resistance to water and salt
  • Brazed-seam terminal uses yellow pre-insulated, heat shrink tubing and ensures a secure fit while offering reliable performance
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Standard-style ring tongue fits around the stud
  • Withstands a maximum temperature of 221 degrees F (105 degrees C)
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Overall Length (Imperial)1.2
Connection Width (Imperial) UOMin
Maximum Conductor Size (Metric)5.26
Connection Width (Metric) UOMmm
Connection Width (Imperial)0.375
Connection TypeCrimp
Overall Width (Imperial) UOMin
Minimum Conductor Size (Imperial)12 AWG
Maximum Operating Temperature (Celsius)105.0
Connection Width (Metric)9.525
Maximum Conductor Size (Imperial)10 AWG
Minimum Conductor Size (Metric)3.31 mm²
Overall Length (Imperial) UOMin
Insulation MaterialHeat Shrink
Maximum Operating Temperature (Celsius) UOMDegree
Overall Width (Imperial)0.59
Terminal TypeRing
