3M Products & Supplies

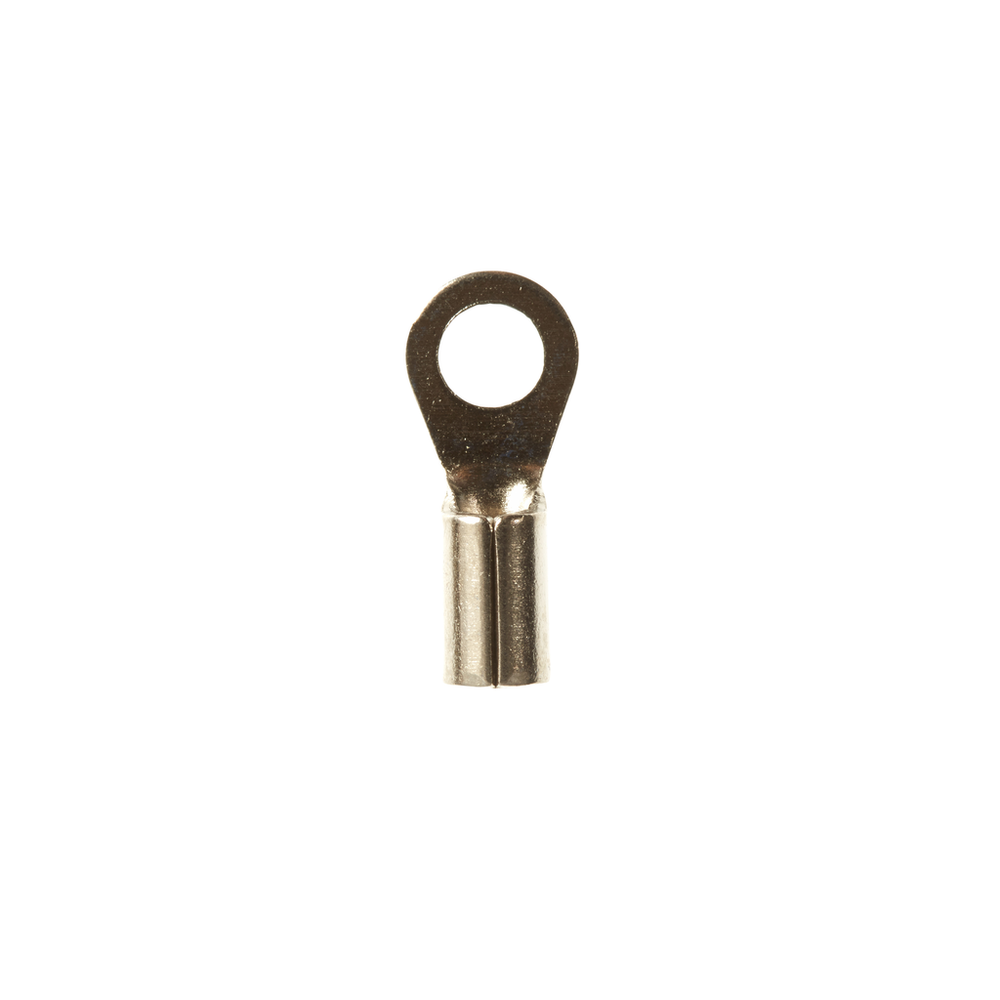

3M™ Scotchlok™ Ring Tongue, High Temperature Butted Seam MU14-6RHT/SK, 16-14 AWG, 1000/Case - 7100031027

Sold As: 1000-Pack
SKU: 7100031027
MPN: 7100031027
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007017585
3M ID: 80610046577
5 Digit UPC: 1758
$147.52 ($0.15 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Butted Seam High-Temperature Ring Tongue ensures an ideal fit while offering reliable and safe performance. The terminal has a non-insulated, butted-seam barrel and withstands a maximum temperature of 900 degrees F (482 degrees C). Steel construction offers durability and a nickel-plated finish resists corrosion.

Features

  • Beveled mouth offers easy insertion of wires
  • For use in ovens, motors, light fixtures and other applications
  • Withstands a maximum temperature of 900 degrees F (482 degrees C)
  • Non-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Made of durable steel for high-temperature applications and has nickel plating for corrosion resistance
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Insulation MaterialNon-insulated
Maximum Operating Temperature (Celsius) UOMDegree
Minimum Conductor Size (Metric)1.31 mm²
Overall Width (Imperial) UOMin
Terminal TypeRing
Connection Width (Imperial) UOMin
Connection Width (Imperial)0.138
Minimum Conductor Size (Imperial)16 AWG
Maximum Operating Temperature (Celsius)482.0
Connection Width (Metric) UOMmm
Connection Width (Metric)3.5
Overall Length (Imperial) UOMin
Overall Length (Imperial)0.6
Overall Width (Imperial)0.25
Maximum Conductor Size (Imperial)14 AWG
Maximum Conductor Size (Metric)2.08
