3M Products & Supplies

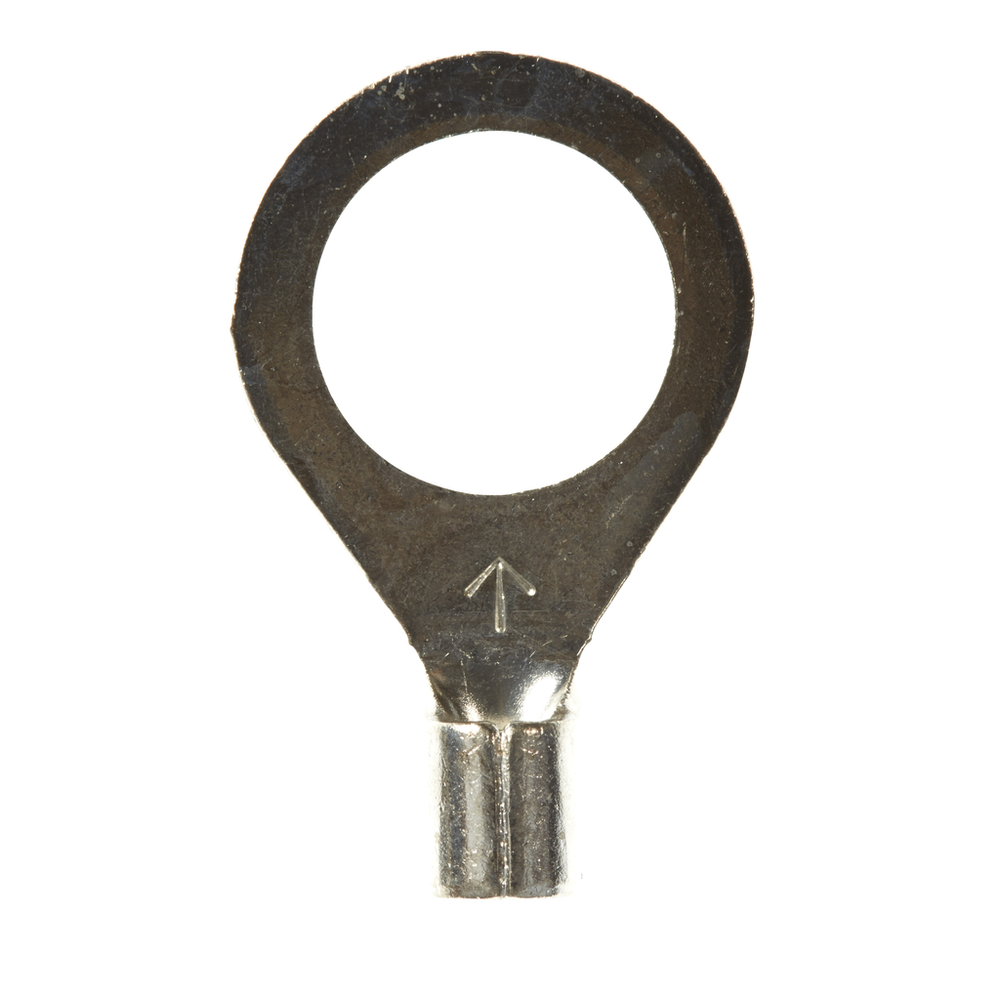

3M™ Scotchlok™ Ring Tongue, Non-Insulated Brazed Seam M10-12RK, Stud Size 1/2, 500/Case - 7100164083

Sold As: 500-Pack
SKU: 7100164083
MPN: 7100164083
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007019039
3M ID: 80610048375
5 Digit UPC: 1903
$337.12 ($0.67 / Count)
Hurry up! Current stock:

Product Description

This terminal has a wire range of 8 AWG and a stud size of 1/4. It comes in quantities of 25 per carton and 250 per case.

Features

  • Standard-style ring tongue fits around the stud
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Overall Length (Imperial) UOMin
Overall Width (Imperial)0.75
Maximum Conductor Size (Metric)5.26
Barrel StyleBrazed
Maximum Operating Temperature (Celsius)175.0
Insulation MaterialNon-insulated
Connection TypeCrimp
Minimum Conductor Size (Imperial)12 AWG
Maximum Conductor Size (Imperial)10 AWG
Connection Width (Metric) UOMmm
Ring TypeStandard
Overall Length (Imperial)1.19
Connection Width (Imperial) UOMin
Connection Width (Metric)12.7
Connection Width (Imperial)0.5
Barrel Length (Imperial)0.25 Inch
Minimum Conductor Size (Metric)3.31 mm²
Maximum Operating Temperature (Celsius) UOMDegree
Terminal StyleStandard
Terminal TypeRing
UL File NumberE23438
Overall Width (Imperial) UOMin
