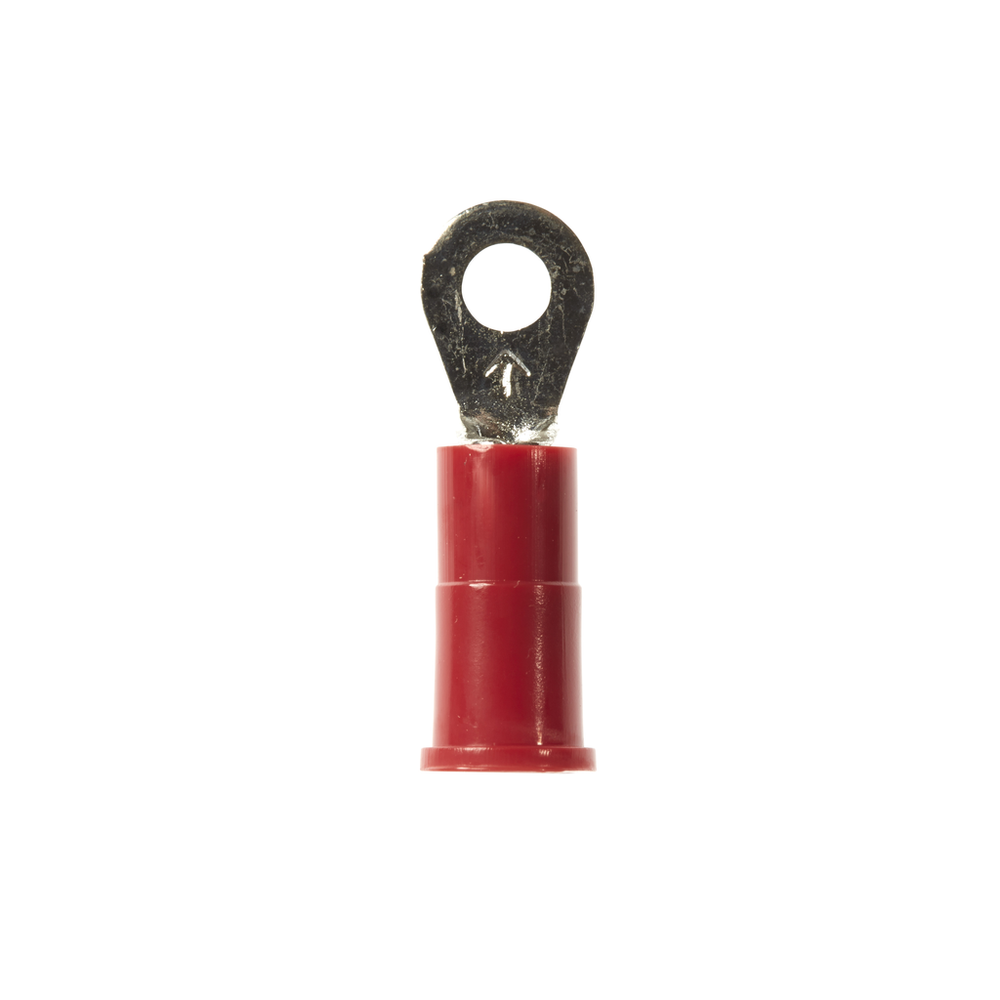

3M™ Scotchlok™ Ring Tongue, Vinyl Insulated Brazed Seam MV18-4R/SK, Stud Size 4, 1000/Case - 7100163924

Sold As: 1000-Pack
SKU: 7100163924
MPN: 7100163924
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007010463
3M ID: 80610035117
5 Digit UPC: 1046
$65.92 ($0.07 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Vinyl Insulated Brazed Seam Ring Tongue ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Standard-style ring tongue fits around the stud
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Minimum Conductor Size (Metric)0.326 mm²
Maximum Operating Temperature (Celsius) UOMDegree
Overall Width (Imperial) UOMin
Connection Width (Imperial) UOMin
Barrel StyleBrazed
UL File NumberE23438
Connection Width (Metric)2.845
Ring TypeStandard
Overall Width (Imperial)0.25
Solution forWireless Network: Infrastructure Accessories
Minimum Conductor Size (Imperial)22 AWG
Insulation MaterialVinyl
Overall Length (Imperial)0.8
Terminal TypeRing
Barrel Length (Imperial)0.25 Inch
Connection Width (Imperial)0.112
Maximum Conductor Size (Imperial)18 AWG
Overall Length (Imperial) UOMin
Maximum Conductor Size (Metric)0.823
Connection Width (Metric) UOMmm
Terminal StyleStandard
Maximum Operating Temperature (Celsius)105.0
