3M Products & Supplies

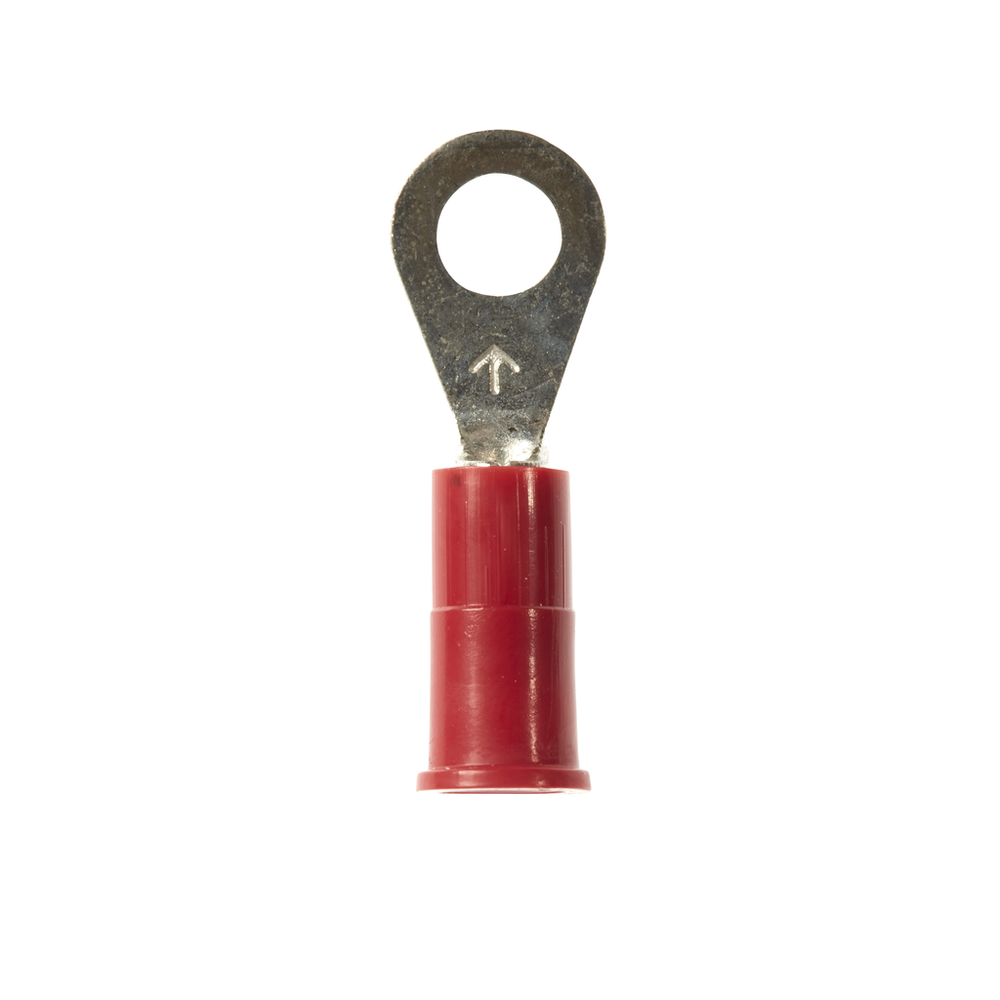

3M™ Scotchlok™ Ring Tongue, Vinyl Insulated Brazed Seam MV18-8R/LK, Stud Size 8, 1/Case - 7100040615

Sold As: 1000-Pack
SKU: 7100040615
MPN: 7100040615
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007010531
3M ID: 80610035190
5 Digit UPC: 1053
$404.52 ($0.40 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Vinyl Insulated Brazed Seam Ring Tongue ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Standard-style ring tongue fits around the stud
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Minimum Conductor Size (Metric)0.326 mm²
Connection Width (Imperial)0.164
Connection Width (Imperial) UOMin
Maximum Operating Temperature (Celsius) UOMDegree
Connection Width (Metric) UOMmm
Minimum Conductor Size (Imperial)22 AWG
Overall Width (Imperial) UOMin
Ring TypeStandard
Connection Width (Metric)4.166
Terminal StyleStandard
Insulation MaterialVinyl
Overall Length (Imperial)0.93
UL File NumberE23438
Overall Width (Imperial)0.31
Barrel Length (Imperial)0.25 Inch
Maximum Conductor Size (Metric)0.823
Barrel StyleBrazed
Terminal TypeRing
Maximum Operating Temperature (Celsius)105.0
Overall Length (Imperial) UOMin
Solution forWireless Network: Infrastructure Accessories
Maximum Conductor Size (Imperial)18 AWG
