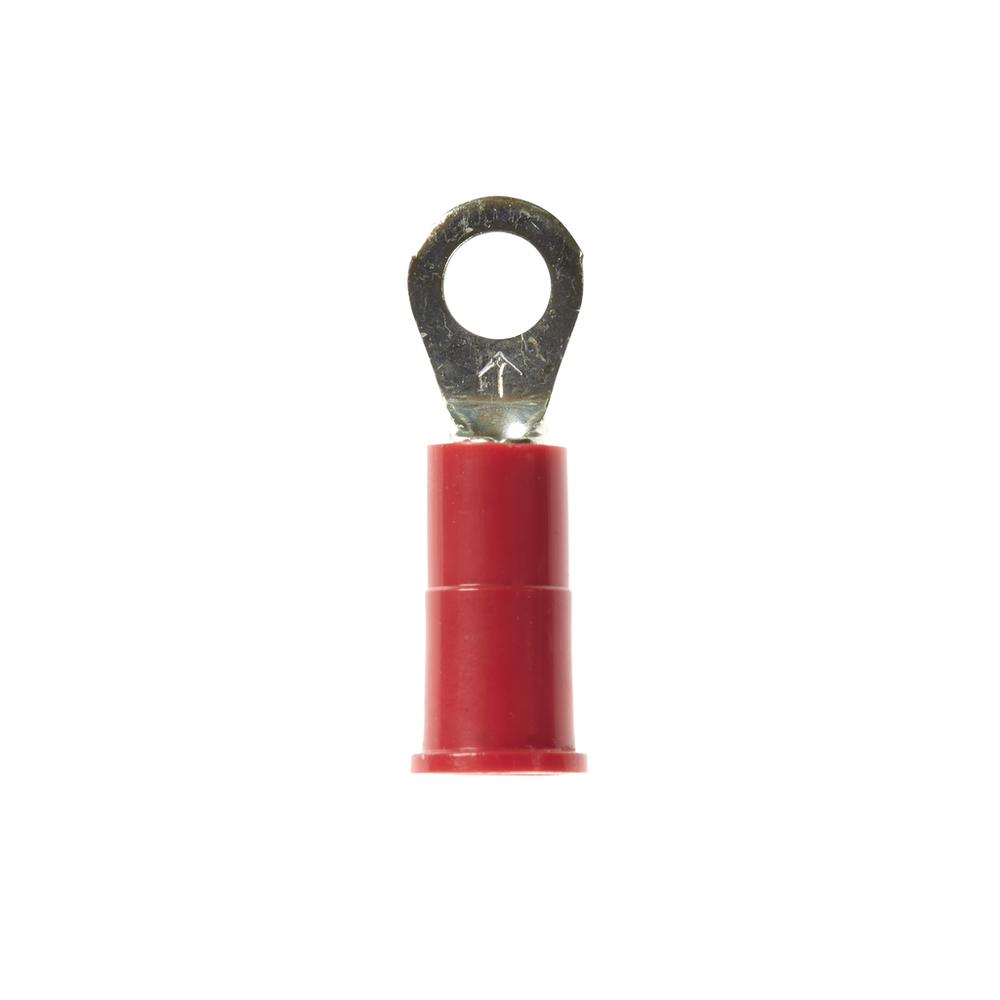

3M™ Scotchlok™ Ring Vinyl Insulated, 100/bottle, MVU18-6R/SX, standard-style ring tongue fits around the stud, 500/Case - 7010304200

Sold As: 100-Pack
SKU: 7010304200
MPN: 7010304200
Stock Item: Stock items typically ship within 2-3 business days
UPC: 10051128588144
3M ID: 80611464605
5 Digit UPC: 58814
$31.61 ($0.32 / Count)
Hurry up! Current stock:

Product Description

3M™ Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Standard-style ring tongue fits around the stud
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires

Specifications

Country of OriginUnited States
Terminal TypeRing
Insulation MaterialVinyl
Maximum Conductor Size (Imperial)18 AWG
Minimum Conductor Size (Metric)0.326 mm²
Overall Width (Imperial) UOMin
Connection TypeCrimp
Overall Length (Imperial)0.8
Overall Length (Imperial) UOMin
Maximum Operating Temperature (Celsius) UOMDegree
Overall Width (Imperial)0.25
Minimum Conductor Size (Imperial)22 AWG
Connection Width (Imperial) UOMin
Connection Width (Imperial)0.138
Maximum Conductor Size (Metric)0.823
Connection Width (Metric)3.5
Connection Width (Metric) UOMmm
Maximum Operating Temperature (Celsius)105.0
