3M Products & Supplies

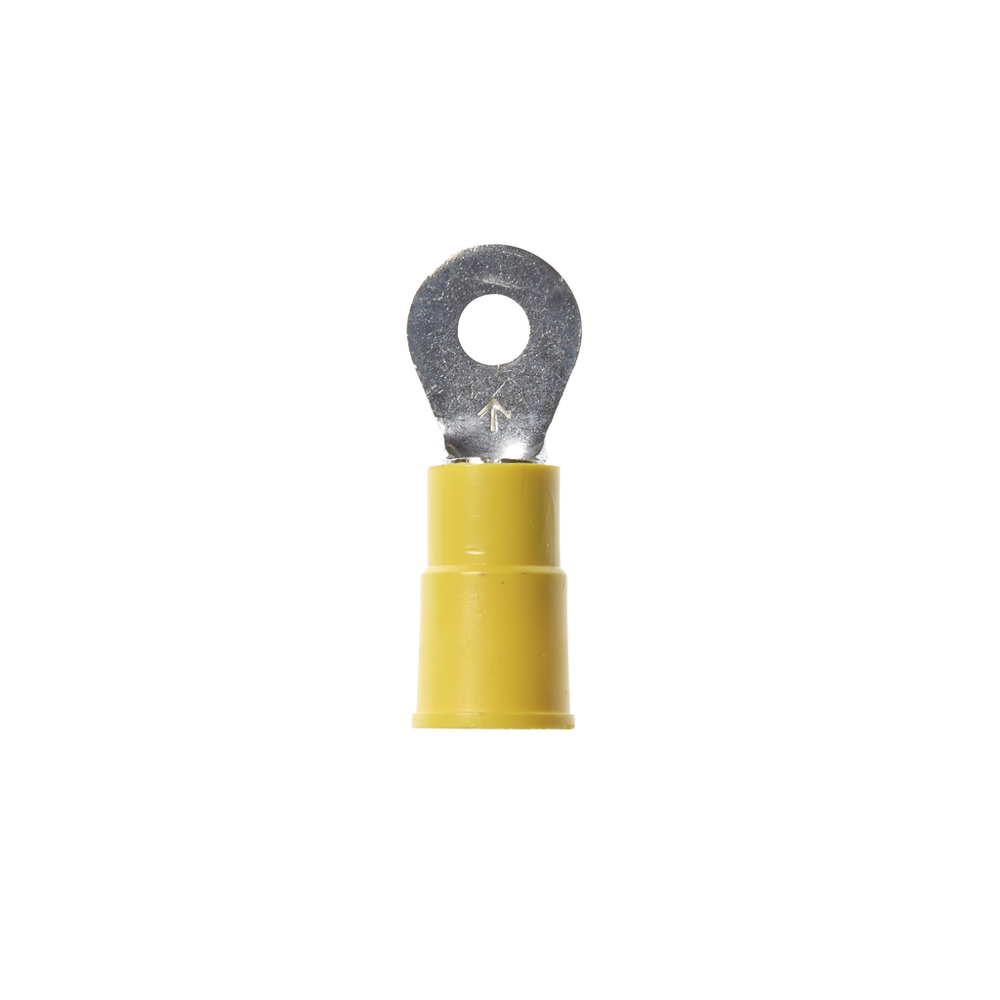

3M™ Scotchlok™ Ring Vinyl Insulated, 50/bottle, MV10-6RX, standard-style ring tongue fits around the stud, 500/Case - 7000133336

Sold As: 50-Pack
SKU: 7000133336
MPN: 7000133336
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128587560
3M ID: 80611464027
5 Digit UPC: 58756
$48.70 ($0.97 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Vinyl Insulated Brazed Seam Ring Tongue ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Standard-style ring tongue fits around the stud
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Maximum Operating Temperature (Celsius) UOMDegree
Overall Width (Metric)9.65
Overall Width (Metric) UOMmm
Maximum Conductor Size (Imperial)10 AWG
Barrel StyleBrazed
Minimum Conductor Size (Metric)3.31 mm²
Overall Width (Imperial)0.38
Insulation MaterialVinyl
Terminal TypeRing
Overall Length (Imperial)1.03
UL File NumberE23438
Overall Length (Metric) UOMmm
Ring TypeStandard
Terminal StyleStandard
Solution forWireless Network: Infrastructure Accessories
Product ColorYellow
Connection Width (Imperial) UOMin
Connection Width (Metric)3.5
Minimum Conductor Size (Imperial)12 AWG
Overall Length (Imperial) UOMin
Overall Length (Metric)26.16
Connection Width (Imperial)0.138
Maximum Operating Temperature (Celsius)105.0
Connection Width (Metric) UOMmm
Maximum Conductor Size (Metric)5.26
Overall Width (Imperial) UOMin
Barrel Length (Imperial)0.25 Inch
