3M Products & Supplies

3M™ Squeak Reduction Tape 5430, Transparent, 24 in x 36 yd, 7.4 mil, 1 Roll/Case - 7010334791

SKU: 7010334791
MPN: 7010334791
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051138959012
3M ID: 70006392750
5 Digit UPC: 95901
$5,631.28 each
Hurry up! Current stock:

Product Description

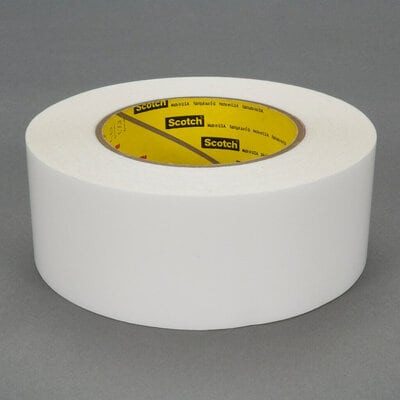

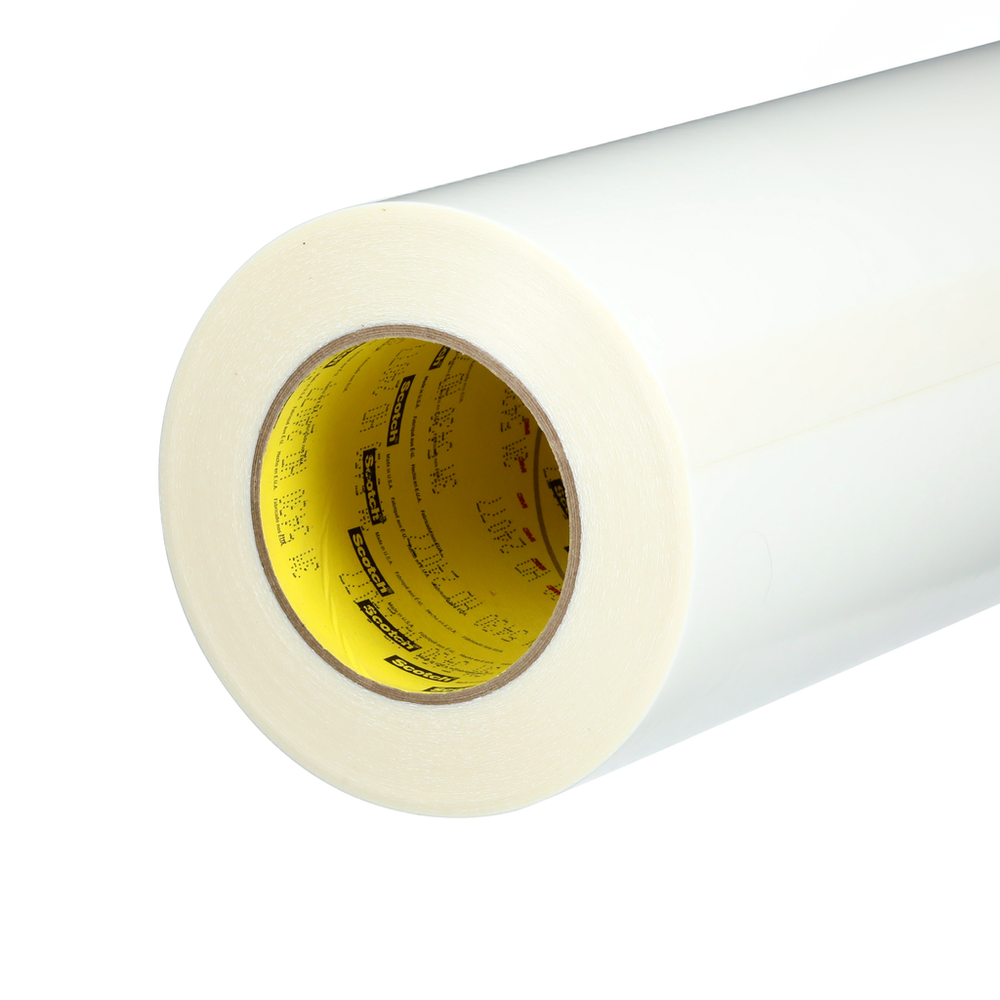

3M™ Squeak Reduction Tape 5430 is a transparent UHMW polyethylene film tape with an acrylic adhesive. It is commonly used to control squeaks and rattles due to vibration or wear of metal and plastic parts.

Features

  • High-tack acrylic adhesive provides strong initial bond for fast results and less down time
  • Liner ideal for fabrication and die cutting into various lengths and shapes
  • Low coefficient of friction for applications requiring slick surface
  • Excellent adhesion to many painted metal and plastic surfaces
  • UHMW polyethylene backing reduces and helps eliminate noise and vibration
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Adhesion Strength (Metric)82.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Backing (Carrier) Thickness (Metric) UOMmm
Overall Width (Metric)609.6
Total Tape Thickness without Liner (Metric)0.19
Overall Width (Metric) UOMmm
Adhesive TypeAcrylic
Backing (Carrier) Thickness (Imperial)5.1
Tensile Strength (Metric) UOMN/100mm
Total Tape Thickness without Liner (Imperial) UOMmil
Overall Length (Imperial)36.0
Overall Length (Imperial) UOMyd
Backing (Carrier) MaterialPolyethylene
Backing (Carrier) Thickness (Metric)0.13
Minimum Operating Temperature (Fahrenheit) UOMDegree
Tensile Strength (Imperial) UOMlb/in
Overall Length (Metric) UOMm
Overall Width (Imperial) UOMin
Product ColorTransparent
Total Tape Thickness without Liner (Metric) UOMmm
Overall Length (Metric)32.91
Adhesion Strength75.0
Total Tape Thickness without Liner (Imperial)7.4
IndustriesAerospace, Appliance, Automotive, Electronics, General Industrial, Metalworking, Military and Government, Specialty Vehicles, Transportation
Maximum Operating Temperature (Fahrenheit)225.0
Tensile Strength (Imperial)40.0
Tensile Strength (Metric)74.5
Elongation at Break420%
Minimum Operating Temperature (Fahrenheit)-30.0
Backing (Carrier) Thickness (Imperial) UOMmil
Adhesion Strength (Metric) UOMN/100mm
Overall Width (Imperial)24.0
Maximum Operating Temperature (Celsius)107.0
Maximum Operating Temperature (Celsius) UOMDegree
