3M Products & Supplies

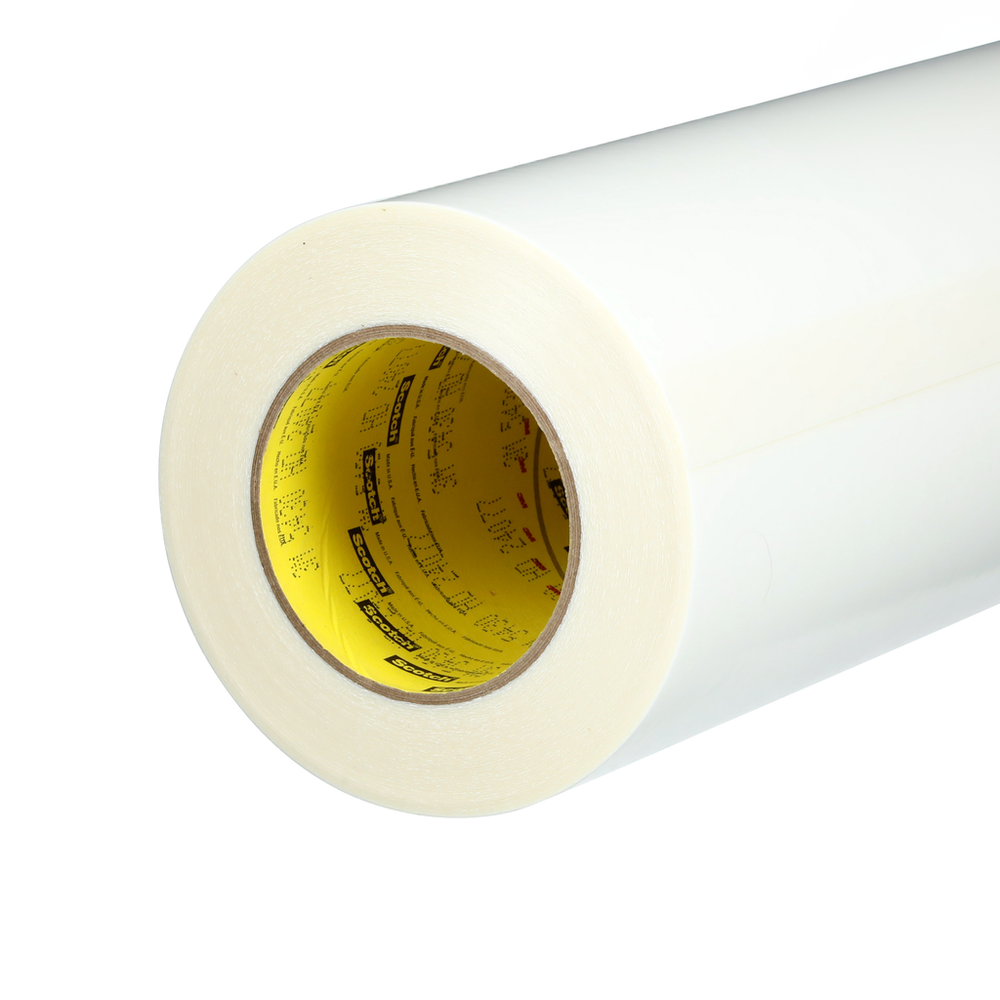

3M™ Squeak Reduction Tape 5430, Transparent, 12 in x 36 yd, 7.4 mil, 1 Roll/Case - 7010372799

Sold As: 2-Pack
SKU: 7010372799
MPN: 7010372799
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00021200301520
3M ID: 70006211208
5 Digit UPC: 30152
$5,631.28 ($2815.64 / Count)
Hurry up! Current stock:

Product Description

3M™ Squeak Reduction Tape 5430 is a transparent UHMW polyethylene film tape with an acrylic adhesive. It is commonly used to control squeaks and rattles due to vibration or wear of metal and plastic parts.

Features

  • UHMW polyethylene backing reduces and helps eliminate noise and vibration
  • Low coefficient of friction for applications requiring slick surface
  • Excellent adhesion to many painted metal and plastic surfaces
  • Liner ideal for fabrication and die cutting into various lengths and shapes
  • High-tack acrylic adhesive provides strong initial bond for fast results and less down time
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Overall Width (Imperial)12.0
Elongation at Break420%
Maximum Operating Temperature (Fahrenheit)225.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Metric) UOMm
Backing (Carrier) Thickness (Metric) UOMmm
Units per Case1.0
Overall Width (Imperial) UOMin
Tensile Strength (Metric) UOMN/100mm
Product ColorTransparent
Tensile Strength (Imperial)40.0
Adhesion Strength75.0
Overall Length (Imperial)36.0
Maximum Operating Temperature (Celsius)107.0
Adhesion Strength (Metric) UOMN/100mm
Minimum Operating Temperature (Fahrenheit) UOMDegree
Adhesion Strength (Metric)82.0
Overall Width (Metric) UOMmm
Total Tape Thickness without Liner (Imperial) UOMmil
Tensile Strength (Metric)74.5
Tensile Strength (Imperial) UOMlb/in
IndustriesAerospace, Appliance, Automotive, Electronics, General Industrial, Metalworking, Military and Government, Specialty Vehicles, Transportation
Adhesive TypeAcrylic
Backing (Carrier) Thickness (Imperial) UOMmil
Overall Length (Imperial) UOMyd
Total Tape Thickness without Liner (Imperial)7.4
Maximum Operating Temperature (Celsius) UOMDegree
Backing (Carrier) MaterialPolyethylene
Total Tape Thickness without Liner (Metric)0.19
Minimum Operating Temperature (Fahrenheit)-30.0
Backing (Carrier) Thickness (Imperial)5.1
Overall Length (Metric)32.91
Overall Width (Metric)304.8
Total Tape Thickness without Liner (Metric) UOMmm
Units per Case UOMRoll
Backing (Carrier) Thickness (Metric)0.13
