3M Products & Supplies

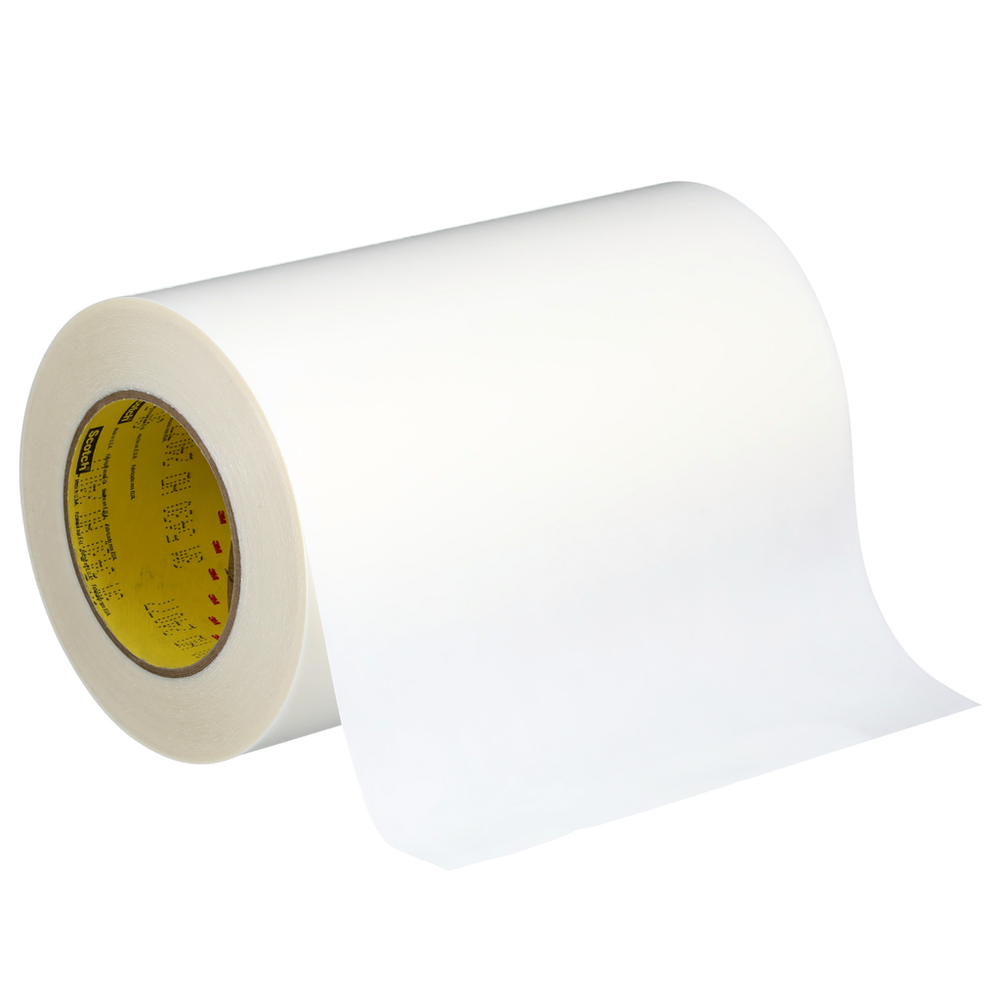

3M™ Squeak Reduction Tape 5430, Transparent, 8 in x 36 yd, 7.4 mil, 1 Roll/Case - 7010374272

SKU: 7010374272
MPN: 7010374272
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051138945718
3M ID: 70006380268
5 Digit UPC: 94571
$1,877.10 each
Hurry up! Current stock:

Product Description

3M™ Squeak Reduction Tape 5430 is a transparent UHMW polyethylene film tape with an acrylic adhesive. It is commonly used to control squeaks and rattles due to vibration or wear of metal and plastic parts.

Features

  • Liner ideal for fabrication and die cutting into various lengths and shapes
  • Low coefficient of friction for applications requiring slick surface
  • UHMW polyethylene backing reduces and helps eliminate noise and vibration
  • High-tack acrylic adhesive provides strong initial bond for fast results and less down time
  • Excellent adhesion to many painted metal and plastic surfaces
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Backing (Carrier) Thickness (Metric)0.13
Minimum Operating Temperature (Fahrenheit)-30.0
Tensile Strength (Imperial) UOMlb/in
Overall Width (Imperial)8.0
Overall Width (Metric)203.2
Backing (Carrier) Thickness (Metric) UOMmm
Tensile Strength (Metric) UOMN/100mm
Maximum Operating Temperature (Fahrenheit)225.0
Units per Case1.0
Maximum Operating Temperature (Celsius)107.0
Adhesion Strength (Metric) UOMN/100mm
Adhesion Strength75.0
Total Tape Thickness without Liner (Metric) UOMmm
Backing (Carrier) MaterialPolyethylene
Total Tape Thickness without Liner (Imperial) UOMmil
Maximum Operating Temperature (Celsius) UOMDegree
Elongation at Break420%
Overall Length (Imperial)36.0
Overall Length (Imperial) UOMyd
Product ColorTransparent
Tensile Strength (Metric)74.5
Backing (Carrier) Thickness (Imperial)5.1
Overall Width (Metric) UOMmm
Adhesion Strength (Metric)82.0
Total Tape Thickness without Liner (Metric)0.19
Total Tape Thickness without Liner (Imperial)7.4
Adhesive TypeAcrylic
Overall Length (Metric)32.91
Tensile Strength (Imperial)40.0
Overall Width (Imperial) UOMin
IndustriesAerospace, Appliance, Automotive, Electronics, General Industrial, Metalworking, Military and Government, Specialty Vehicles, Transportation
Minimum Operating Temperature (Fahrenheit) UOMDegree
Backing (Carrier) Thickness (Imperial) UOMmil
Units per Case UOMRoll
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Metric) UOMm
