3M Products & Supplies

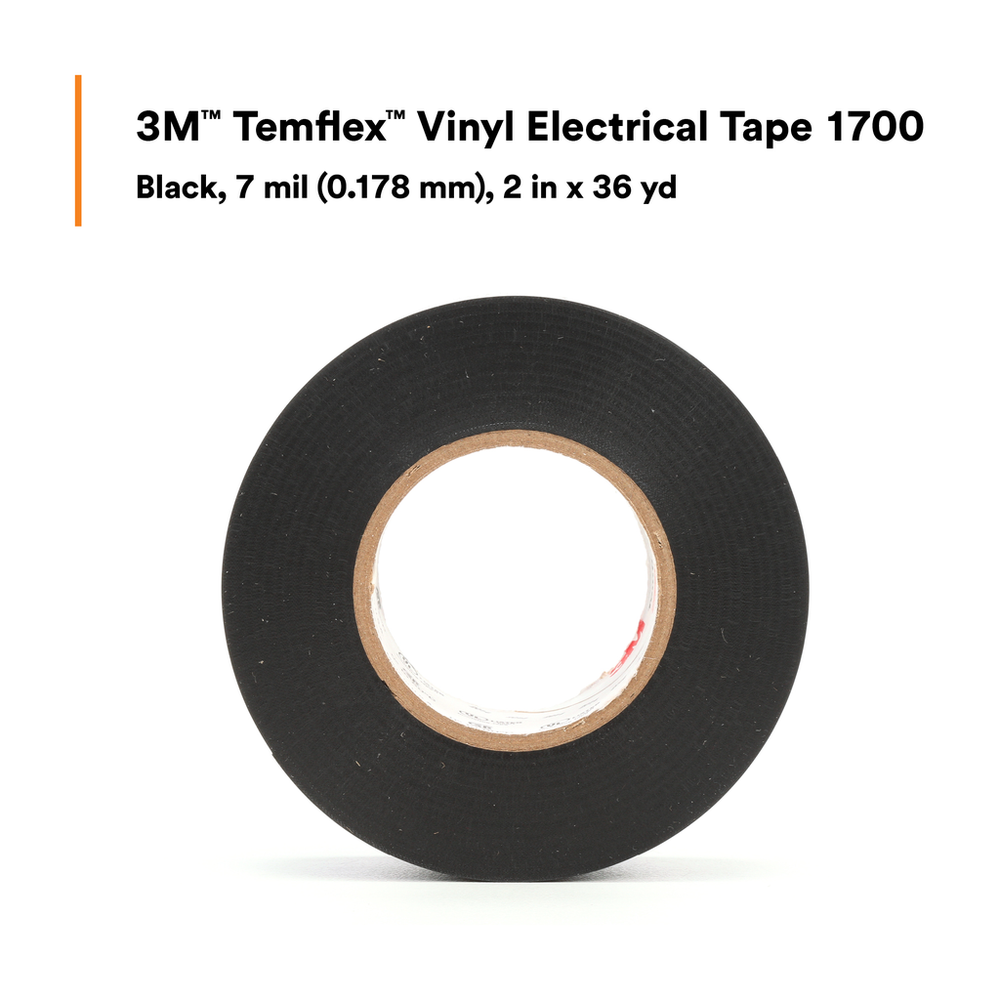

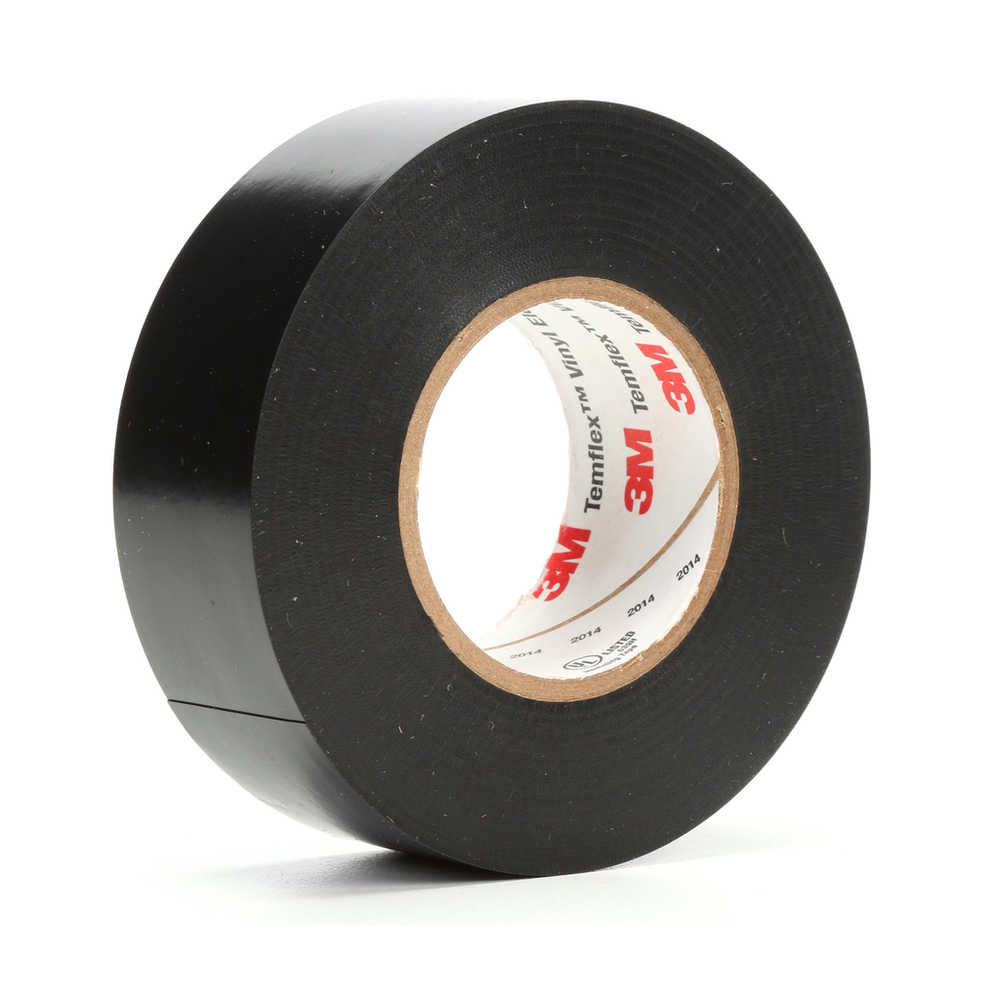

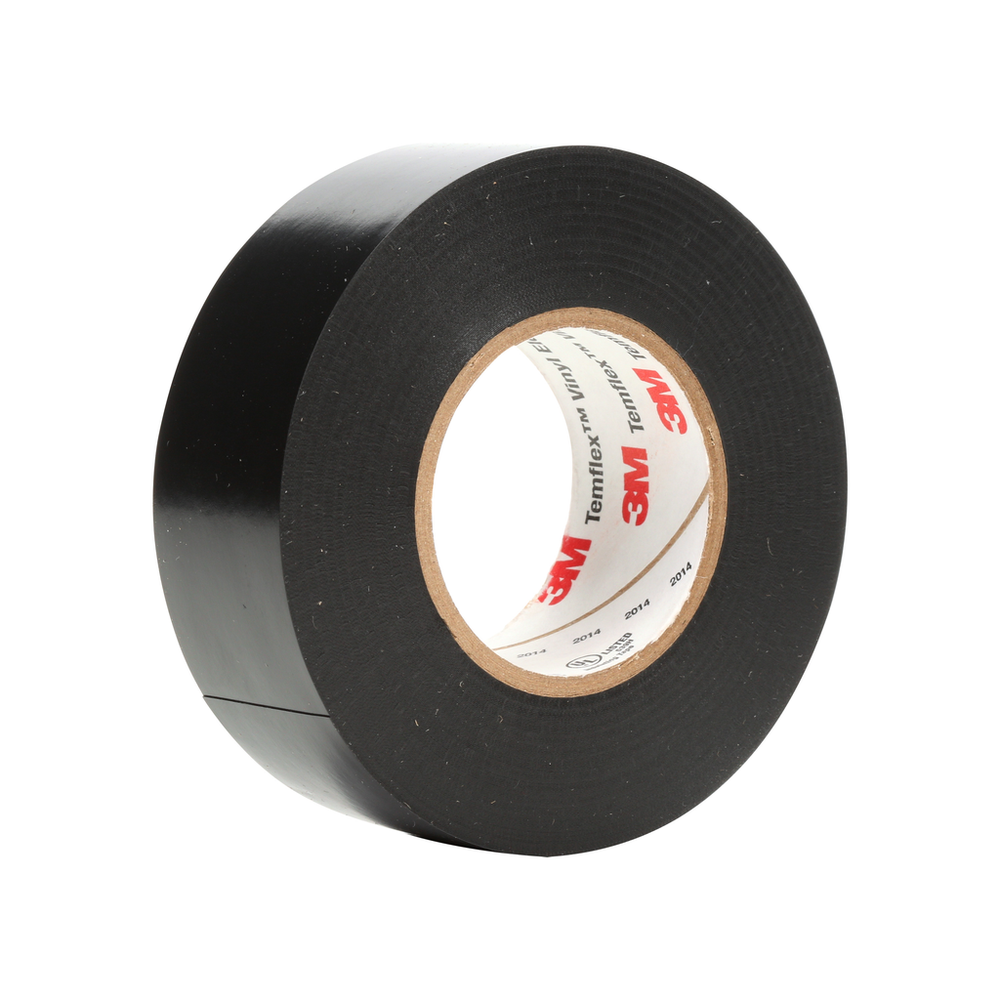

3M™ Temflex™ Vinyl Electrical Tape 1700, 2 in x 36 yd, Black, 25 rolls/Case - 7010399125

Sold As: 25-Pack
SKU: 7010399125
MPN: 7010399125
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007439639
3M ID: 80611205784
5 Digit UPC: 43963
$265.21 ($10.61 / Count)
Hurry up! Current stock:

Product Description

3M™ Temflex™ Electrical Tape 1700 is a 7 mil thick, general purpose, vinyl electrical tape. This flame retardant tape is designed for protective jacketing and harnessing. This tape is 600V rated and withstands a temperature range of 32 to 176 °F (0 to 80 °C).

Features

  • STRONG AND DURABLE: Made with an elastic vinyl (PVC) film backing coated on one side with a noncorrosive, rubber-based pressure-sensitive adhesive
  • KEY SPECIFICATIONS: UL and CSA Listed, RoHS Compliant

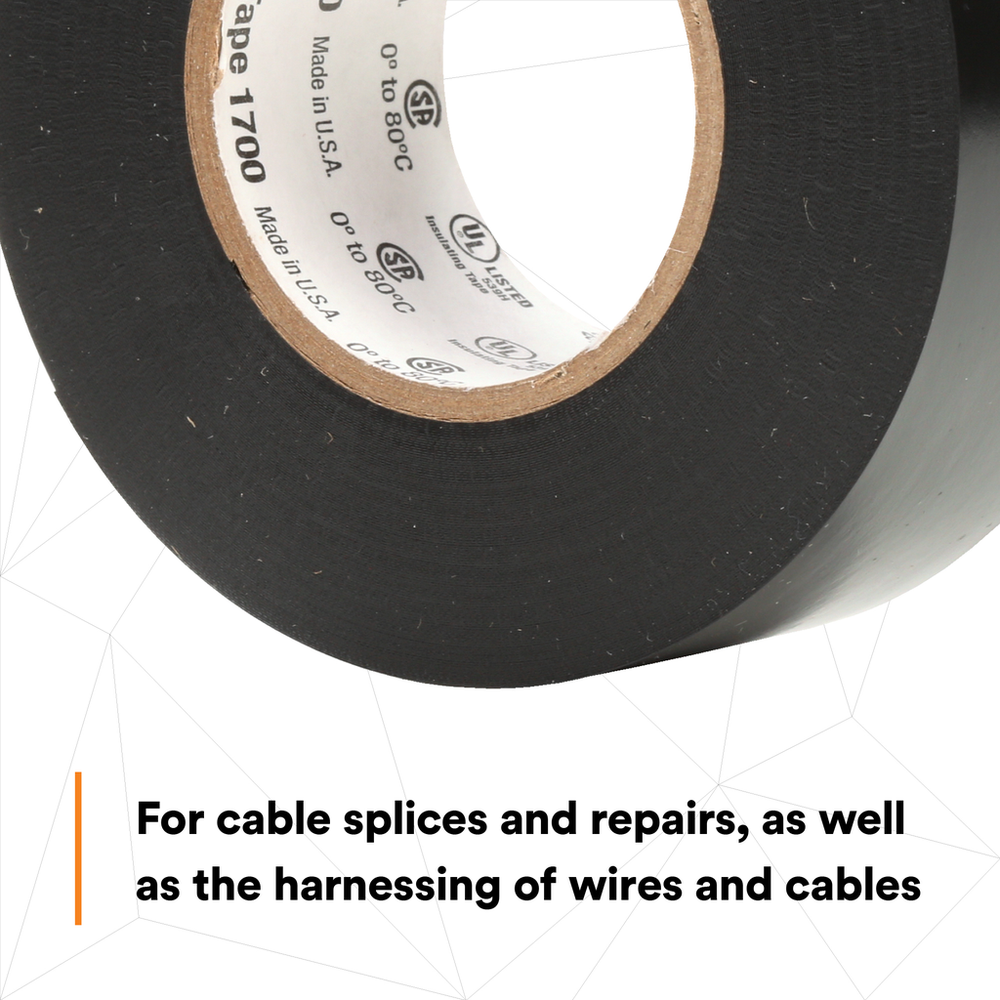

  • PROTECTIVE JACKETING: For cable splices and repairs, as well as the harnessing of wires and cables
  • VERSATILE APPLICATIONS: For indoor and weather-protected outdoor use
  • PRIMARY ELECTRICAL INSULATION: For most wire and cable splices rated up to 600V
  • OPERATING TEMPERATURE: Withstands a temperature range of 0-80 °C (32-176 °F)
Spec Sheet



Downloads

Specifications

Shelf Life1825
Country of OriginUnited States
Shelf Life UOMYear
Maximum Operating Temperature (Celsius) UOMDegree
Product ColorBlack
Adhesive TypeRubber
Overall Width (Metric)50.0
Maximum Operating Temperature (Fahrenheit)176.0
Backing (Carrier) MaterialVinyl
Overall Length (Imperial)36.0
Voltage Rating600 V
Overall Length (Imperial) UOMyd
Overall Width (Imperial) UOMin
Maximum Operating Temperature (Fahrenheit) UOMDegree
Tape GradeGeneral Use
ApplicationElectrical Maintenance
Insulation Resistance> 10^6 megohms
Overall Width (Imperial)2.0
Maximum Operating Temperature (Celsius)80.0
Overall Width (Metric) UOMmm
