3M Products & Supplies

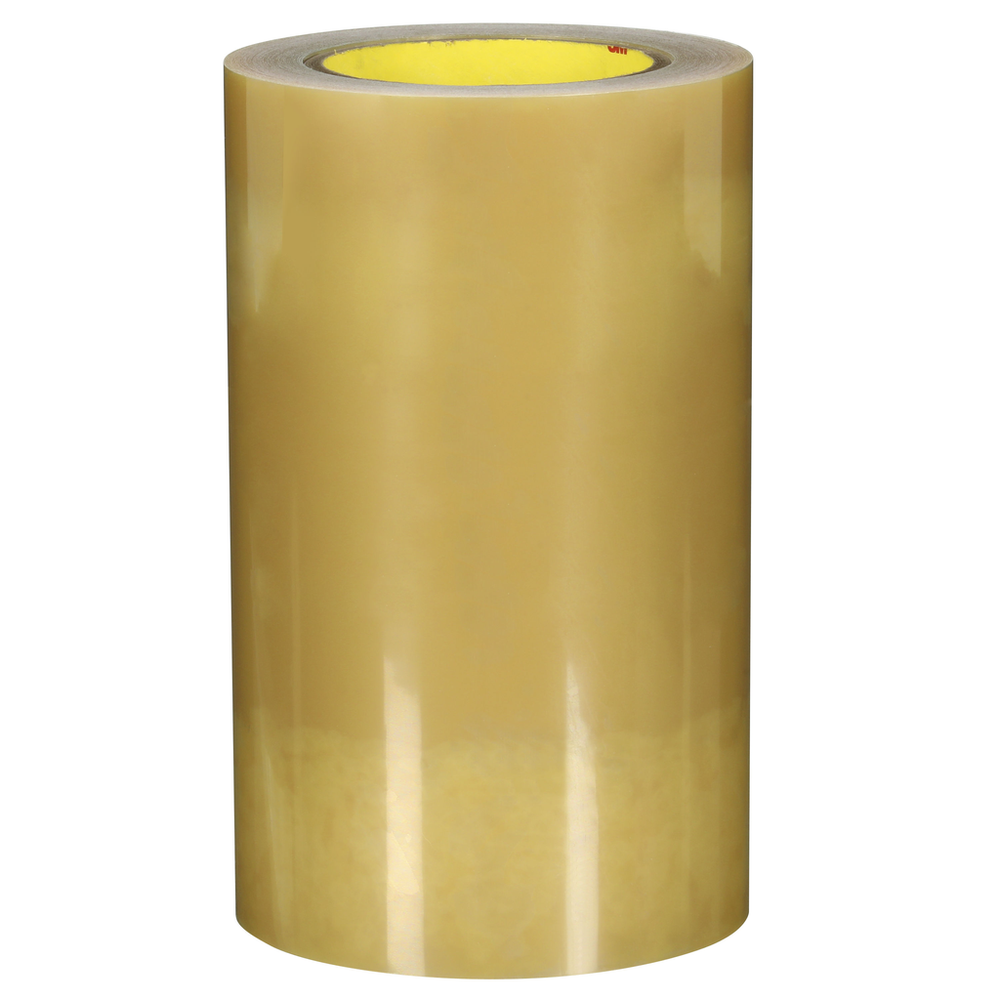

3M™ Thermal Bonding Film 583, 12 in x 180 yds, 1/Case, Bulk - 7010331694

SKU: 7010331694
MPN: 7010331694
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00021200034442
3M ID: 70002511569
5 Digit UPC: 3444
$1,016.16 each
Hurry up! Current stock:

Product Description

3M™ Thermal Bonding Film 583 is a high strength, flexible, nitrile phenolic based thermosetting adhesive film. It can be heat or solvent activated for bonding. It can also be lightly crosslinked using a post heat exposure.

Features

  • Lower temperature lamination of the nitrile phenolic film range
  • Flexible
  • Slight surface tack
  • Heat crosslinkable option
  • Heat or solvent activation
  • Can be die-cut
Spec Sheet



Downloads

Specifications

Shelf Life548
Country of OriginUnited States
Overall Width (Imperial)12.0
Overall Width (Metric)304.8
IndustriesElectronics, General Industrial, Transportation
Overall Width (Imperial) UOMin
Product ColorBrown
Density0.0
Maximum Operating Temperature (Celsius) UOMDegree
Curing Temperature (Fahrenheit) UOMDegree
Curing Temperature (Celsius) UOMDegree
Overall Thickness (Metric)5.0
Shear Strength UOMpsi
Minimum Operating Temperature (Fahrenheit)0.0
Overall Thickness (Metric) UOMmm
Minimum Operating Temperature (Celsius)0.0
Overall Length (Metric) UOMm
Nominal Adhesive Thickness (Metric)0.05
Overall Width (Metric) UOMmm
Product FormRoll
Backing Thickness (Metric)0.0
Overall Thickness (Imperial)0.127
Maximum Cure Conditions (Fahrenheit)300.0
Overall Length (Imperial) UOMyd
Product UsageElectronic Components
Overall Length (Imperial)180.0
Maximum Operating Temperature (Celsius)150.0
Shear Strength14.0
Nominal Weight (Metric)0.0
ApplicationBonding; Sealing
Nominal Adhesive Thickness (Imperial)2.0
Maximum Operating Temperature (Fahrenheit)300.0
Nominal Weight (Imperial)0.0
Adhesive TypeNitrile Phenolic
Maximum Operating Temperature (Fahrenheit) UOMDegree
Minimum Cure Conditions (Celsius)107.0
Minimum Cure Conditions (Fahrenheit)225.0
Backing Thickness (Imperial)0.0
Overall Length (Metric)164.6
Overall Thickness (Imperial) UOMmil
Maximum Cure Conditions (Celsius)150.0
Shelf Life UOMMonth
