3M Products & Supplies

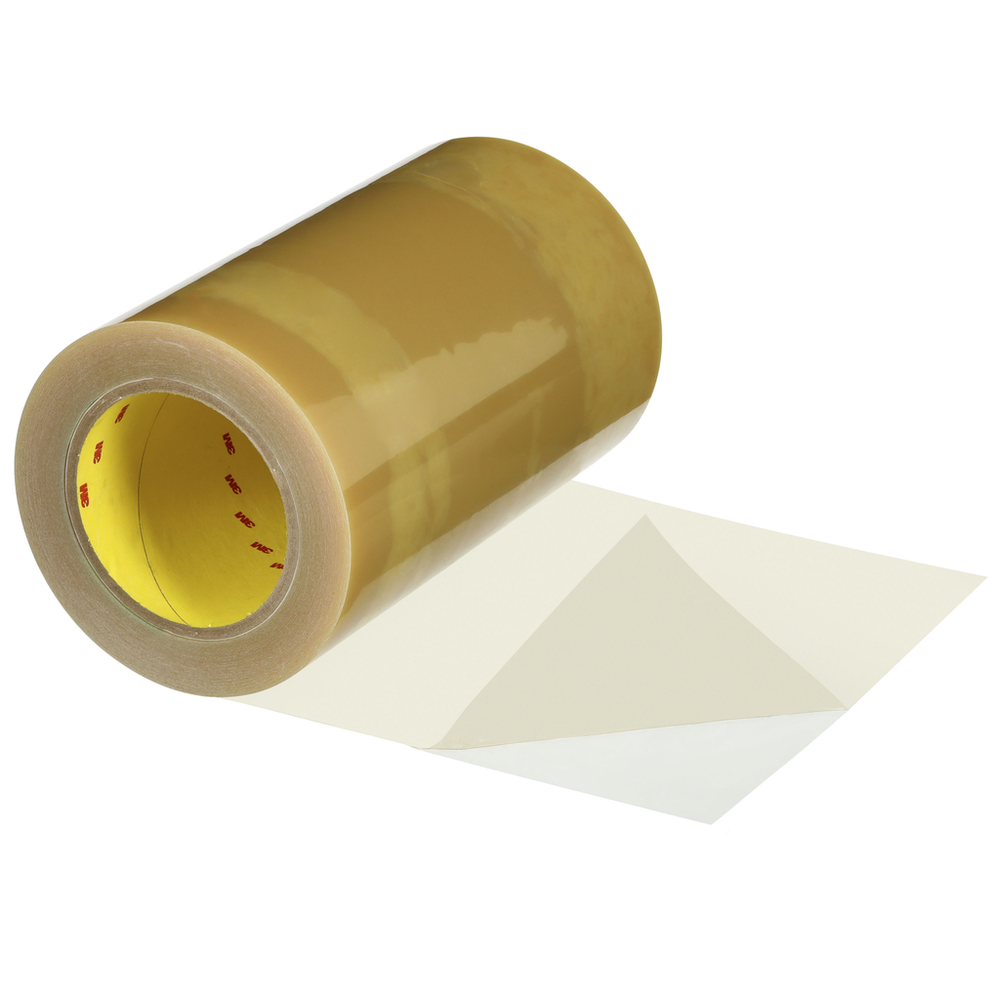

3M™ Thermal Bonding Film 583, 24 in x 180 yds, 1/Case, Bulk - 7000001156

SKU: 7000001156
MPN: 7000001156
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00021200039201
3M ID: 70006007218
5 Digit UPC: 3920
$2,032.31 each
Hurry up! Current stock:

Product Description

3M™ Thermal Bonding Film 583 is a high strength, flexible, nitrile phenolic based thermosetting adhesive film. It can be heat or solvent activated for bonding. It can also be lightly crosslinked using a post heat exposure.

Features

  • Heat or solvent activation
  • Can be die-cut
  • Flexible
  • Heat crosslinkable option
  • Slight surface tack
  • Lower temperature lamination of the nitrile phenolic film range
Spec Sheet



Downloads

Specifications

Shelf Life548
Country of OriginUnited States
IndustriesElectronics, General Industrial, Transportation
Maximum Cure Conditions (Fahrenheit)300.0
Minimum Operating Temperature (Celsius)0.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Metric) UOMm
Nominal Adhesive Thickness (Imperial)2.0
Overall Thickness (Metric)5.0
Overall Width (Imperial)24.0
Minimum Cure Conditions (Fahrenheit)225.0
Overall Width (Metric) UOMmm
Product ColorBrown
Overall Width (Imperial) UOMin
Product FormRoll
Maximum Cure Conditions (Celsius)150.0
Nominal Adhesive Thickness (Metric)0.05
Shear Strength14.0
Maximum Operating Temperature (Celsius) UOMDegree
Nominal Weight (Metric)0.0
Maximum Operating Temperature (Fahrenheit)300.0
Curing Temperature (Fahrenheit) UOMDegree
Shelf Life UOMMonth
Backing Thickness (Metric)0.0
Minimum Operating Temperature (Fahrenheit)0.0
Shear Strength UOMpsi
Curing Temperature (Celsius) UOMDegree
Minimum Cure Conditions (Celsius)107.0
Overall Thickness (Metric) UOMmm
Product UsageElectronic Components
Maximum Operating Temperature (Celsius)150.0
Density0.0
Overall Length (Imperial)180.0
Nominal Weight (Imperial)0.0
Overall Thickness (Imperial)0.127
ApplicationBonding; Sealing
Overall Length (Metric)164.6
Backing Thickness (Imperial)0.0
Overall Width (Metric)609.0
Overall Length (Imperial) UOMyd
Overall Thickness (Imperial) UOMmil
Adhesive TypeNitrile Phenolic
