3M Products & Supplies

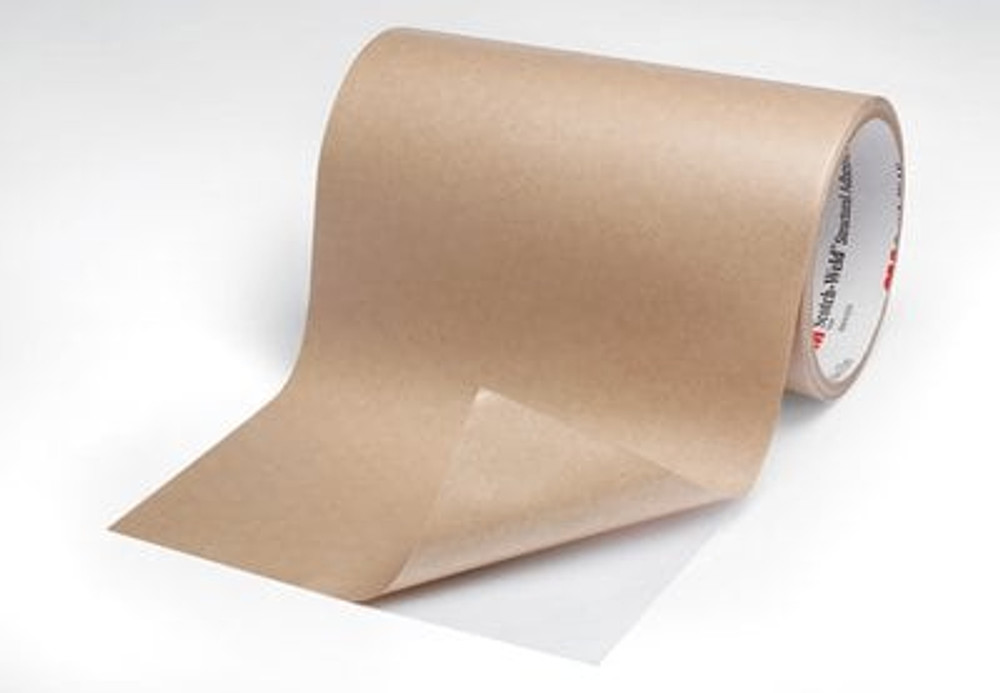

3M™ Thermal Bonding Film AF42, 1 in x 72 yds x 3 mil, 40/Case - 7010409307

Sold As: 40-Pack
SKU: 7010409307
MPN: 7010409307
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00021200203138
3M ID: 62219704517
5 Digit UPC: 20313
$6,087.87 ($152.20 / Count)
Hurry up! Current stock:

Product Description

3M™ Thermal Bonding Film AF42 is an epoxy, thermoset film adhesive developed for structural bonding of metal, glass and other engineering grade substances.

Features

  • Flexible for dissimilar substrates, high peel strength
  • Cures clear
  • 350° F (177° C) cure
  • 3 mil and 4 mil thick versions
  • Non tack, low flow
  • Storage at or below 40° F (4° C)
Spec Sheet



Downloads

Specifications

Shelf Life457
Country of OriginUnited States
Minimum Operating Temperature (Celsius)-55.0
Maximum Cure Conditions (Fahrenheit)450.0
Minimum Operating Temperature (Fahrenheit)-67.0
Product ColorTranslucent
Maximum Operating Temperature (Fahrenheit)250.0
IndustriesAerospace, Electronics, General Industrial, Transportation
Minimum Operating Temperature (Celsius) UOMDegree
Adhesive TypeEpoxy Film Adhesive
Overall Length (Metric) UOMm
Overall Width (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Thickness (Imperial) UOMmil
Overall Width (Imperial) UOMin
Maximum Cure Conditions (Celsius)232.0
ApplicationBonding
Nominal Weight (Metric)0.0
Product FormRoll
Minimum Cure Conditions (Celsius)177.0
Overall Length (Metric)65.8
Backing Thickness (Metric)0.0
Shelf Life UOMMonth
Overall Length (Imperial) UOMyd
Nominal Adhesive Thickness (Imperial)3.0
Shear Strength0.0
Overall Length (Imperial)72.0
Overall Width (Imperial)1.0
Curing Temperature (Celsius) UOMDegree
Maximum Operating Temperature (Celsius) UOMDegree
Nominal Adhesive Thickness (Metric)0.08
Backing Thickness (Imperial)0.0
Minimum Operating Temperature (Fahrenheit) UOMDegree
Density0.0
Product UsageAircraft Components; Marine Structures
Minimum Cure Conditions (Fahrenheit)350.0
Curing Temperature (Fahrenheit) UOMDegree
Overall Thickness (Imperial)9.5
Maximum Operating Temperature (Celsius)121.0
Overall Width (Metric)25.0
Nominal Weight (Imperial)0.0
Overall Thickness (Metric) UOMmm
Overall Thickness (Metric)0.25
