3M Products & Supplies

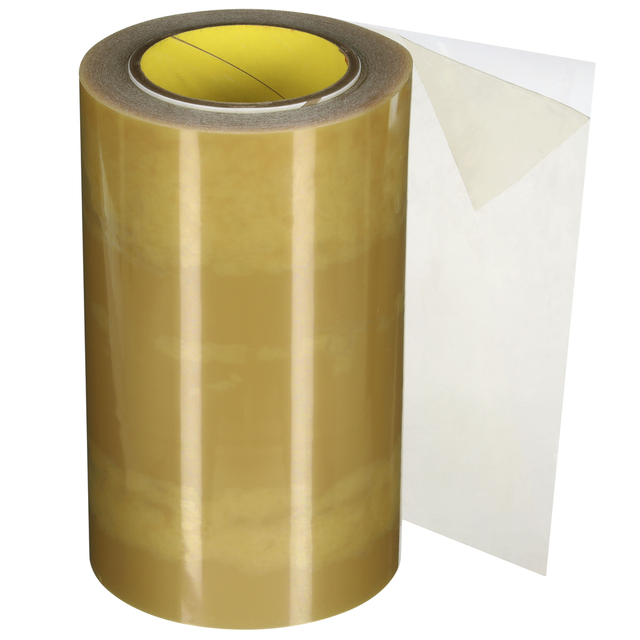

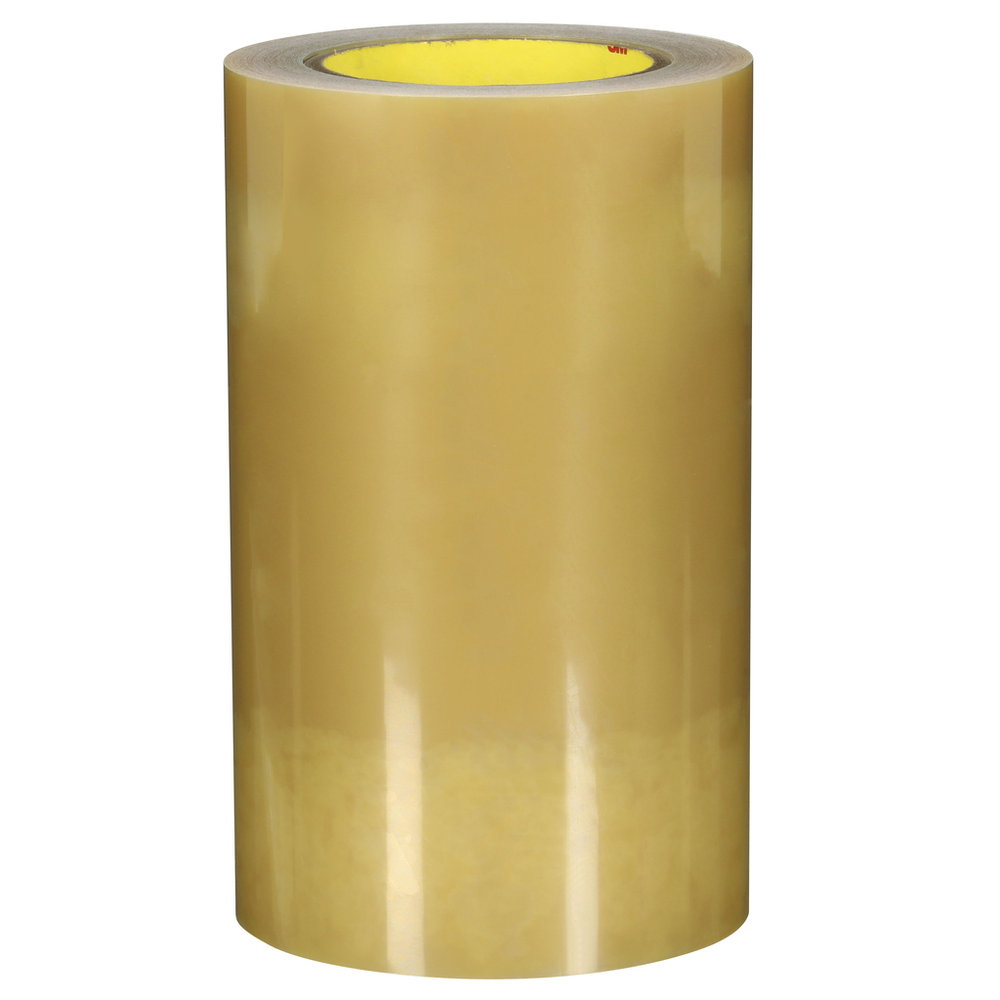

3M™ Thermal Bonding Film 583, 3/4 in x 3 yds, 48/Case - 7010378931

Sold As: 48-Pack
SKU: 7010378931
MPN: 7010378931
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00021200059537
3M ID: 70016002050
5 Digit UPC: 5953
$53.98 ($1.12 / Count)
Hurry up! Current stock:

Product Description

3M™ Thermal Bonding Film 583 is a high strength, flexible, nitrile phenolic based thermosetting adhesive film. It can be heat or solvent activated for bonding. It can also be lightly crosslinked using a post heat exposure.

Features

  • Lower temperature lamination of the nitrile phenolic film range
  • Heat crosslinkable option
  • Flexible
  • Heat or solvent activation
  • Slight surface tack
  • Can be die-cut
Spec Sheet



Downloads

Specifications

Shelf Life548
Country of OriginUnited States
Backing Thickness (Metric)0.0
Overall Width (Imperial)0.75
Maximum Operating Temperature (Celsius) UOMDegree
Product ColorBrown
Overall Thickness (Metric)5.0
Overall Length (Metric) UOMm
Nominal Adhesive Thickness (Metric)0.05
Nominal Weight (Imperial)0.0
Nominal Weight (Metric)0.0
Overall Thickness (Imperial) UOMmil
Shear Strength14.0
Overall Thickness (Imperial)0.127
Shelf Life UOMMonth
Adhesive TypeNitrile Phenolic
Shear Strength UOMpsi
Overall Width (Metric)19.05
Overall Thickness (Metric) UOMmm
Overall Length (Imperial) UOMyd
Product FormRoll
Maximum Operating Temperature (Celsius)150.0
Minimum Cure Conditions (Celsius)107.0
Maximum Cure Conditions (Fahrenheit)300.0
Product UsageElectronic Components
Minimum Operating Temperature (Celsius)0.0
Minimum Cure Conditions (Fahrenheit)225.0
IndustriesElectronics, General Industrial, Transportation
Curing Temperature (Fahrenheit) UOMDegree
ApplicationBonding; Sealing
Backing Thickness (Imperial)0.0
Overall Width (Metric) UOMmm
Nominal Adhesive Thickness (Imperial)2.0
Maximum Cure Conditions (Celsius)150.0
Overall Width (Imperial) UOMin
Curing Temperature (Celsius) UOMDegree
Overall Length (Metric)2.7
Overall Length (Imperial)3.0
Minimum Operating Temperature (Fahrenheit)0.0
Density0.0
Maximum Operating Temperature (Fahrenheit)300.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
