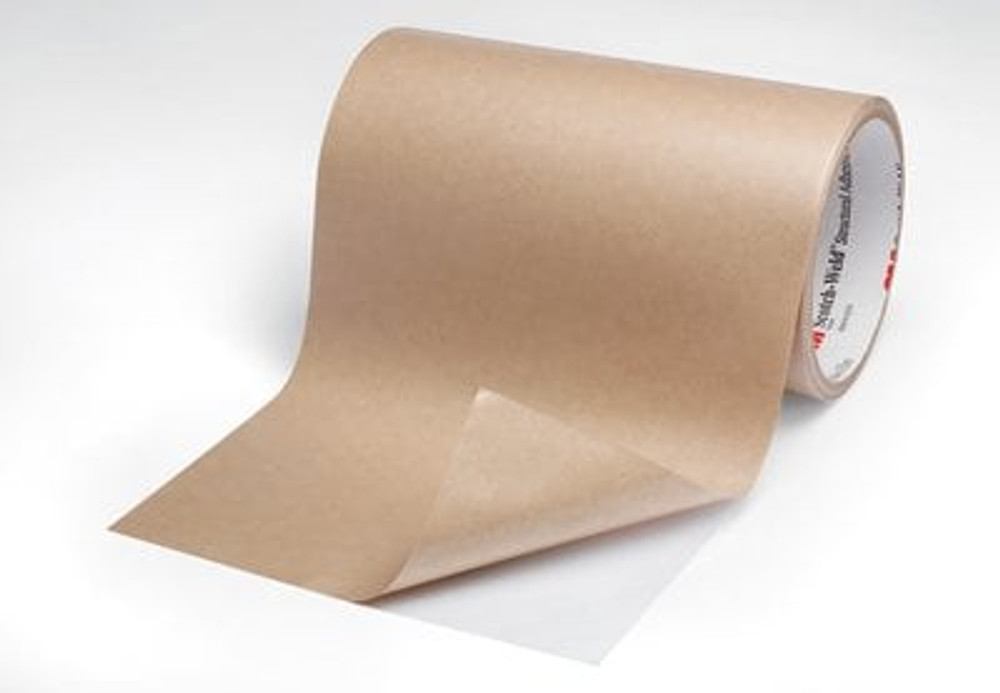

3M™ Thermal Bonding Film AF42, 20 in x 72 yds, 3 mil, 1/Case - 7100010220

Sold As: 2-Pack
SKU: 7100010220
MPN: 7100010220
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00021200203299
3M ID: 62219747011
5 Digit UPC: 20329
$5,854.03 ($2927.01 / Count)
Hurry up! Current stock:

Product Description

3M™ Thermal Bonding Film AF42 is an epoxy, thermoset film adhesive developed for structural bonding of metal, glass and other engineering grade substances.

Features

  • 350° F (177° C) cure
  • Non tack, low flow
  • 3 mil and 4 mil thick versions
  • Storage at or below 40° F (4° C)
  • Flexible for dissimilar substrates, high peel strength
  • Cures clear
Spec Sheet



Downloads

Specifications

Shelf Life457
Country of OriginUnited States
Overall Length (Imperial)72.0
Overall Thickness (Imperial) UOMmil
Overall Thickness (Imperial)9.5
Overall Width (Metric) UOMmm
Overall Thickness (Metric)0.25
Shelf Life UOMMonth
Nominal Weight (Metric)0.0
Nominal Adhesive Thickness (Imperial)3.0
Curing Temperature (Fahrenheit) UOMDegree
Overall Width (Imperial) UOMin
Overall Width (Metric)508.0
Product UsageAircraft Components; Marine Structures
Overall Length (Metric)65.8
Overall Length (Imperial) UOMyd
Overall Thickness (Metric) UOMmm
Nominal Adhesive Thickness (Metric)0.08
Overall Length (Metric) UOMm
Shear Strength0.0
Minimum Operating Temperature (Fahrenheit) UOMDegree
Maximum Cure Conditions (Celsius)232.0
IndustriesAerospace, Electronics, General Industrial, Transportation
Minimum Operating Temperature (Celsius)-55.0
Backing Thickness (Imperial)0.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Minimum Operating Temperature (Celsius) UOMDegree
Overall Width (Imperial)20.0
Maximum Cure Conditions (Fahrenheit)450.0
Backing Thickness (Metric)0.0
Maximum Operating Temperature (Celsius) UOMDegree
Curing Temperature (Celsius) UOMDegree
Density0.0
Maximum Operating Temperature (Fahrenheit)250.0
Product ColorTranslucent
Adhesive TypeEpoxy Film Adhesive
Minimum Operating Temperature (Fahrenheit)-67.0
Nominal Weight (Imperial)0.0
Minimum Cure Conditions (Celsius)177.0
Maximum Operating Temperature (Celsius)121.0
Product FormRoll
ApplicationBonding
Minimum Cure Conditions (Fahrenheit)350.0
