3M Products & Supplies

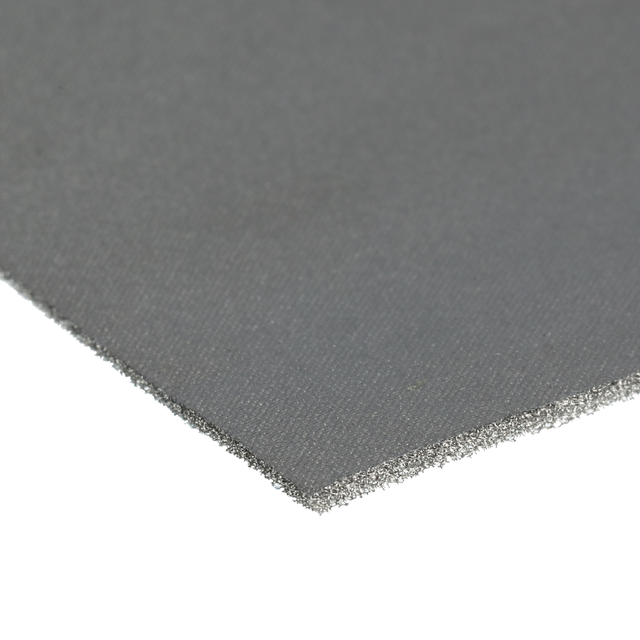

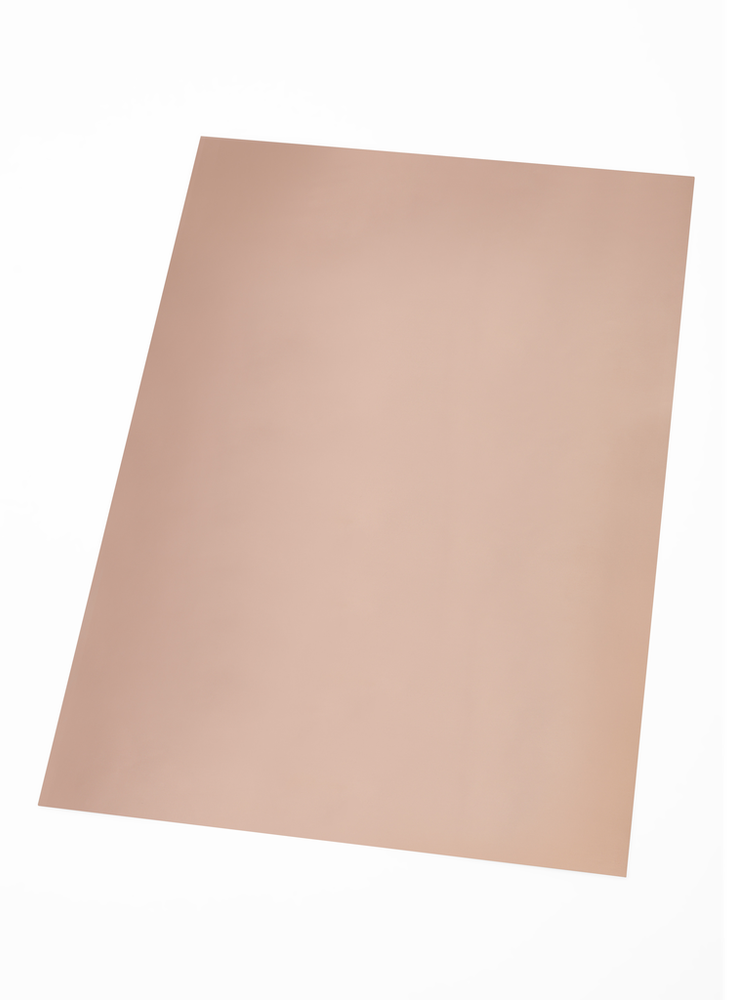

3M™ Thermally Conductive Heat Spreading Tape (TCoHST) 9876-10, 500 mm x 50 m, 1/Case - 7000008596

SKU: 7000008596
MPN: 7000008596
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051115526503
3M ID: WX300918694
5 Digit UPC: 52650
$5,117.79 each
Hurry up! Current stock:

Product Description

3M™ Thermally Conductive and Heat Spreading Tape Series 9876 provides excellent heat spreading performance on plane direction for stimulation of quick heat dissipation with a preferential heat transfer path between heat generating components.

Features

  • Excellent thermal conductivity on plane direction ( >210-250 W/m-K)
  • High performance acrylic adhesive provides excellent adhesion to Aluminum and SUS
  • Easy workability and handling (easy die-cut)
  • Selective thermal spreading path for uniform heat distribution
  • Excellent flexibility
  • Excellent electrical insulation
Spec Sheet



Downloads

Specifications

Shelf Life24.0 Month
Country of OriginSouth Korea
Total Tape Thickness without Liner (Metric) UOMmm
Overall Width (Metric)500.0
Overall Length (Imperial) UOMyd
Overall Length (Imperial)54.68
Total Tape Thickness without Liner (Imperial)3.937
Overall Width (Imperial)19.69
Adhesive TypeAcrylic
Product UsageCOF Chips; Displays; Fans; Heat Pipes; Heat Sinks; Heat Spreaders; LED Lighting Systems; Metal Frames; Solar Panels
Total Tape Thickness without Liner (Imperial) UOMmil
Overall Length (Metric)50.0
Overall Width (Imperial) UOMin
Thermal Conductivity (X-Y Axis)250.0 W/m-K
Base MaterialCopper
Dielectric Strength2.9 kV
Units per Case1.0 Roll
Total Tape Thickness without Liner (Metric)0.1
Overall Length (Metric) UOMm
Overall Width (Metric) UOMmm
ApplicationBonding, Heat Dissipation, Heat Transfer, Thermal Management
Thermal Conductivity (Z Axis)0.8 W/m-K
Product ColorBrown
