3M Products & Supplies

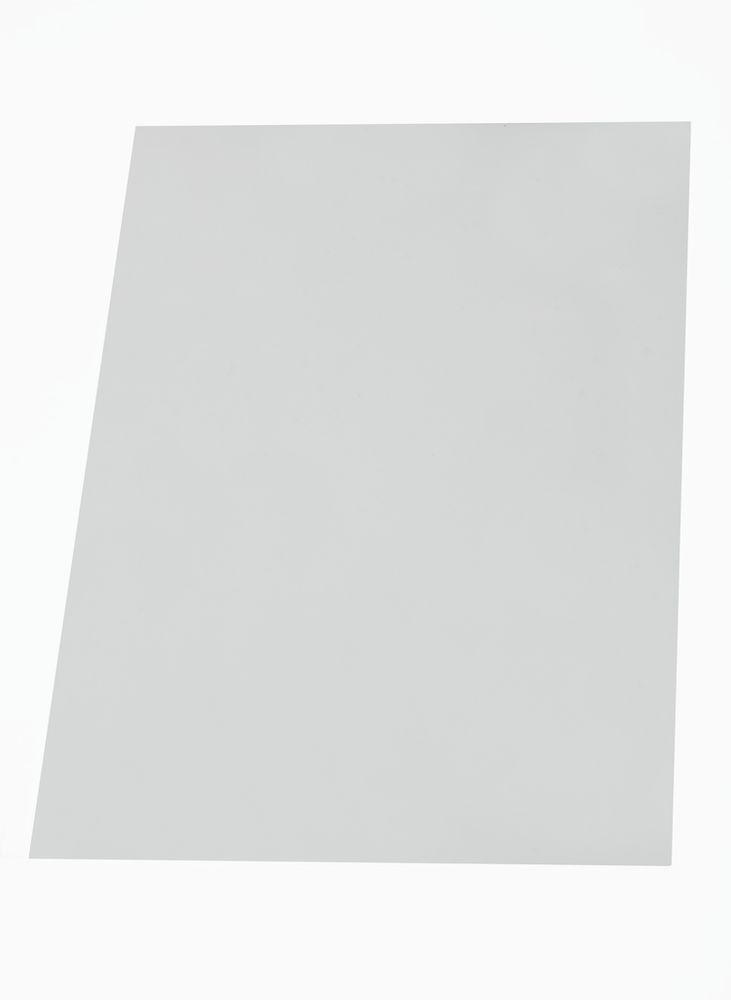

3M™ Thermally Conductive Interface Tape 8926-02, 600 mm x 80 m x 0.20 mm, 1/Case - 7100088864

Sold As: 14-Pack
SKU: 7100088864
MPN: 7100088864
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 08806080038740
3M ID: WT600912412
5 Digit UPC: 3874
$34,386.08 ($2456.15 / Count)
Hurry up! Current stock:

Product Description

3M™ Thermally Conductive Interface Tape 8926-02 is a 0.20 mm pressure-sensitive tape designed to have good converting ability, handing and re-workability through the introduction of a thin PET carrier. 3M tape Series 8926 is designed with a soft acrylic polymer and multiple thickness options to allow excellent wet-out or conformability to many surfaces.

Features

  • Low thermal impedance
  • Can be used for heat management
  • Good thermal conductivity (>1.5W/m-K)
  • Good and reliable adhesion performance to Al and SS
  • Excellent dielectric performance
  • Vibration damping
Spec Sheet



Downloads

Specifications

Shelf Life18.0 Month
Country of OriginSouth Korea
Overall Width (Imperial) UOMin
ApplicationBonding, Heat Dissipation, Thermal Management
Dielectric Strength15.0 kV/mm
Total Tape Thickness without Liner (Imperial) UOMmil
Overall Width (Metric)600.0
Specifications MetUL 94 V-0
Overall Length (Imperial) UOMyd
Overall Length (Metric)80.0
Adhesive TypeAcrylic
Base MaterialAcrylic
Units per Case1.0
Overall Width (Metric) UOMmm
Overall Width (Imperial)23.62
Overall Length (Metric) UOMm
Thermal Conductivity (X-Y Axis)0.0
Product UsageCOF Chips; Integrated Circuit Chips; LED Lighting Systems
Overall Length (Imperial)87.49
Product ColorWhite
Total Tape Thickness without Liner (Imperial)7.874
Total Tape Thickness without Liner (Metric) UOMmm
Total Tape Thickness without Liner (Metric)0.2
Thermal Conductivity (Z Axis)1.5 W/m-K
