3M Products & Supplies

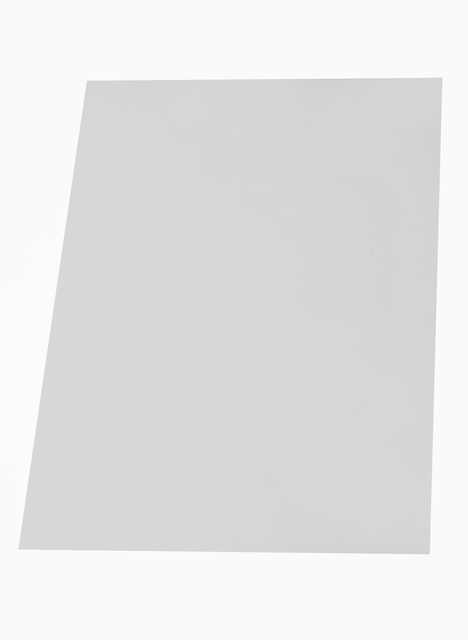

3M™ Thermally Conductive Interface Tape 8926-025, 600 mm x 40 m x 0.25 mm, 1 Roll/Case - 7100323388

SKU: 7100323388
MPN: 7100323388
Stock Item: Stock items typically ship within 2-3 business days
UPC: 08806410009020
MPN: 8926-025
$1,368.68 each
Hurry up! Current stock:

Product Description

3M™ Thermally Conductive Interface Tape 8926 is a pressure sensitive tape designed to have good converting ability, handing and re-workability through the introduction of a thin PET carrier. 3M tape series 8926 is designed with a soft acrylic polymer and multiple thickness options to allow excellent wet-out or conformability to many surfaces.

Features

  • Low thermal impedance
  • Good and reliable adhesion performance to Al and SS
  • Can be used for heat management
  • Excellent dielectric performance
  • Good thermal conductivity (>1.5W/m-K)
  • Vibration damping

Downloads

Specifications

Shelf Life18.0 Month
Overall Width (Imperial)23.62
Overall Length (Imperial) UOMyd
ApplicationBonding, Heat Dissipation, Thermal Management
Overall Length (Imperial)43.74
Product UsageCOF Chips; Integrated Circuit Chips; LED Lighting Systems
Overall Width (Metric) UOMmm
Overall Length (Metric)40.0
Total Tape Thickness without Liner (Metric)0.25
Base MaterialAcrylic
Total Tape Thickness without Liner (Imperial)9.842
Total Tape Thickness without Liner (Metric) UOMmm
Thermal Conductivity (X-Y Axis)0.0
Dielectric Strength15.0 kV/mm
Specifications MetUL 94 V-0
Units per Case1.0 Roll
Overall Width (Imperial) UOMin
Product ColorWhite
Overall Width (Metric)600.0
Adhesive TypeAcrylic
Total Tape Thickness without Liner (Imperial) UOMmil
Overall Length (Metric) UOMm
Country of OriginSouth Korea
Thermal Conductivity (Z Axis)1.5 W/m-K
