3M Products & Supplies

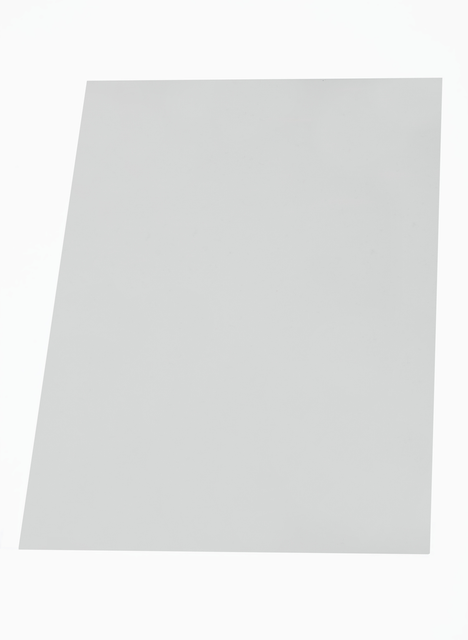

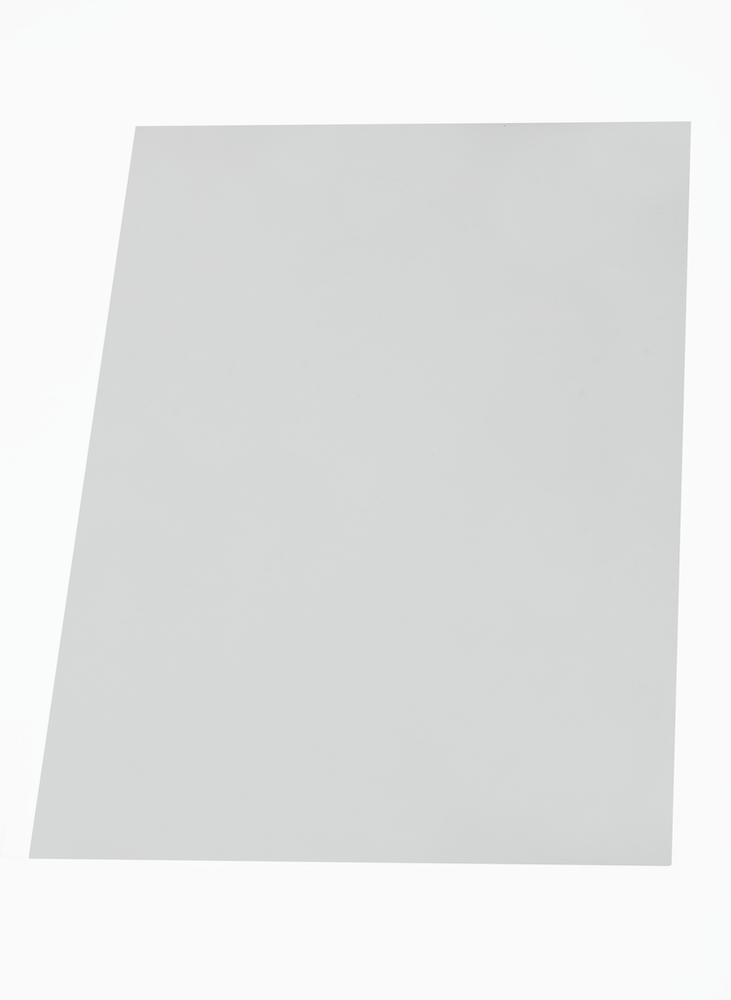

3M™ Thermally Conductive Interface Tape 8926-05, 600 mm x 40 m x 0.5 mm, 1/Case - 7100100145

SKU: 7100100145
MPN: 7100100145
Stock Item: Stock items typically ship within 2-3 business days
UPC: 08806080063681
3M ID: WT600913345
5 Digit UPC: 6368
$2,030.63 each
Hurry up! Current stock:

Product Description

3M™ Thermally Conductive Interface Tape 8926-05 is a 0.5 mm pressure-sensitive tape designed to have good converting ability, handing and re-workability through the introduction of a thin PET carrier. 3M tape Series 8926 is designed with a soft acrylic polymer and multiple thickness options to allow excellent wet-out or conformability to many surfaces.

Features

  • Excellent dielectric performance
  • Good and reliable adhesion performance to Al and SS
  • Low thermal impedance
  • Good thermal conductivity (>1.5W/m-K)
  • Vibration damping
  • Can be used for heat management
Spec Sheet



Downloads

Specifications

Shelf Life18.0 Month
Country of OriginSouth Korea
Overall Length (Imperial)43.75
Base MaterialAcrylic
Total Tape Thickness without Liner (Metric) UOMmm
Overall Width (Metric) UOMmm
Total Tape Thickness without Liner (Imperial)19.685
Total Tape Thickness without Liner (Imperial) UOMmil
Thermal Conductivity (X-Y Axis)0.0
Overall Length (Imperial) UOMyd
Overall Width (Metric)600.0
Product ColorWhite
Product UsageCOF Chips; Integrated Circuit Chips; LED Lighting Systems
ApplicationBonding, Heat Dissipation, Thermal Management
Overall Length (Metric)40.0
Dielectric Strength15.0 kV/mm
Thermal Conductivity (Z Axis)1.5 W/m-K
Overall Width (Imperial) UOMin
Overall Width (Imperial)23.62
Adhesive TypeAcrylic
Units per Case1.0
Total Tape Thickness without Liner (Metric)0.5
Specifications MetUL 94 V-0
Overall Length (Metric) UOMm
