3M Products & Supplies

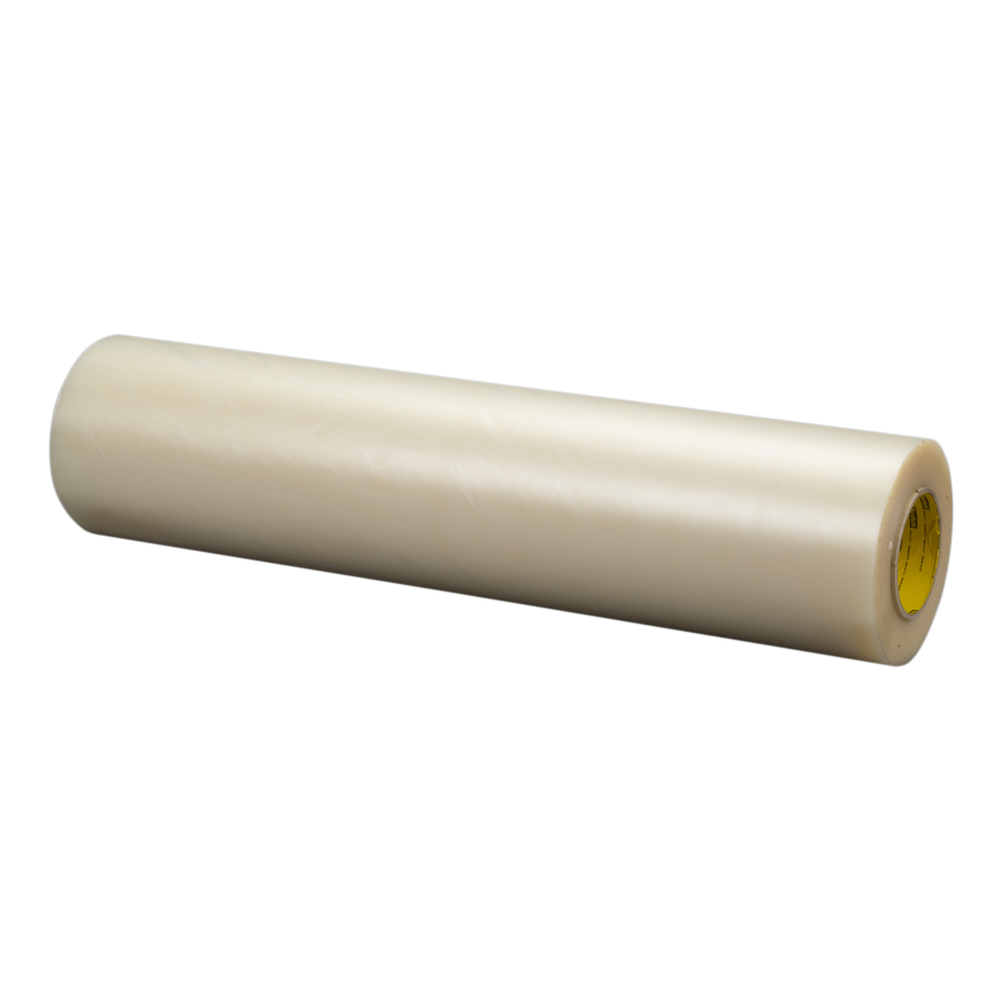

3M™ Thin Flexographic Plate Mounting Tape 2205FL, Translucent, 27 in x 60 yd, 5 mil, 1 Roll/Case, 3 inch Core - 7010291524

SKU: 7010291524
MPN: 7010291524
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00076308982911
3M ID: 70006776309
5 Digit UPC: 98291
$1,051.35 each
Hurry up! Current stock:

Product Description

3M™ Thin Flexographic Mounting Tape 2205FL Translucent is a 5 mil, double coated film tape with differential acrylic adhesives on a polyester film carrier with a polycoated polyester liner. This tape is specifically designed for the corrugated printing segment to hold flexographic print plates to PVC saddles/carriers.

Features

  • Non-linered side of the tape is designed for mounting to photopolymer plates
  • 0.005 inch (0.13 mm) double coated tape is designed for the corrugated printing business to hold flexographic print plates to PVC carriers/saddles
  • Grooves in the adhesive are created by a cross-hatch pattern from the release liner
  • Clean plate removal when demounting or repositioning
  • Linered side of the tape is designed for mounting to the carrier and has the air release feature allowing air to escape from between the tape and the carrier
  • Excellent holding power on-press with high plateside adhesion

Specifications

Shelf Life365
Country of OriginUnited States
IndustriesPaper, Print
Total Tape Thickness without Liner (Imperial) UOMmil
Overall Width (Imperial)27.0
Primary LinerPolycoated Polyester
Overall Length (Metric)54.86
Application Thickness (Metric)0.13
Composite SleevesNo
Product ColorTransparent
Total Tape Thickness without Liner (Metric)0.127
Overall Length (Metric) UOMm
Overall Length (Imperial)60.0
Application Thickness (Imperial) UOMmil
Overall Length (Imperial) UOMyd
Total Tape Thickness without Liner (Metric) UOMmm
Overall Width (Imperial) UOMin
Warranty Period1 Year from Date of Manufacture
Overall Thickness (Imperial) UOMmil
Overall Width (Metric)685.8
Urethane SleevesNo
Overall Thickness (Imperial)5.0
Backing MaterialPolyester Film
Primary Liner Thickness (Metric)0.1
Primary Liner Thickness (Metric) UOMmm
ApplicationFlexographic Plate Mounting
Application Thickness (Metric) UOMmm
Application Thickness (Imperial)5
Total Tape Thickness without Liner (Imperial)5.0
Overall Width (Metric) UOMmm
Product FormRoll
Air ReleaseYes
