3M Products & Supplies

3M™ Thin Flexographic Mounting Tape 2205, Translucent, 36 in x 60 yd, 5 mil, 1 Roll/Case, 3 inch Core - 7010376418

SKU: 7010376418
MPN: 7010376418
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00076308982874
3M ID: 70006776267
5 Digit UPC: 98287
$1,401.31 each
Hurry up! Current stock:

Product Description

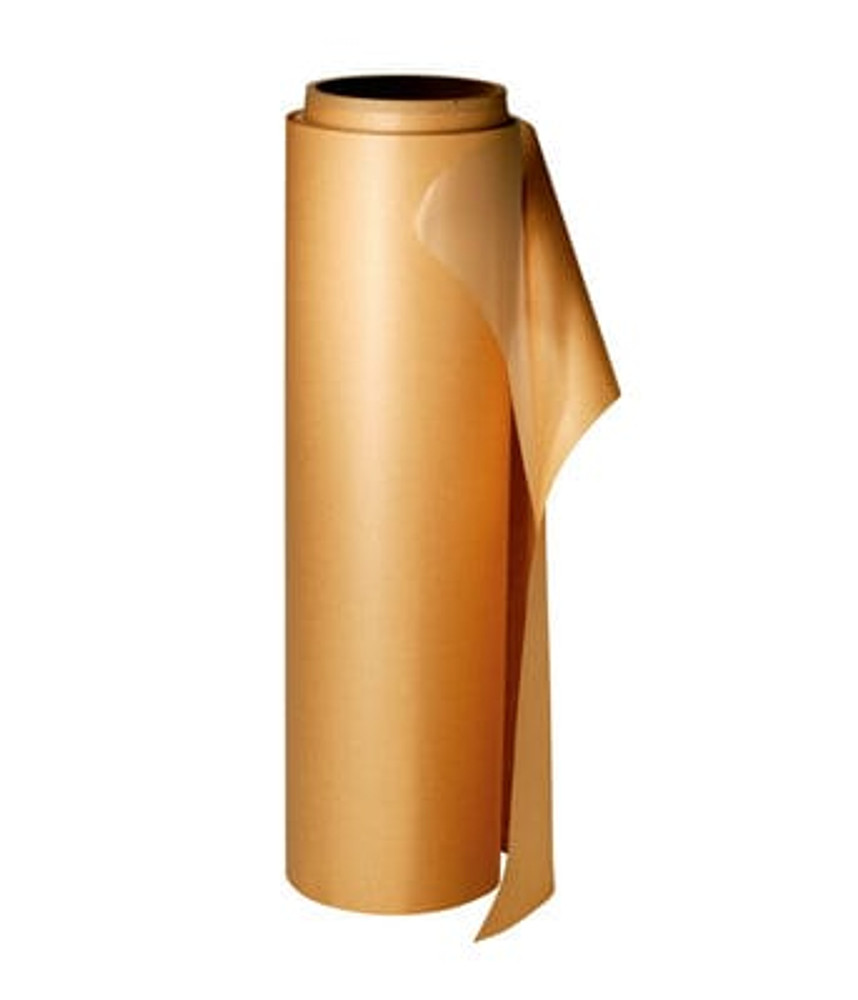

3M™ Thin Flexographic Mounting Tape 2205 is a 5 mil, double coated film tape with differential acrylic adhesives on a polyester film carrier with a polycoated kraft paper liner. This tape is specifically designed for the corrugated printing business to hold flexographic print plates to PVC saddles/carriers.

Features

  • Clean plate removal when demounting or repositioning
  • Excellent holding power on-press with high plate side adhesion
  • Embossed polycoated kraft (PCK) paper liner
  • 0.005 inch (0.13 mm) double-coated tape designed for the corrugated printing business to hold flexographic print plates to PVC carriers/saddles and PET carriers/saddles
  • Adhesive on non-linered side of the tape is designed for mounting of photopolymer plates
  • Linered side of the tape has crosshatched pattern that allows air to escape from between the tape and the carrier
Spec Sheet



Downloads

Specifications

Shelf Life365
Country of OriginUnited States
Product ColorTransparent
Primary LinerPaper
Product FormRoll
Primary Liner Thickness (Metric)0.1
Overall Width (Metric) UOMmm
Application Thickness (Imperial)5
Overall Length (Metric)54.86
Overall Width (Imperial) UOMin
Overall Length (Imperial)60.0
Warranty Period1 Year from Date of Manufacture
Application Thickness (Metric)0.13
Urethane SleevesNo
Total Tape Thickness without Liner (Imperial) UOMmil
Overall Thickness (Imperial) UOMmil
Primary Liner Thickness (Metric) UOMmm
Air ReleaseYes
Application Thickness (Imperial) UOMmil
Overall Width (Imperial)36.0
Total Tape Thickness without Liner (Imperial)5.0
Total Tape Thickness without Liner (Metric)0.127
Overall Thickness (Imperial)5.0
Total Tape Thickness without Liner (Metric) UOMmm
IndustriesPaper, Print
ApplicationFlexographic Plate Mounting
Application Thickness (Metric) UOMmm
Backing MaterialPolyester Film
Overall Length (Metric) UOMm
Overall Width (Metric)914.4
Composite SleevesNo
Overall Length (Imperial) UOMyd
