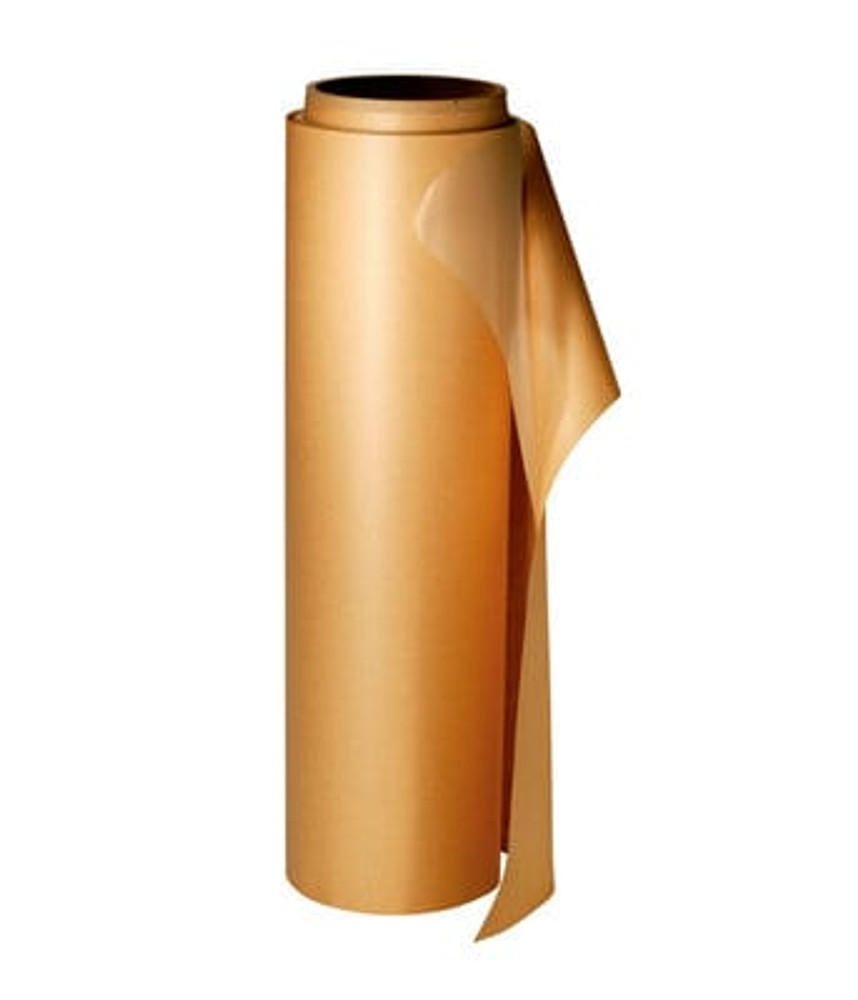

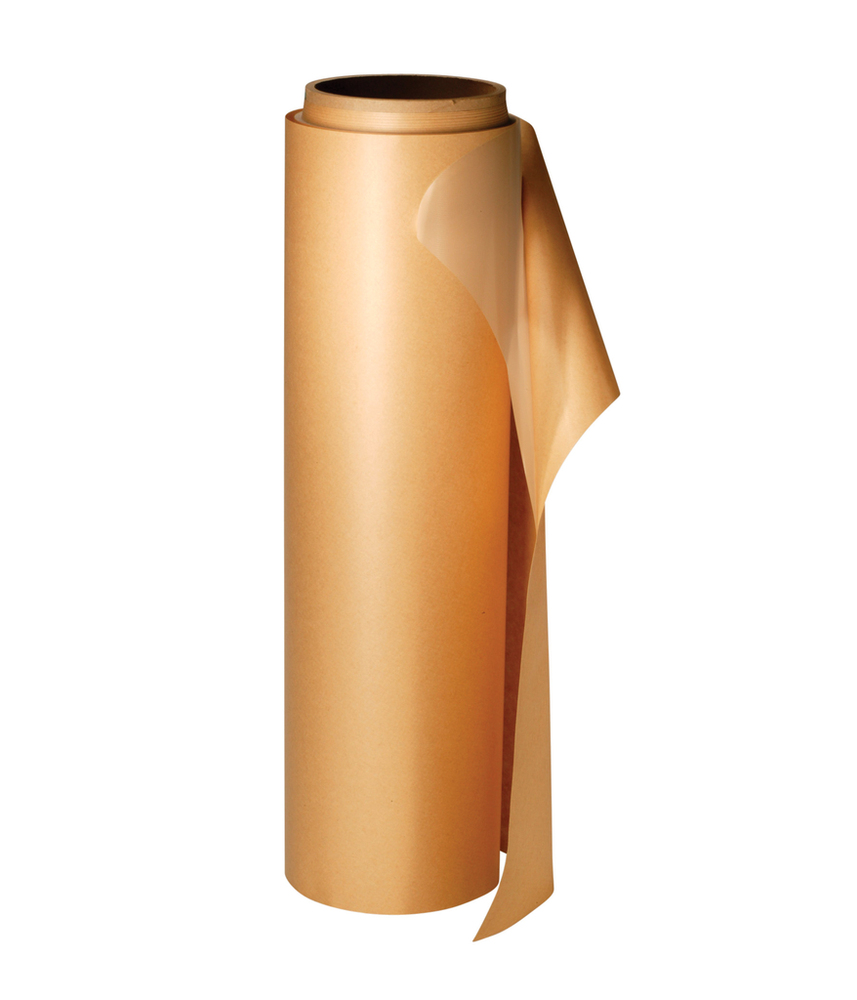

3M™ Thin Flexographic Mounting Tape 2205, Translucent, 2 in x 36 yd, 5 mil, 24 Roll/Case, 3 inch Core - 7010334652

Sold As: 24-Pack
SKU: 7010334652
MPN: 7010334652
Lead Time: 10 working days.
UPC: 00048011538389
3M ID: 70006355260
5 Digit UPC: 53838
$1,207.15 ($50.30 / Count)
Hurry up! Current stock:

Product Description

3M™ Thin Flexographic Mounting Tape 2205 is a 5 mil, double coated film tape with differential acrylic adhesives on a polyester film carrier with a polycoated kraft paper liner. This tape is specifically designed for the corrugated printing business to hold flexographic print plates to PVC saddles/carriers.

Features

  • Linered side of the tape has crosshatched pattern that allows air to escape from between the tape and the carrier
  • Clean plate removal when demounting or repositioning
  • Adhesive on non-linered side of the tape is designed for mounting of photopolymer plates
  • Embossed polycoated kraft (PCK) paper liner
  • Excellent holding power on-press with high plate side adhesion
  • 0.005 inch (0.13 mm) double-coated tape designed for the corrugated printing business to hold flexographic print plates to PVC carriers/saddles and PET carriers/saddles
Spec Sheet



Downloads

Specifications

Shelf Life365
Country of OriginUnited States
Application Thickness (Imperial)5
Overall Length (Metric) UOMm
Overall Width (Imperial) UOMin
Overall Thickness (Imperial) UOMmil
Application Thickness (Metric) UOMmm
Backing MaterialPolyester Film
Overall Thickness (Imperial)5.0
Application Thickness (Metric)0.13
Overall Width (Imperial)2.0
Total Tape Thickness without Liner (Metric) UOMmm
Product FormRoll
Overall Width (Metric) UOMmm
Warranty Period1 Year from Date of Manufacture
Overall Length (Metric)32.91
Overall Length (Imperial)36.0
Total Tape Thickness without Liner (Metric)0.13
Air ReleaseYes
ApplicationFlexographic Plate Mounting
Product ColorTransparent
Total Tape Thickness without Liner (Imperial) UOMmil
Overall Width (Metric)50.8
IndustriesPaper, Print
Primary LinerPaper
Urethane SleevesNo
Primary Liner Thickness (Metric)0.1
Application Thickness (Imperial) UOMmil
Units per Case24.0
Primary Liner Thickness (Metric) UOMmm
Overall Length (Imperial) UOMyd
Composite SleevesNo
Total Tape Thickness without Liner (Imperial)5.0
Adhesive TypeDifferential Acrylate
