3M Products & Supplies

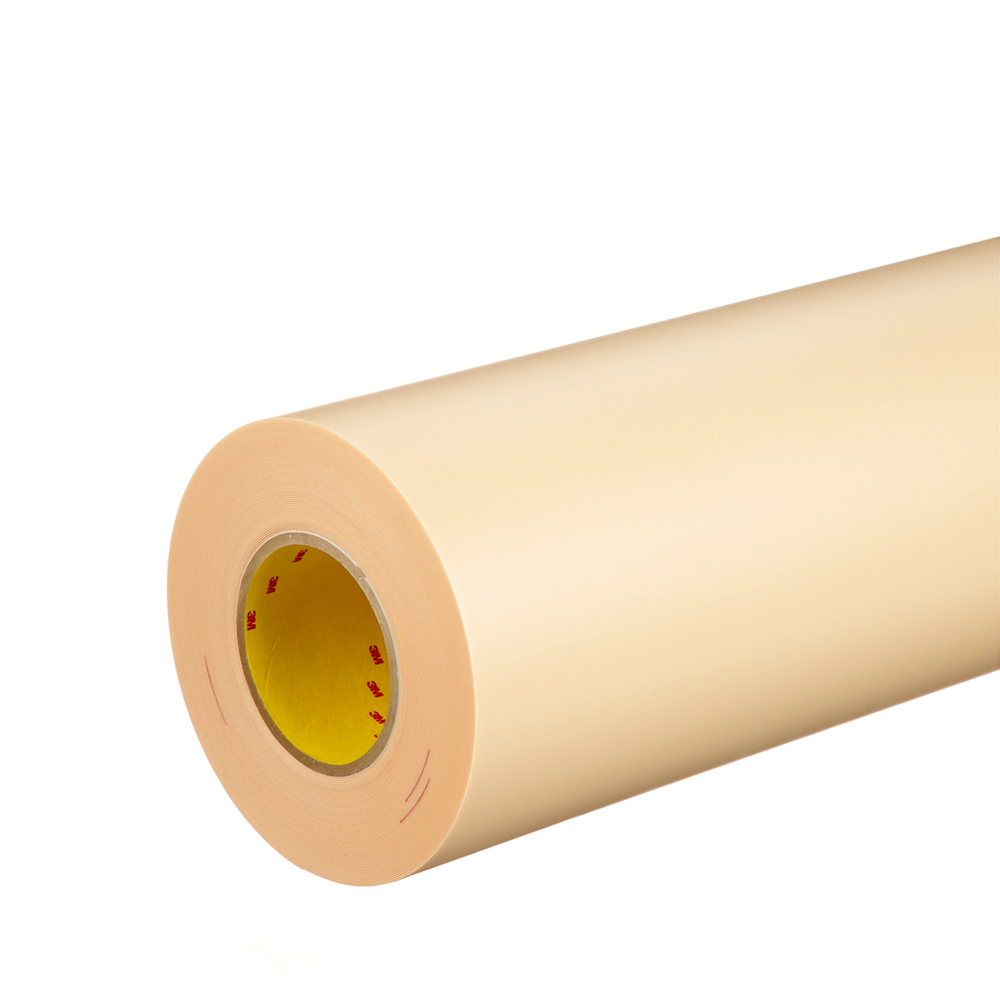

3M™ Thin Flexographic Mounting Tape 2205, Translucent, 18 in x 60 yd, 5 mil, 1 Roll/Case, 3 inch Core - 7010300501

SKU: 7010300501
MPN: 7010300501
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00076308982843
3M ID: 70006776234
5 Digit UPC: 98284
$700.69 each
Hurry up! Current stock:

Product Description

3M™ Thin Flexographic Mounting Tape 2205 is a 5 mil, double coated film tape with differential acrylic adhesives on a polyester film carrier with a polycoated kraft paper liner. This tape is specifically designed for the corrugated printing business to hold flexographic print plates to PVC saddles/carriers.

Features

  • Excellent holding power on-press with high plate side adhesion
  • 0.005 inch (0.13 mm) double-coated tape designed for the corrugated printing business to hold flexographic print plates to PVC carriers/saddles and PET carriers/saddles
  • Adhesive on non-linered side of the tape is designed for mounting of photopolymer plates
  • Embossed polycoated kraft (PCK) paper liner
  • Linered side of the tape has crosshatched pattern that allows air to escape from between the tape and the carrier
  • Clean plate removal when demounting or repositioning
Spec Sheet



Downloads

Specifications

Shelf Life365
Country of OriginUnited States
Overall Thickness (Imperial)5.0
Application Thickness (Metric) UOMmm
Backing MaterialPolyester Film
ApplicationFlexographic Plate Mounting
Total Tape Thickness without Liner (Imperial) UOMmil
Total Tape Thickness without Liner (Imperial)5.0
Primary Liner Thickness (Metric)0.1
Air ReleaseYes
Overall Width (Imperial)18.0
Overall Length (Imperial) UOMyd
Overall Length (Metric)54.86
Product ColorTransparent
Primary LinerPaper
Application Thickness (Imperial) UOMmil
Overall Length (Imperial)60.0
Overall Thickness (Imperial) UOMmil
Overall Width (Imperial) UOMin
Composite SleevesNo
Application Thickness (Imperial)5
Warranty Period1 Year from Date of Manufacture
Overall Width (Metric) UOMmm
Product FormRoll
Primary Liner Thickness (Metric) UOMmm
Urethane SleevesNo
Application Thickness (Metric)0.13
Overall Length (Metric) UOMm
Overall Width (Metric)457.2
IndustriesPaper, Print
Total Tape Thickness without Liner (Metric) UOMmm
Total Tape Thickness without Liner (Metric)0.127
