3M Products & Supplies

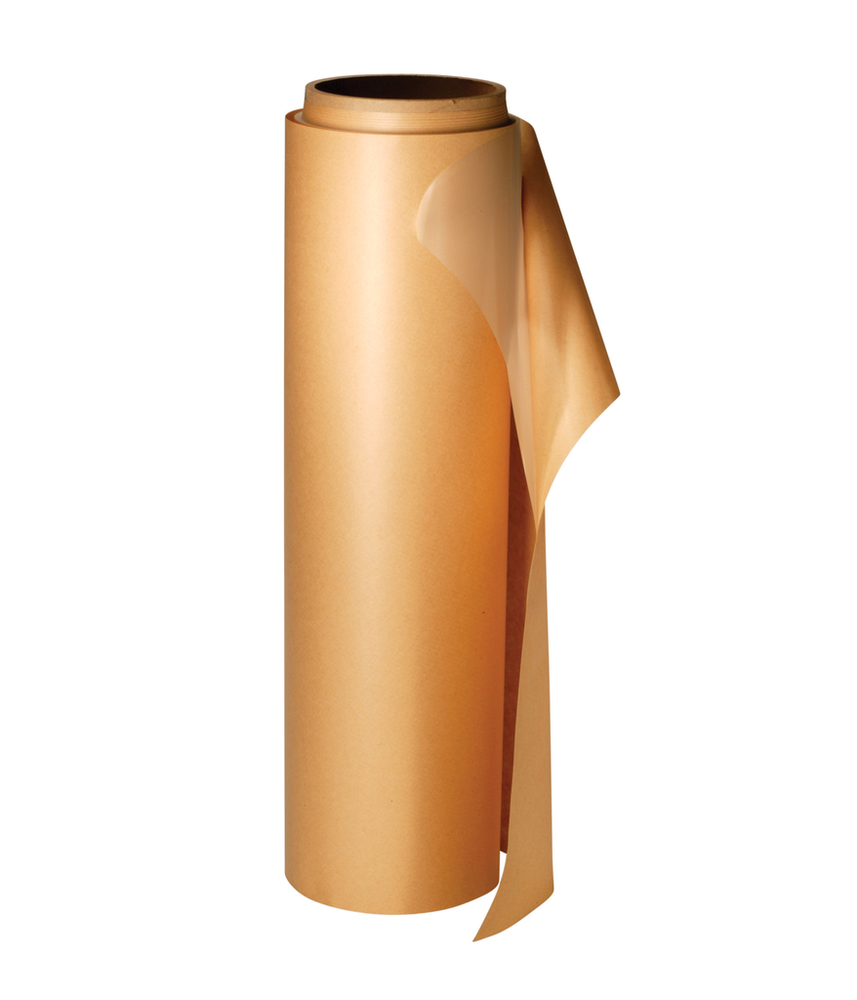

3M™ Thin Flexographic Mounting Tape 2205, Translucent, 54 in x 60 yd, 5 mil, 1 Roll/Case - 7000048951

SKU: 7000048951
MPN: 7000048951
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 50021200557540
3M ID: 70006321841
5 Digit UPC: 55754
$2,102.65 each
Hurry up! Current stock:

Product Description

3M™ Thin Flexographic Mounting Tape 2205 is a 5 mil, double coated film tape with differential acrylic adhesives on a polyester film carrier with a polycoated kraft paper liner. This tape is specifically designed for the corrugated printing business to hold flexographic print plates to PVC saddles/carriers.

Features

  • Linered side of the tape has crosshatched pattern that allows air to escape from between the tape and the carrier
  • Excellent holding power on-press with high plate side adhesion
  • 0.005 inch (0.13 mm) double-coated tape designed for the corrugated printing business to hold flexographic print plates to PVC carriers/saddles and PET carriers/saddles
  • Clean plate removal when demounting or repositioning
  • Adhesive on non-linered side of the tape is designed for mounting of photopolymer plates
  • Embossed polycoated kraft (PCK) paper liner
Spec Sheet



Downloads

Specifications

Shelf Life365
Country of OriginUnited States
Total Tape Thickness without Liner (Imperial)5.0
Urethane SleevesNo
Application Thickness (Metric) UOMmm
Overall Length (Imperial)60.0
Consumer LabelNo
Warranty Period1 Year from Date of Manufacture
Primary LinerPaper
Overall Thickness (Imperial) UOMmil
IndustriesPaper, Print
Overall Width (Imperial)54.0
Overall Thickness (Imperial)5.0
Overall Width (Metric) UOMmm
Overall Length (Imperial) UOMyd
Overall Width (Metric)1371.6
Total Tape Thickness without Liner (Metric)0.13
Primary Liner Thickness (Metric)0.1
Application Thickness (Imperial) UOMmil
Application Thickness (Imperial)5
Composite SleevesNo
Total Tape Thickness without Liner (Imperial) UOMmil
Overall Length (Metric)54.86
Product FormRoll
Units per Case1.0
Product ColorTransparent
Overall Width (Imperial) UOMin
Backing MaterialPolyester Film
Air ReleaseYes
Total Tape Thickness without Liner (Metric) UOMmm
Overall Length (Metric) UOMm
Adhesive TypeDifferential Acrylate
Application Thickness (Metric)0.13
Primary Liner Thickness (Metric) UOMmm
ApplicationFlexographic Plate Mounting
