3M Products & Supplies

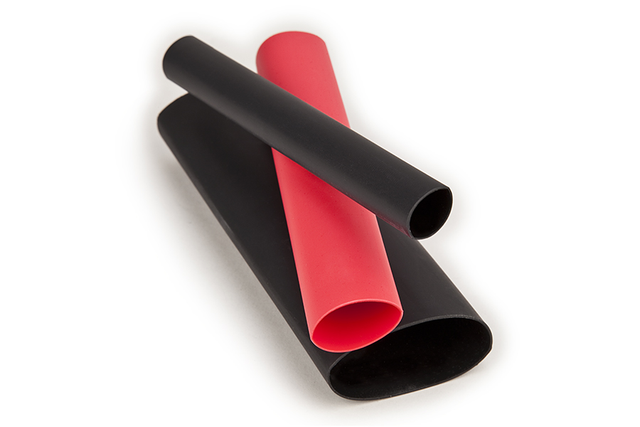

3M™ Thin-Wall Heat Shrink Tubing EPS-300, Adhesive-Lined, 1-1/2" Red 48-in stick, 24/Case - 7010399052

Sold As: 24-Pack
SKU: 7010399052
MPN: 7010399052
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128604922
3M ID: 80611608136
5 Digit UPC: 60492
$772.80 ($32.20 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Tubing EPS-300 is a dual wall tubing provides the advantage of an integral, adhesive lined construction. This flame retardant tubing with a 3:1 shrink ratio offers insulation for 600V rated applications. The flexible polyolefin construction features an internal layer of thermoplastic adhesive, which offers moisture seal protection in automotive and marine applications.

Features

  • Offers the advantage of integral, adhesive-lined construction
  • Made of black flexible polyolefin

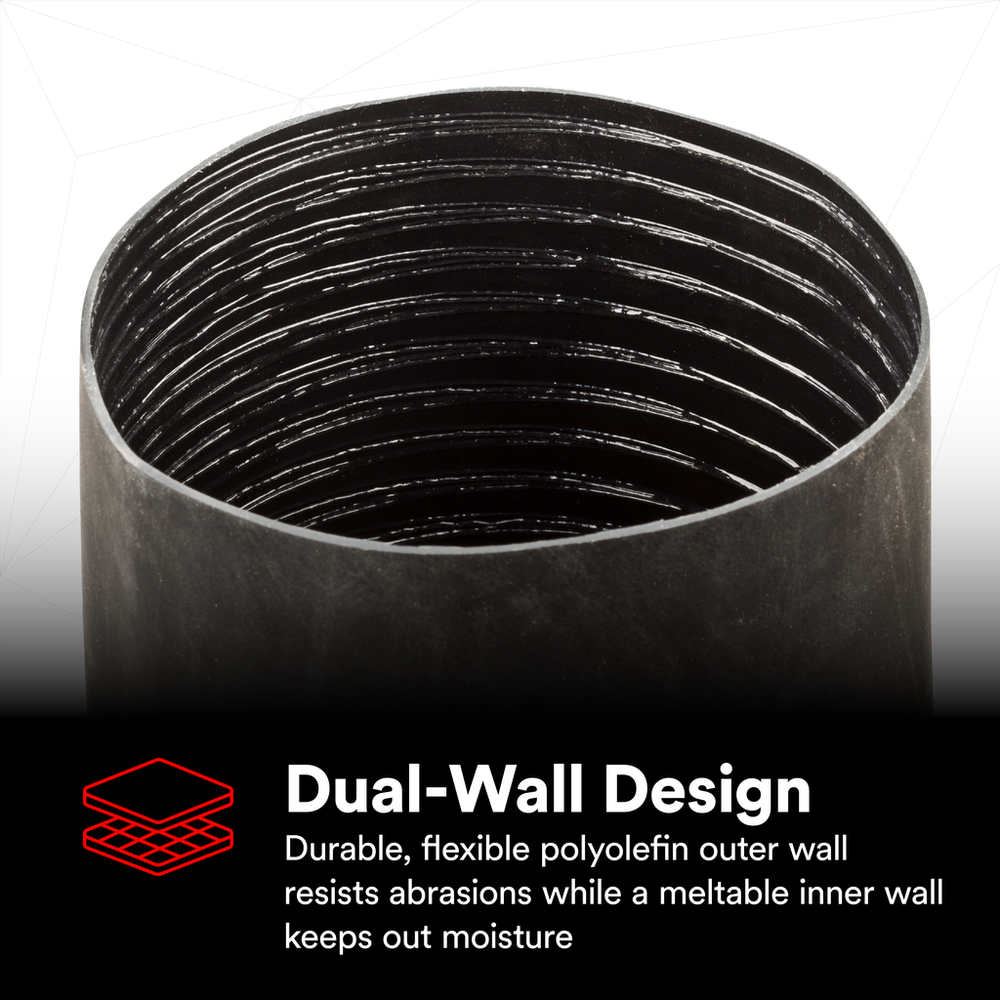

  • Dual-wall construction provides abrasion resistance and moisture-seal protection
  • Flame-retardant tubing is rated for 600V applications
  • Withstands temperatures of -67 to 230 degrees F (-55 to 110 degrees C)
  • Offers protection for automotive, truck, electronic components, wire splices, wire bundles and harness breakouts

Specifications

Shelf Life3600
Country of OriginUnited States
Maximum Operating Temperature (Fahrenheit) UOMDegree
Inner Diameter Before Shrink (Metric) UOMmm
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Maximum Operating Temperature (Celsius) UomDegree
Inner Diameter Before Shrink (Metric)38.1
Inner Diameter After Shrink (Imperial)0.51
Inner Diameter After Shrink (Imperial) UOMin
Non-CorrosiveYes
Inner Diameter After Shrink (Metric) UOMmm
Inner Diameter Before Shrink (Imperial)1.5
Maximum Operating Temperature (Fahrenheit)230.0
Maximum Operating Temperature (Celsius)110.0
Inner Diameter After Shrink (Metric)12.95
Inner Diameter Before Shrink (Imperial) UOMin
Adhesive MaterialSilicone
