3M Products & Supplies

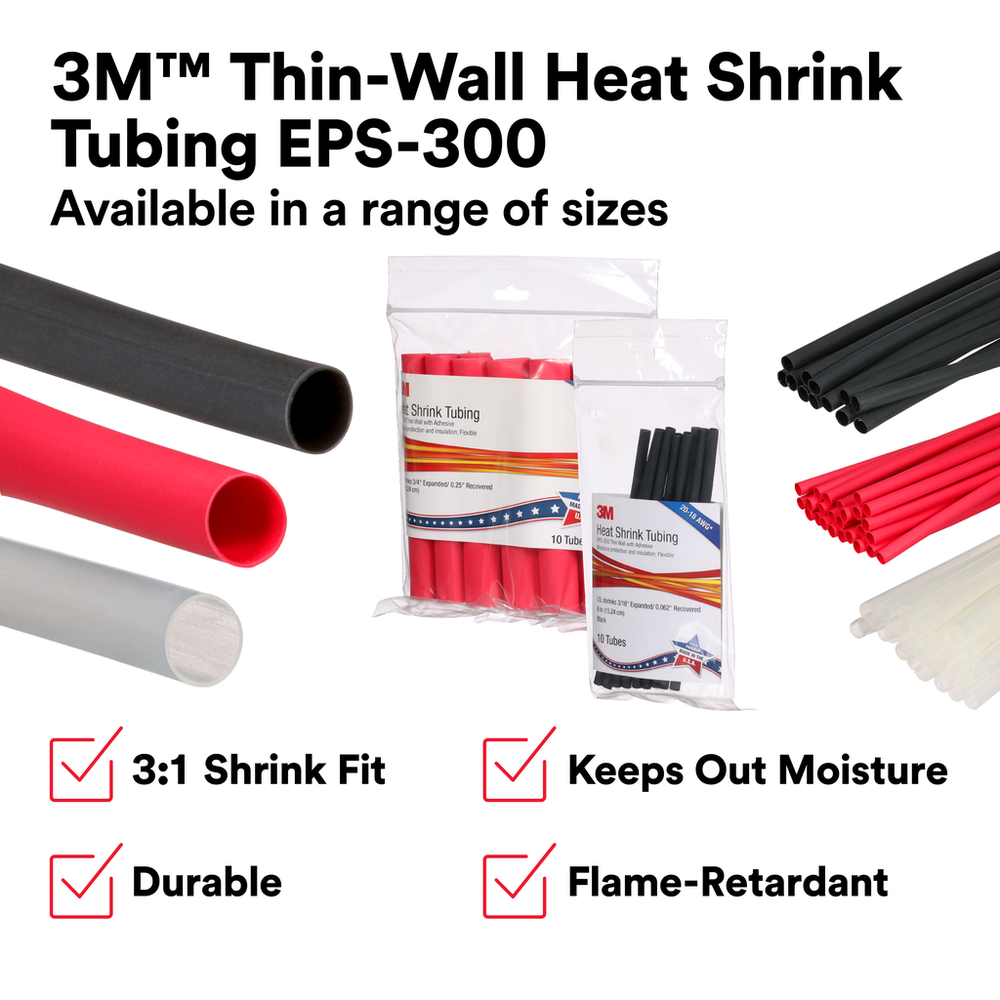

3M™ Thin-Wall Heat Shrink Tubing EPS-300, Adhesive-Lined, 1-48"-Red-24 Pcs, 48 in length sticks, 24 pieces/case - 7010398853

Sold As: 24-Pack
SKU: 7010398853
MPN: 7010398853
For an accurate lead time please contact us
UPC: 10051128597641
3M ID: 80611600257
5 Digit UPC: 59764
$410.72 ($17.11 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Tubing EPS-300 is a dual wall tubing provides the advantage of an integral, adhesive lined construction. This flame retardant tubing with a 3:1 shrink ratio offers insulation for 600V rated applications. The flexible polyolefin construction features an internal layer of thermoplastic adhesive, which offers moisture seal protection in automotive and marine applications.

Features

  • Offers the advantage of integral, adhesive-lined construction
  • Flame-retardant tubing is rated for 600V applications
  • Made of black flexible polyolefin

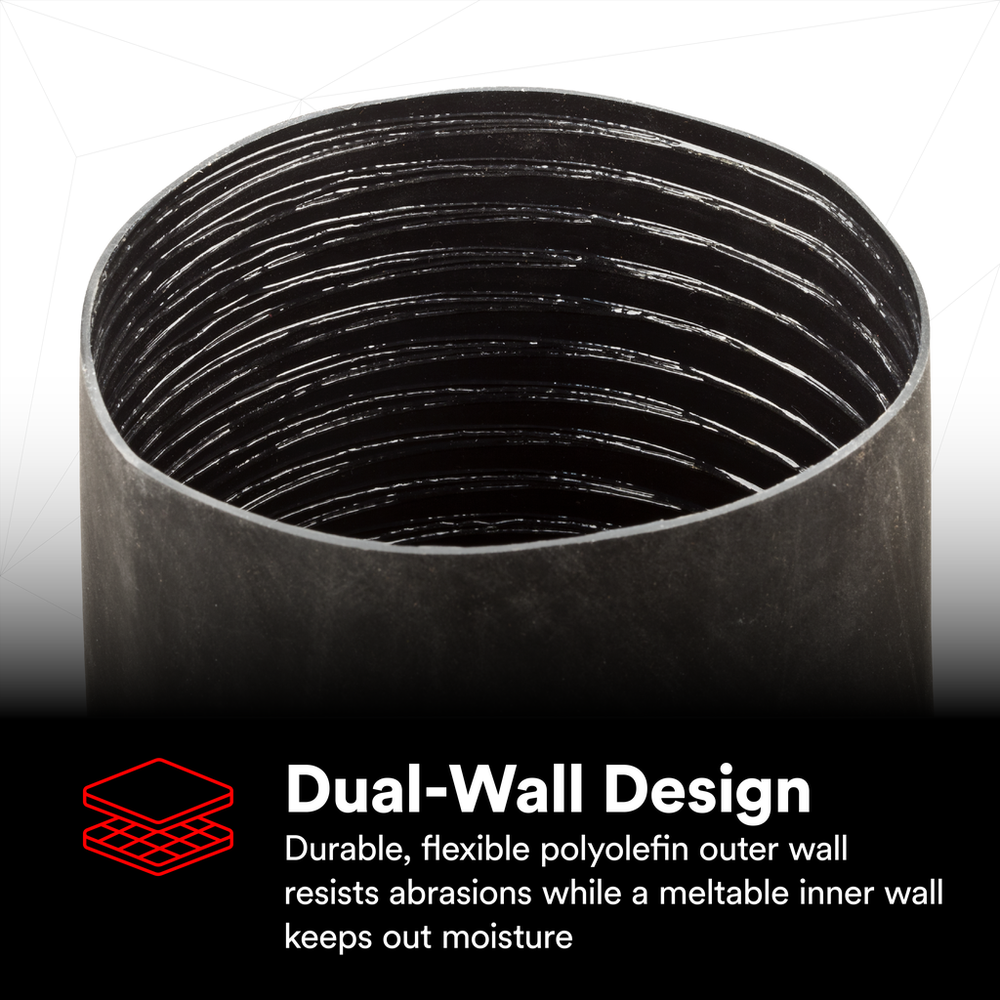

  • Dual-wall construction provides abrasion resistance and moisture-seal protection
  • Offers protection for automotive, truck, electronic components, wire splices, wire bundles and harness breakouts
  • Withstands temperatures of -67 to 230 degrees F (-55 to 110 degrees C)
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Operating Temperature (Celsius)-55 °C to 110 °C

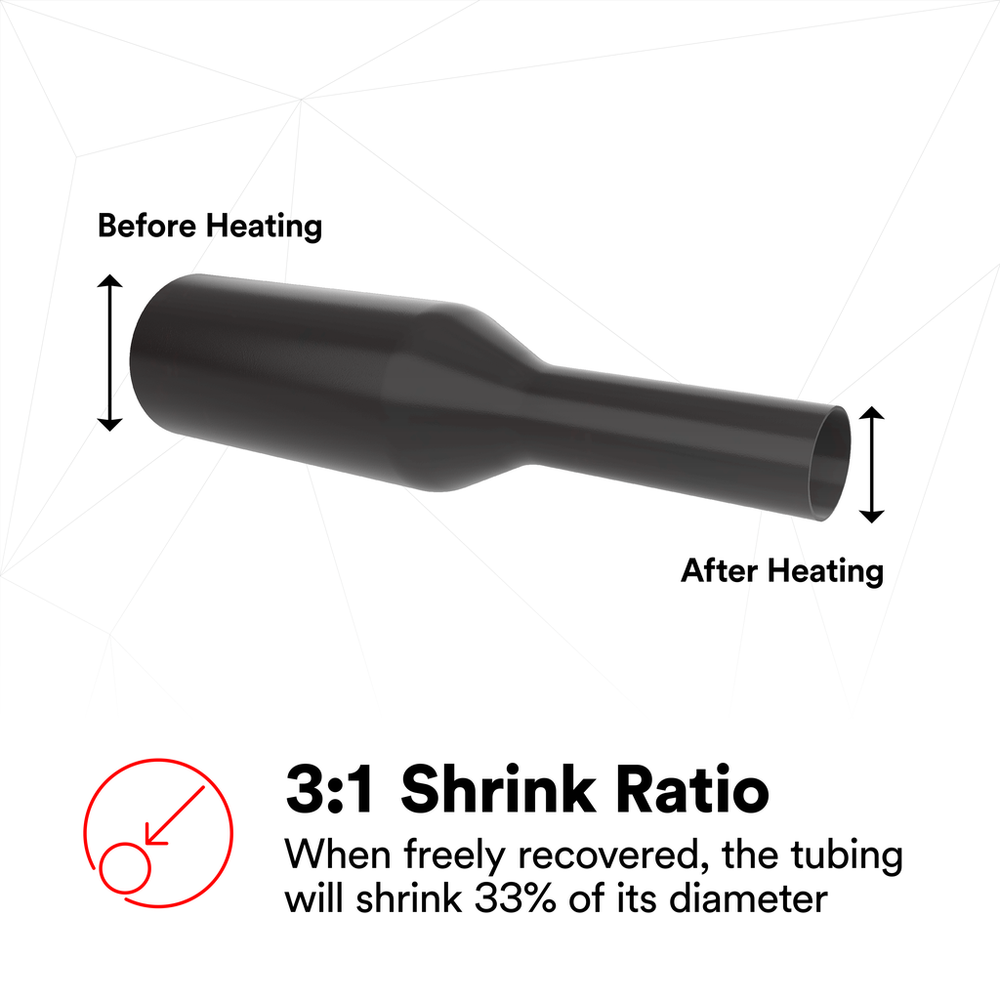

Shrink Ratio3:1
Maximum Operating Temperature (Celsius) UomDegree
Inner Diameter Before Shrink (Metric) UOMmm
Inner Diameter Before Shrink (Imperial)1.0
Maximum Operating Temperature (Fahrenheit)230.0
MaterialPolyolefin
Non-CorrosiveYes
Overall Length (Imperial)48.0
Operating Temperature (Fahrenheit)-67 °F to 230 °F
Overall Length (Imperial) UOMin
Inner Diameter After Shrink (Imperial) UOMin
Inner Diameter Before Shrink (Imperial) UOMin
Inner Diameter After Shrink (Metric)8.13
Inner Diameter After Shrink (Metric) UOMmm
Units per Case24.0
Product ColorRed
Adhesive MaterialSilicone
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Flame RetardantYes
Tubing TypeDual Wall (Adhesive Lined)
Inner Diameter After Shrink (Imperial)0.32
Maximum Operating Temperature (Celsius)110.0
Inner Diameter Before Shrink (Metric)25.4
Maximum Operating Temperature (Fahrenheit) UOMDegree
Heat Shrink TypeAdhesive-Lined Polyolefin Heat Shrink Tubing
Minimum Expanded Tubing I. D.1.0
Minimum Expanded Tubing I. D. UOMin
