3M Products & Supplies

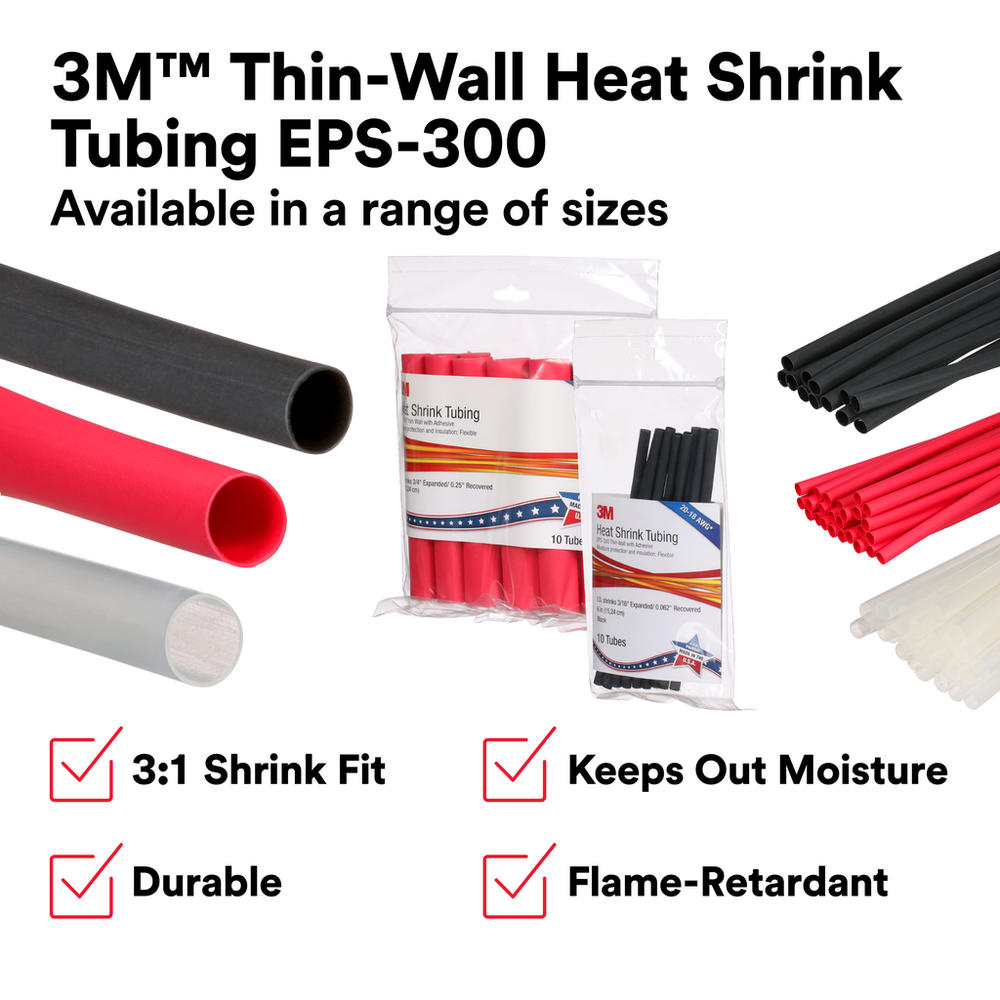

3M™ Thin-Wall Heat Shrink Tubing EPS-300, Adhesive-Lined, 1-48"-Clear-24 Pcs, 48 in length sticks, 24 pieces/case - 7100088823

Sold As: 24-Pack
SKU: 7100088823
MPN: 7100088823
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128597606
3M ID: 80611600216
5 Digit UPC: 59760
$590.78 ($24.62 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Tubing EPS-300 is a dual wall tubing provides the advantage of an integral, adhesive lined construction. This flame retardant tubing with a 3:1 shrink ratio offers insulation for 600V rated applications. The flexible polyolefin construction features an internal layer of thermoplastic adhesive, which offers moisture seal protection in automotive and marine applications.

Features

  • Offers protection for automotive, truck, electronic components, wire splices, wire bundles and harness breakouts

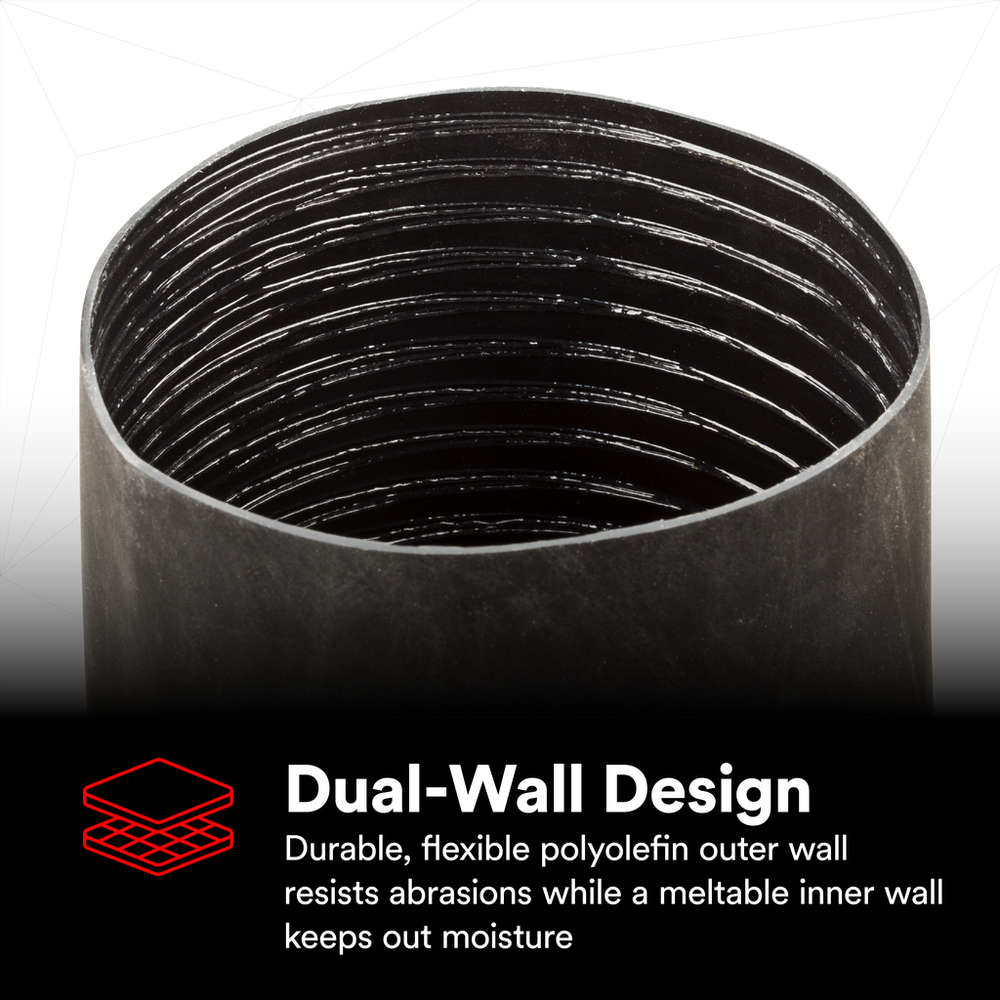

  • Dual-wall construction provides abrasion resistance and moisture-seal protection
  • Flame-retardant tubing is rated for 600V applications
  • Made of black flexible polyolefin

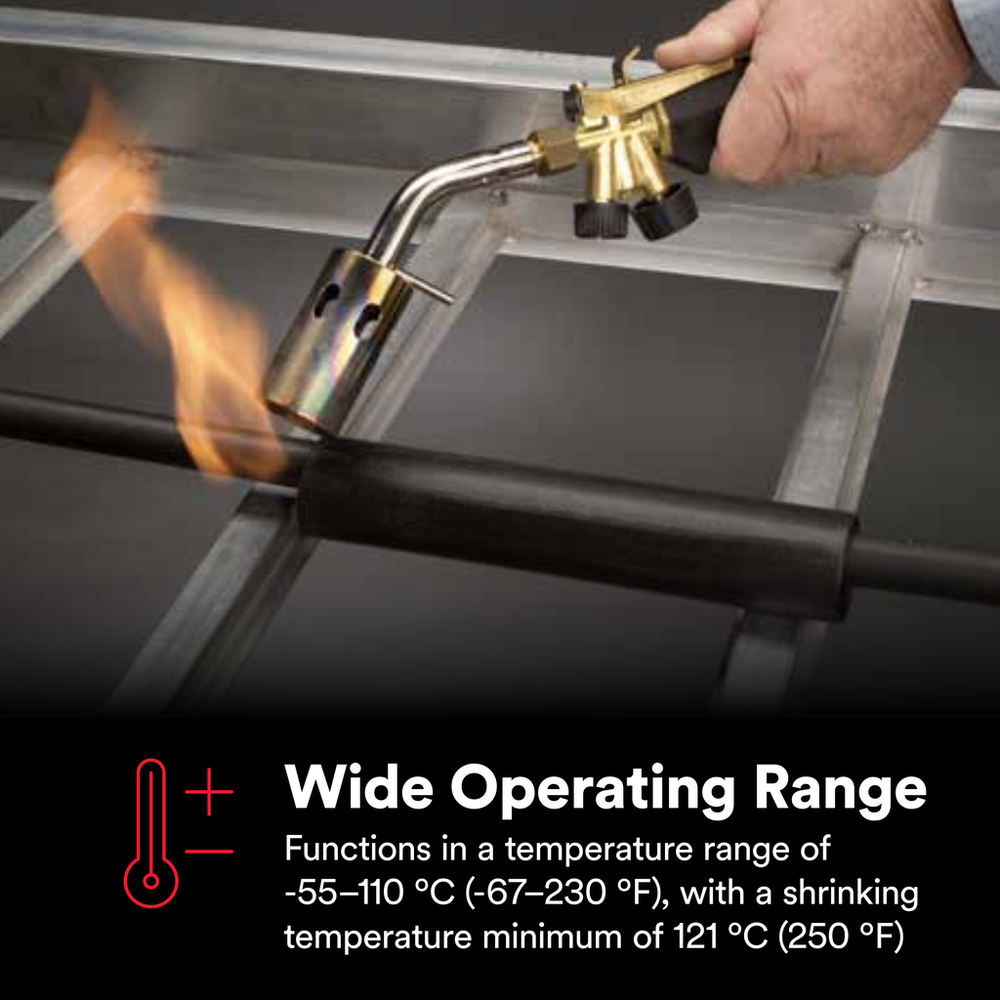

  • Withstands temperatures of -67 to 230 degrees F (-55 to 110 degrees C)
  • Offers the advantage of integral, adhesive-lined construction
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States

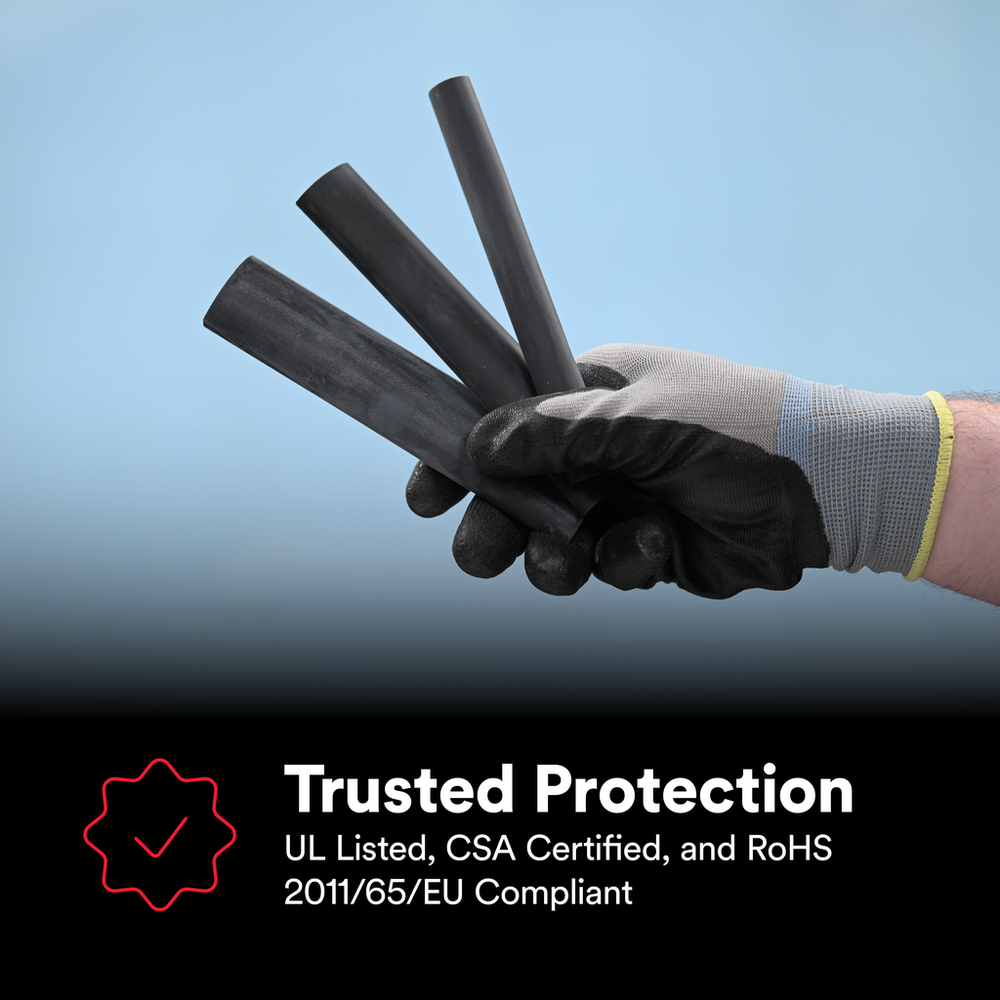

RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Inner Diameter Before Shrink (Metric)25.4
Adhesive MaterialSilicone
Flame RetardantYes
Maximum Operating Temperature (Celsius) UomDegree
Maximum Operating Temperature (Celsius)110.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Operating Temperature (Celsius)-55 °C to 110 °C
Operating Temperature (Fahrenheit)-67 °F to 230 °F
Units per Case24.0
Non-CorrosiveYes
Heat Shrink TypeAdhesive-Lined Polyolefin Heat Shrink Tubing
Maximum Operating Temperature (Fahrenheit)230.0
Inner Diameter After Shrink (Imperial)0.5
Elongation UOM%
Inner Diameter Before Shrink (Imperial)1.0
Overall Length (Imperial)48.0
Operating Temperature Range (Fahrenheit)-67 °F to 230 °F

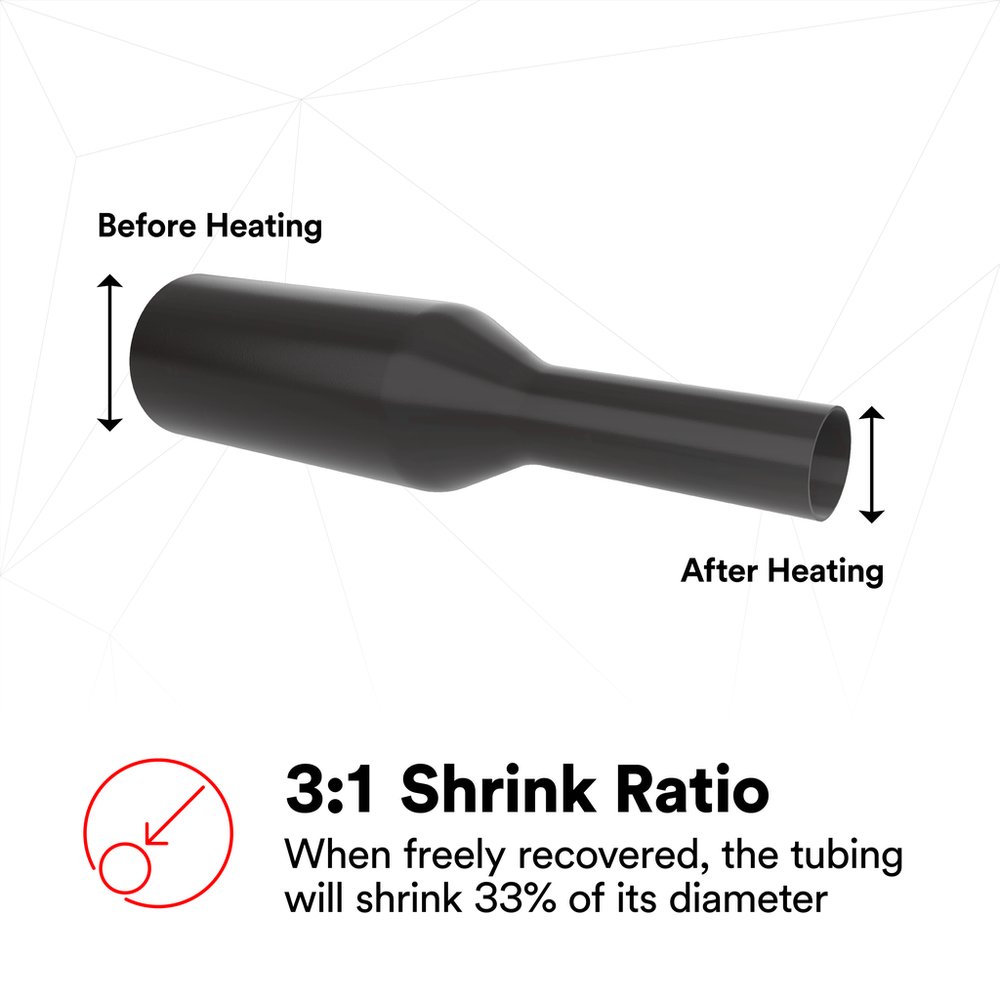

Shrink Ratio3:1
Minimum Expanded Tubing I. D.1.0
Minimum Expanded Tubing I. D. UOMin
Inner Diameter Before Shrink (Imperial) UOMin
Product ColorTransparent
Inner Diameter After Shrink (Metric)12.7
Inner Diameter After Shrink (Metric) UOMmm
Inner Diameter Before Shrink (Metric) UOMmm
MaterialPolyolefin
Operating Temperature Range (Celsius)-55 °C to 110 °C
Tubing TypeDual Wall (Adhesive Lined)
Inner Diameter After Shrink (Imperial) UOMin
Overall Length (Imperial) UOMin
