3M Products & Supplies

3M™ Thin-Wall Heat Shrink Tubing EPS-300, Adhesive-Lined, 1/8-48"-Clear-250 Pcs, 48 in length sticks, 250 pieces/case - 7100092039

Sold As: 250-Pack
SKU: 7100092039
MPN: 7100092039
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128597699
3M ID: 80611600307
5 Digit UPC: 59769
$1,419.99 ($5.68 / Count)
Hurry up! Current stock:

Product Description

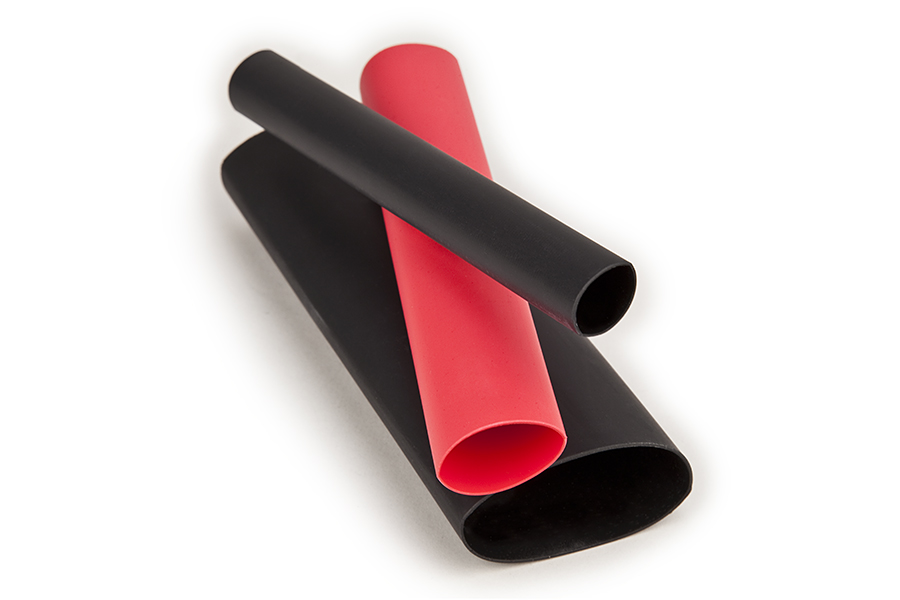

3M™ Heat Shrink Tubing EPS-300 is a dual wall tubing provides the advantage of an integral, adhesive lined construction. This flame retardant tubing with a 3:1 shrink ratio offers insulation for 600V rated applications. The flexible polyolefin construction features an internal layer of thermoplastic adhesive, which offers moisture seal protection in automotive and marine applications.

Features

  • Flame-retardant tubing is rated for 600V applications
  • Made of black flexible polyolefin

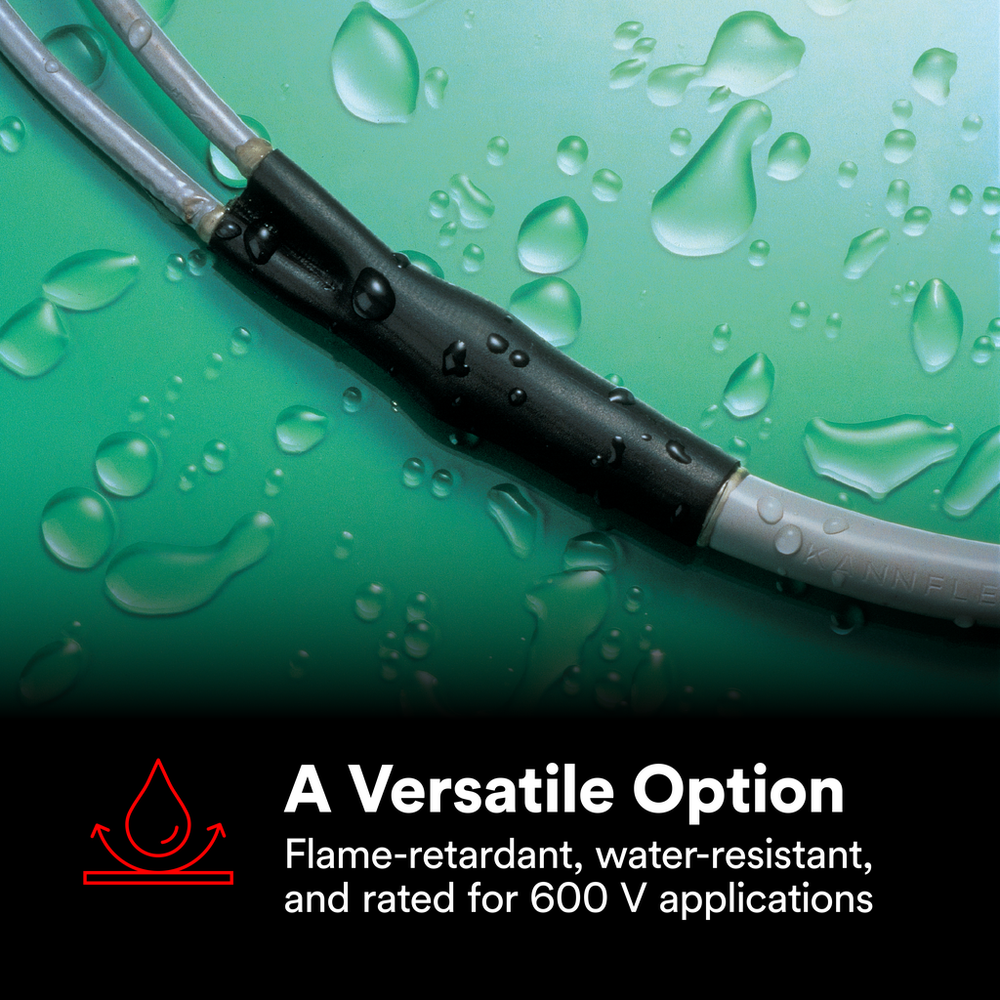

  • Offers protection for automotive, truck, electronic components, wire splices, wire bundles and harness breakouts
  • Offers the advantage of integral, adhesive-lined construction
  • Dual-wall construction provides abrasion resistance and moisture-seal protection
  • Withstands temperatures of -67 to 230 degrees F (-55 to 110 degrees C)
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Inner Diameter After Shrink (Metric)1.02
Non-CorrosiveYes
Inner Diameter After Shrink (Imperial)0.04
Inner Diameter Before Shrink (Imperial)0.125
Maximum Operating Temperature (Fahrenheit) UOMDegree
Operating Temperature Range (Celsius)-55 °C to 110 °C
Product ColorTransparent
Maximum Operating Temperature (Fahrenheit)230.0
Inner Diameter Before Shrink (Imperial) UOMin
Overall Length (Imperial) UOMin
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Operating Temperature (Fahrenheit)-67 °F to 230 °F
Operating Temperature Range (Fahrenheit)-67 °F to 230 °F
Heat Shrink TypeAdhesive-Lined Polyolefin Heat Shrink Tubing
Operating Temperature (Celsius)-55 °C to 110 °C
Tubing TypeDual Wall (Adhesive Lined)
Flame RetardantYes
Inner Diameter After Shrink (Imperial) UOMin
Minimum Expanded Tubing I. D.0.125
Minimum Expanded Tubing I. D. UOMin
MaterialPolyolefin
Units per Case250.0
Inner Diameter After Shrink (Metric) UOMmm
Elongation UOMdB
Maximum Operating Temperature (Celsius) UomDegree
Maximum Operating Temperature (Celsius)110.0
Adhesive MaterialSilicone
Inner Diameter Before Shrink (Metric) UOMmm
Inner Diameter Before Shrink (Metric)3.18
Shrink Ratio3:1
Overall Length (Imperial)48.0
