3M Products & Supplies

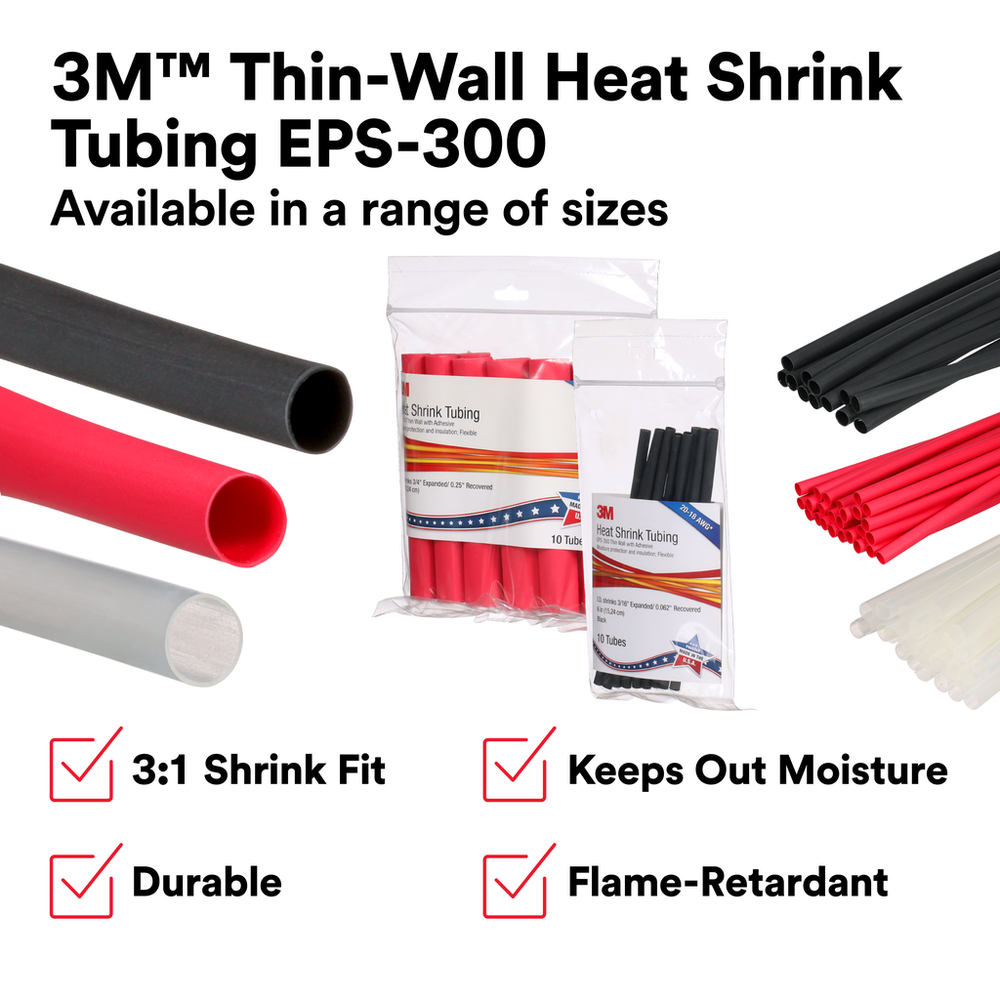

3M™ Thin-Wall Heat Shrink Tubing EPS-300, Adhesive-Lined, -3/16-48"-Clear-250 Pcs, 48 in length sticks, 250 pieces/case - 7100092054

Sold As: 250-Pack
SKU: 7100092054
MPN: 7100092054
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128597552
3M ID: 80611600166
5 Digit UPC: 59755
$1,346.42 ($5.39 / Count)
Hurry up! Current stock:

Product Description

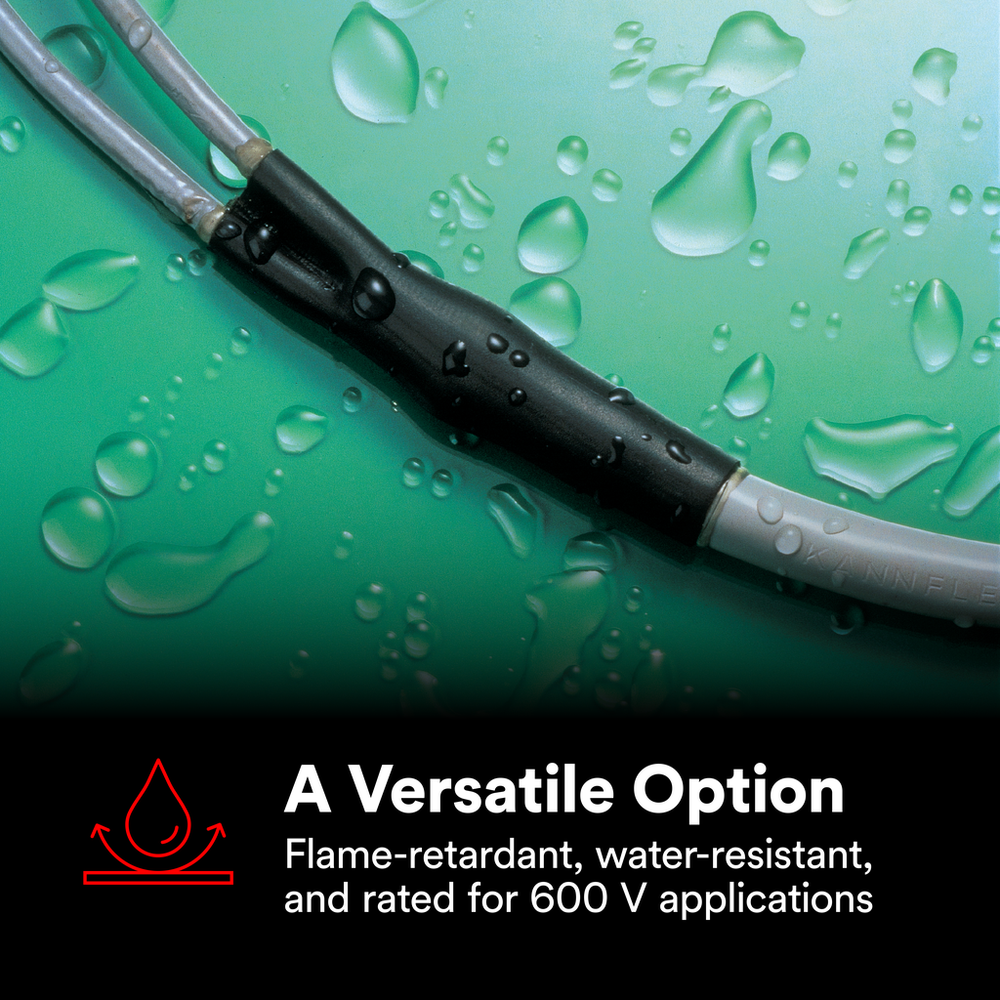

3M™ Heat Shrink Tubing EPS-300 is a dual wall tubing provides the advantage of an integral, adhesive lined construction. This flame retardant tubing with a 3:1 shrink ratio offers insulation for 600V rated applications. The flexible polyolefin construction features an internal layer of thermoplastic adhesive, which offers moisture seal protection in automotive and marine applications.

Features

  • Withstands temperatures of -67 to 230 degrees F (-55 to 110 degrees C)
  • Flame-retardant tubing is rated for 600V applications
  • Offers protection for automotive, truck, electronic components, wire splices, wire bundles and harness breakouts
  • Made of black flexible polyolefin

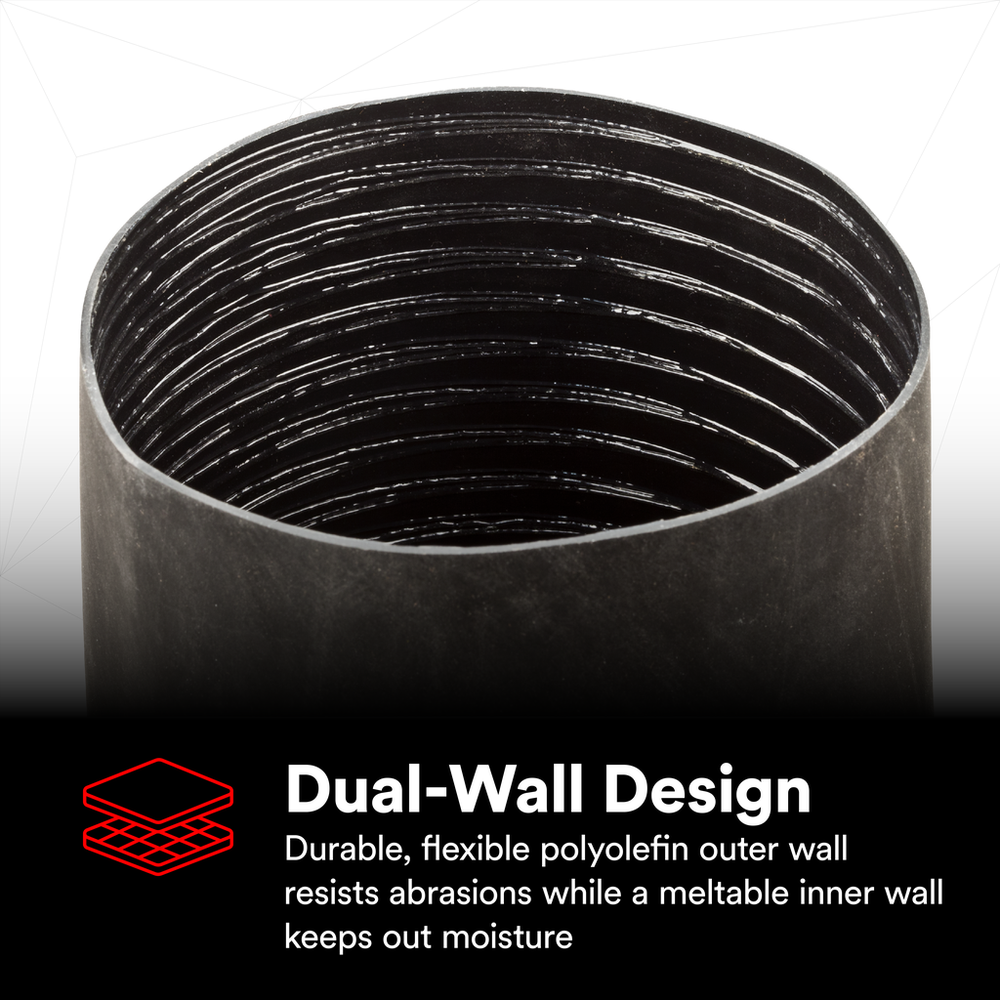

  • Dual-wall construction provides abrasion resistance and moisture-seal protection
  • Offers the advantage of integral, adhesive-lined construction
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Inner Diameter After Shrink (Imperial) UOMin
Product ColorTransparent
Overall Length (Imperial) UOMin
Inner Diameter Before Shrink (Imperial)0.187
Flame RetardantYes
Minimum Expanded Tubing I. D.0.187
Overall Length (Imperial)48.0
Inner Diameter After Shrink (Metric) UOMmm
Inner Diameter Before Shrink (Metric) UOMmm
Minimum Expanded Tubing I. D. UOMin
Inner Diameter After Shrink (Imperial)0.063
Maximum Operating Temperature (Fahrenheit) UOMDegree
Maximum Operating Temperature (Fahrenheit)230.0
Operating Temperature (Fahrenheit)-67 °F to 230 °F
Operating Temperature (Celsius)-55 °C to 110 °C
Inner Diameter After Shrink (Metric)1.6
Heat Shrink TypeAdhesive-Lined Polyolefin Heat Shrink Tubing
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Non-CorrosiveYes
Adhesive MaterialSilicone
Elongation UOM%
Maximum Operating Temperature (Celsius) UomDegree
Inner Diameter Before Shrink (Metric)4.8
Shrink Ratio3:1
Tubing TypeDual Wall (Adhesive Lined)
Units per Case250.0
Operating Temperature Range (Fahrenheit)-67 °F to 230 °F
Inner Diameter Before Shrink (Imperial) UOMin
Maximum Operating Temperature (Celsius)110.0
MaterialPolyolefin
Operating Temperature Range (Celsius)-55 °C to 110 °C
