3M Products & Supplies

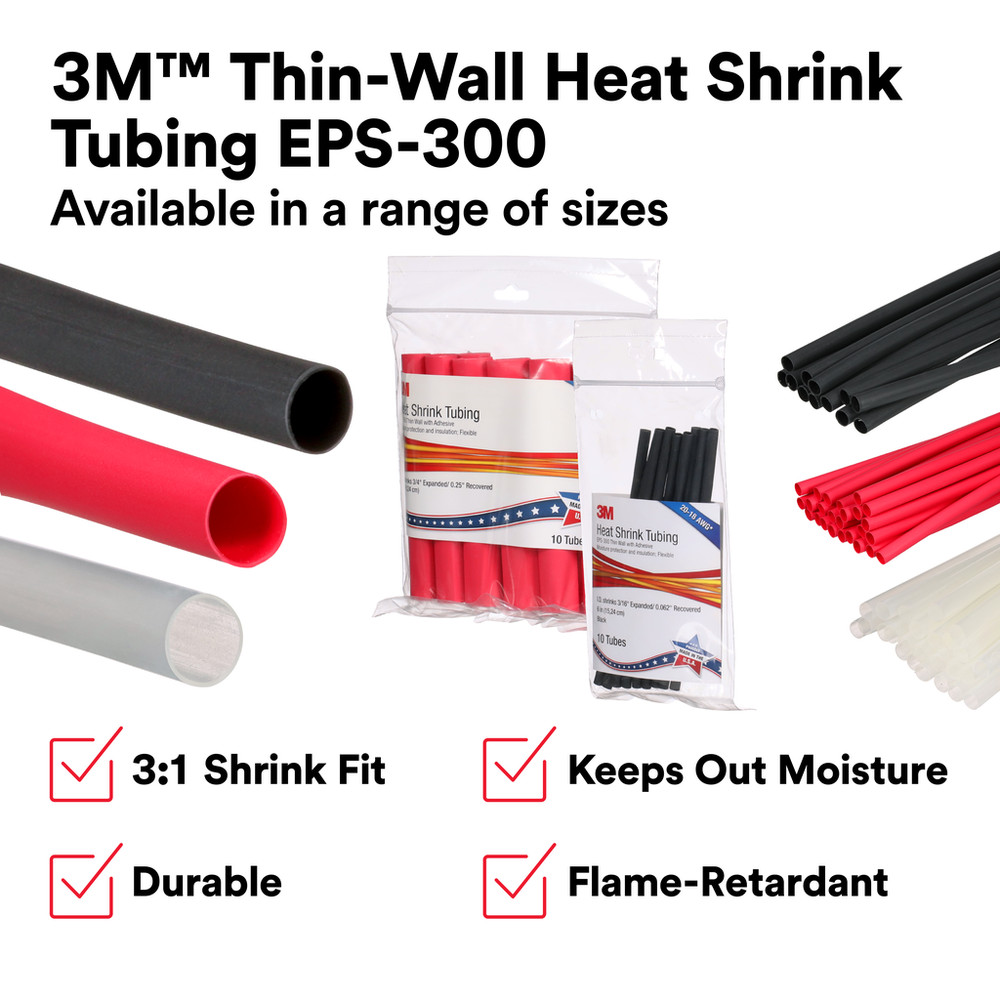

3M™ Thin-Wall Heat Shrink Tubing EPS-300, Adhesive-Lined, 3/16-48"-Black-250 Pcs, 48 in length sticks, 250 pieces/case - 7000133613

Sold As: 250-Pack
SKU: 7000133613
MPN: 7000133613
For an accurate lead time please contact us
UPC: 10051128599171
3M ID: 80611601784
5 Digit UPC: 59917
$1,293.32 ($5.17 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Tubing EPS-300 is a dual wall tubing provides the advantage of an integral, adhesive lined construction. This flame retardant tubing with a 3:1 shrink ratio offers insulation for 600V rated applications. The flexible polyolefin construction features an internal layer of thermoplastic adhesive, which offers moisture seal protection in automotive and marine applications.

Features

  • Offers protection for automotive, truck, electronic components, wire splices, wire bundles and harness breakouts

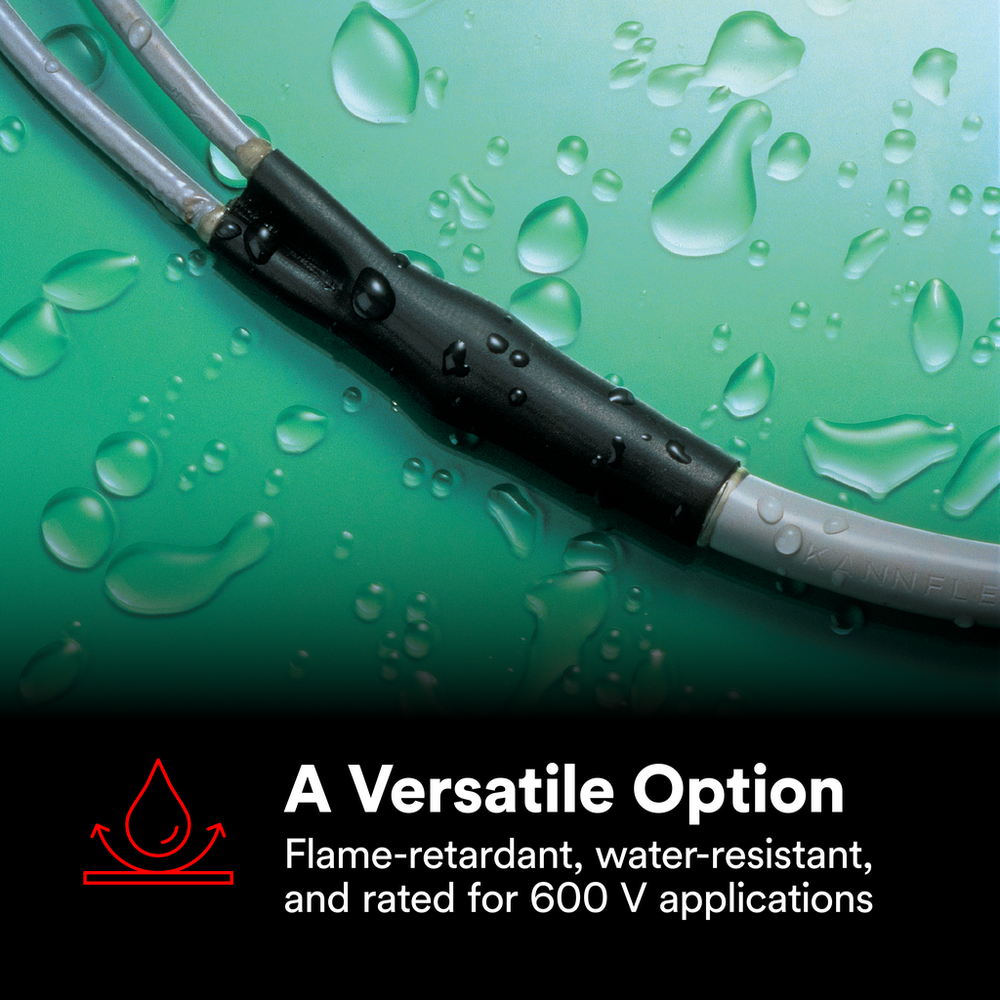

  • Flame-retardant tubing is rated for 600V applications
  • Dual-wall construction provides abrasion resistance and moisture-seal protection

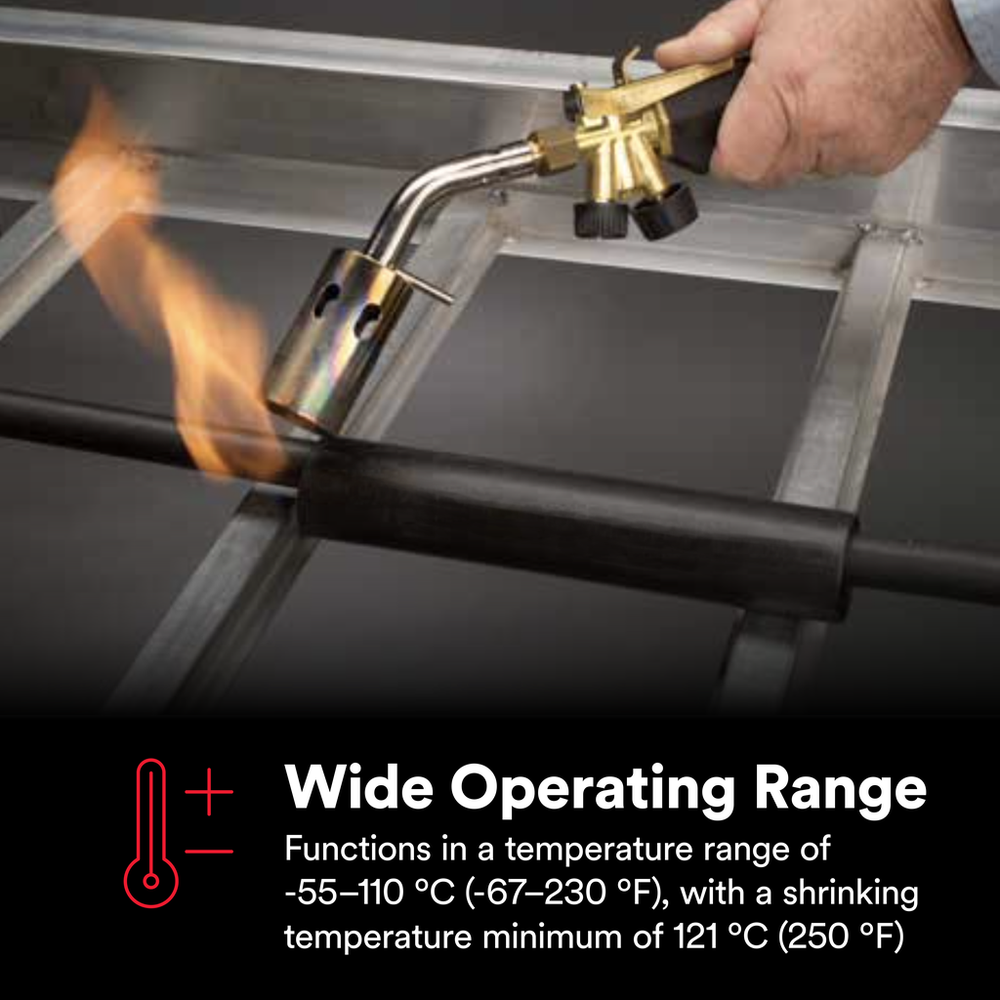

  • Withstands temperatures of -67 to 230 degrees F (-55 to 110 degrees C)
  • Offers the advantage of integral, adhesive-lined construction
  • Made of black flexible polyolefin
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Product ColorBlack
Tubing TypeDual Wall (Adhesive Lined)
MaterialPolyolefin
Overall Length (Imperial) UOMin
Maximum Operating Temperature (Fahrenheit)230.0
Inner Diameter Before Shrink (Imperial)0.187
Shrink Ratio3:1
Maximum Operating Temperature (Fahrenheit) UOMDegree
Minimum Expanded Tubing I. D.0.187
Minimum Expanded Tubing I. D. UOMin
Inner Diameter Before Shrink (Metric)4.75
Operating Temperature Range (Fahrenheit)-67 °F to 230 °F
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Adhesive MaterialSilicone
Inner Diameter After Shrink (Metric) UOMmm
Inner Diameter Before Shrink (Metric) UOMmm
Flame RetardantYes
Overall Length (Imperial)48.0
Dielectric Strength (V/mil)500 V/mil
Operating Temperature Range (Celsius)-55 °C to 110 °C
Elongation UOM%
Inner Diameter After Shrink (Imperial)0.062
Operating Temperature (Celsius)-55 °C to 110 °C
Inner Diameter Before Shrink (Imperial) UOMin
UL File NumberE-157227
Units per Case250.0
Heat Shrink TypeAdhesive-Lined Polyolefin Heat Shrink Tubing
Maximum Operating Temperature (Celsius) UomDegree
Inner Diameter After Shrink (Imperial) UOMin
Operating Temperature (Fahrenheit)-67 °F to 230 °F
Inner Diameter After Shrink (Metric)1.57
Maximum Operating Temperature (Celsius)110.0
Non-CorrosiveYes
