3M Products & Supplies

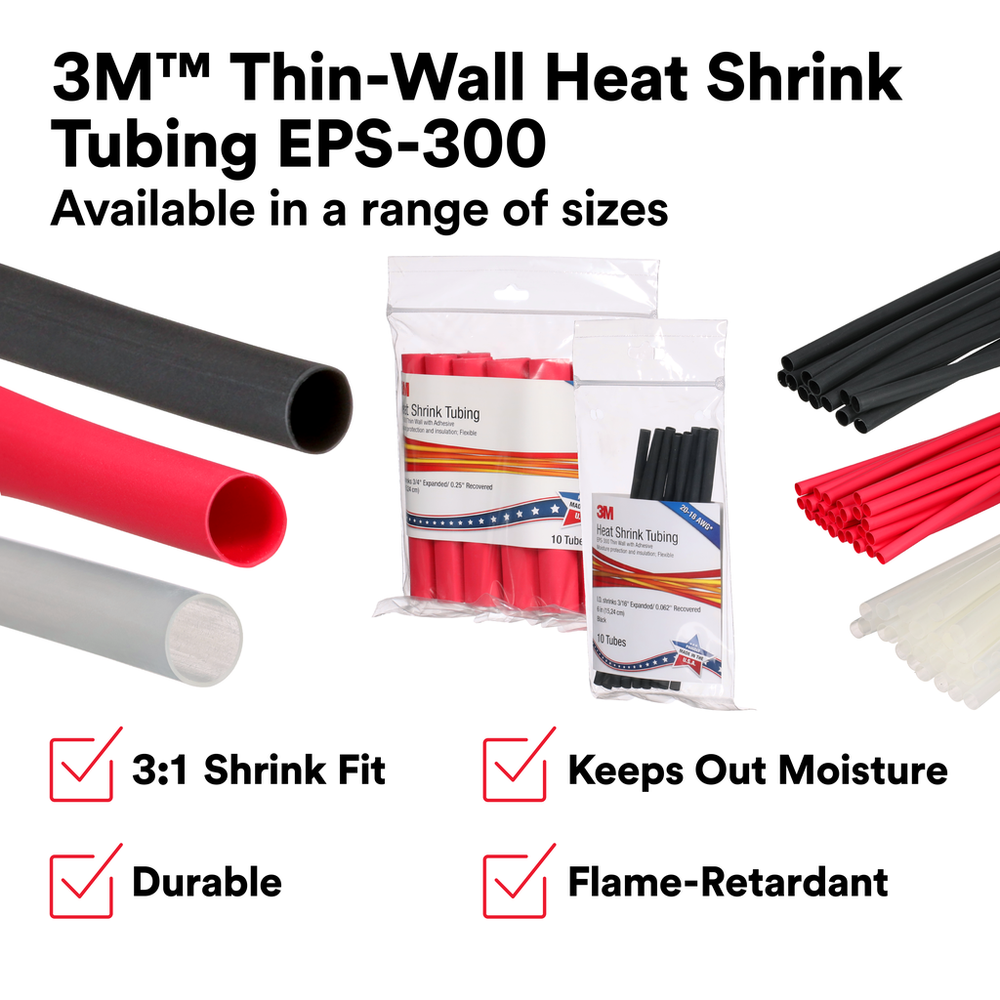

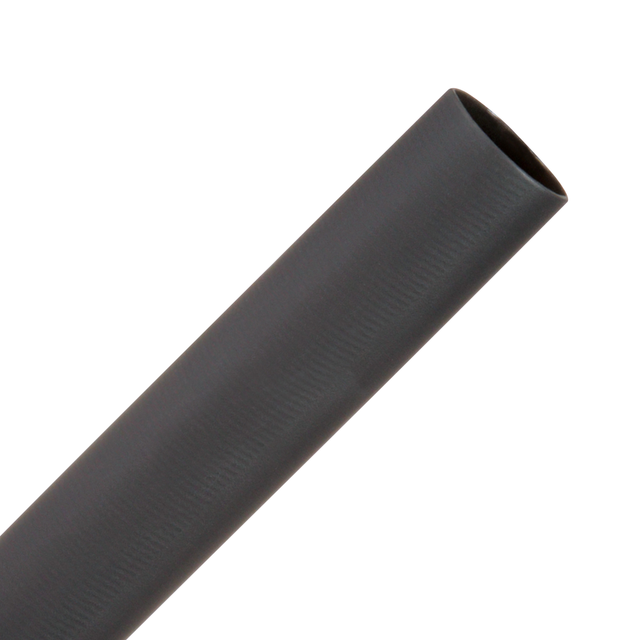

3M™ Thin-Wall Heat Shrink Tubing EPS-300, Adhesive-Lined, 3/16-48"-Black-12 Pcs, 48 in length sticks, 12 pieces/case - 7000133580

Sold As: 12-Pack
SKU: 7000133580
MPN: 7000133580
For an accurate lead time please contact us
UPC: 00051128597286
3M ID: 80611473895
5 Digit UPC: 59728
$178.88 ($14.91 / Count)
Hurry up! Current stock:

Product Description

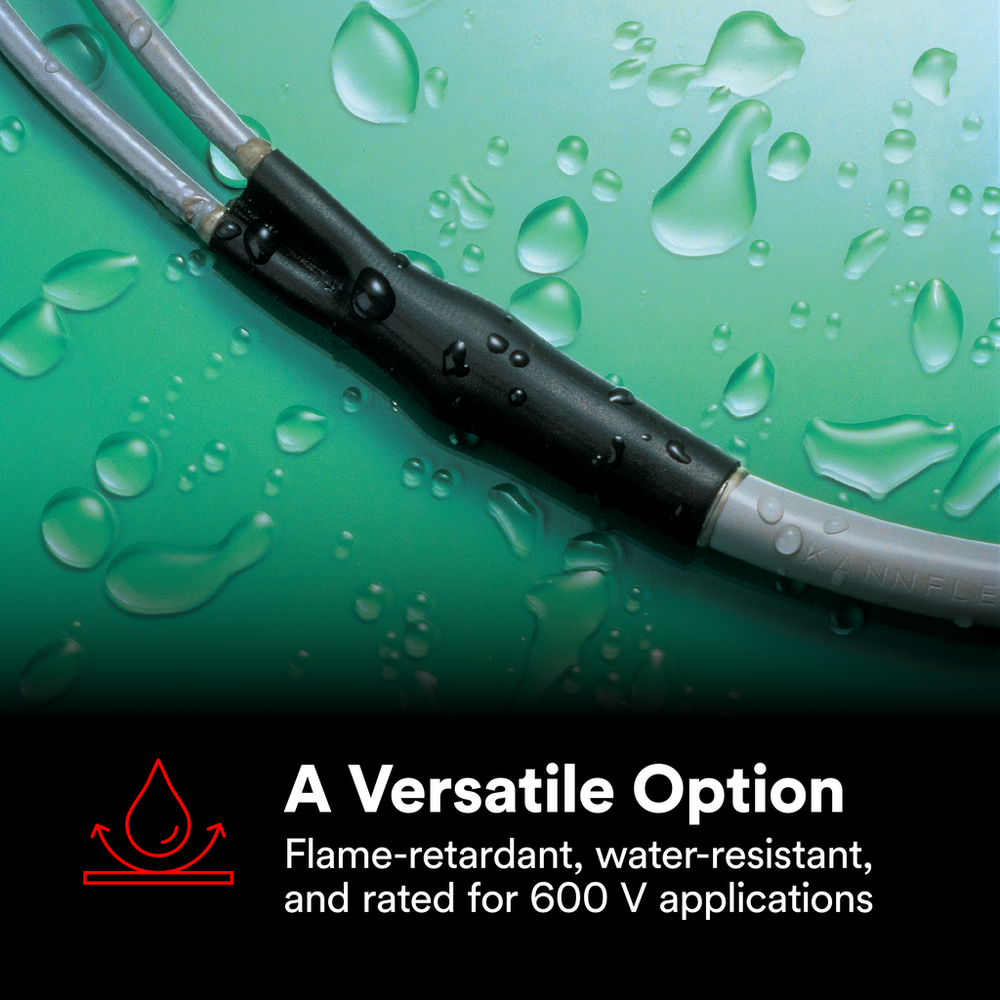

3M™ Heat Shrink Tubing EPS-300 is a dual wall tubing provides the advantage of an integral, adhesive lined construction. This flame retardant tubing with a 3:1 shrink ratio offers insulation for 600V rated applications. The flexible polyolefin construction features an internal layer of thermoplastic adhesive, which offers moisture seal protection in automotive and marine applications.

Features

  • Withstands temperatures of -67 to 230 degrees F (-55 to 110 degrees C)
  • Flame-retardant tubing is rated for 600V applications
  • Made of black flexible polyolefin
  • Dual-wall construction provides abrasion resistance and moisture-seal protection
  • Offers the advantage of integral, adhesive-lined construction
  • Offers protection for automotive, truck, electronic components, wire splices, wire bundles and harness breakouts
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Minimum Expanded Tubing I. D. UOMin
Tubing TypeDual Wall (Adhesive Lined)
Inner Diameter After Shrink (Imperial) UOMin
Non-CorrosiveYes
Units per Case12.0
Inner Diameter After Shrink (Metric) UOMmm
MaterialPolyolefin
Adhesive MaterialSilicone
Overall Length (Imperial) UOMin
Operating Temperature (Fahrenheit)-67 °F to 230 °F
Inner Diameter Before Shrink (Metric)4.75
Maximum Operating Temperature (Fahrenheit) UOMDegree
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Inner Diameter After Shrink (Imperial)0.062
Minimum Expanded Tubing I. D.0.187
Inner Diameter Before Shrink (Imperial) UOMin
Maximum Operating Temperature (Celsius) UomDegree
Operating Temperature Range (Celsius)-55 °C to 110 °C
Heat Shrink TypeAdhesive-Lined Polyolefin Heat Shrink Tubing
Overall Length (Imperial)48.0
Maximum Operating Temperature (Celsius)110.0
Maximum Operating Temperature (Fahrenheit)230.0
Elongation UOM%
Product ColorBlack
Flame RetardantYes
Operating Temperature Range (Fahrenheit)-67 °F to 230 °F
Inner Diameter After Shrink (Metric)1.57
Operating Temperature (Celsius)-55 °C to 110 °C
Inner Diameter Before Shrink (Metric) UOMmm
Inner Diameter Before Shrink (Imperial)0.187
Shrink Ratio3:1
UL File NumberE-157227
