3M Products & Supplies

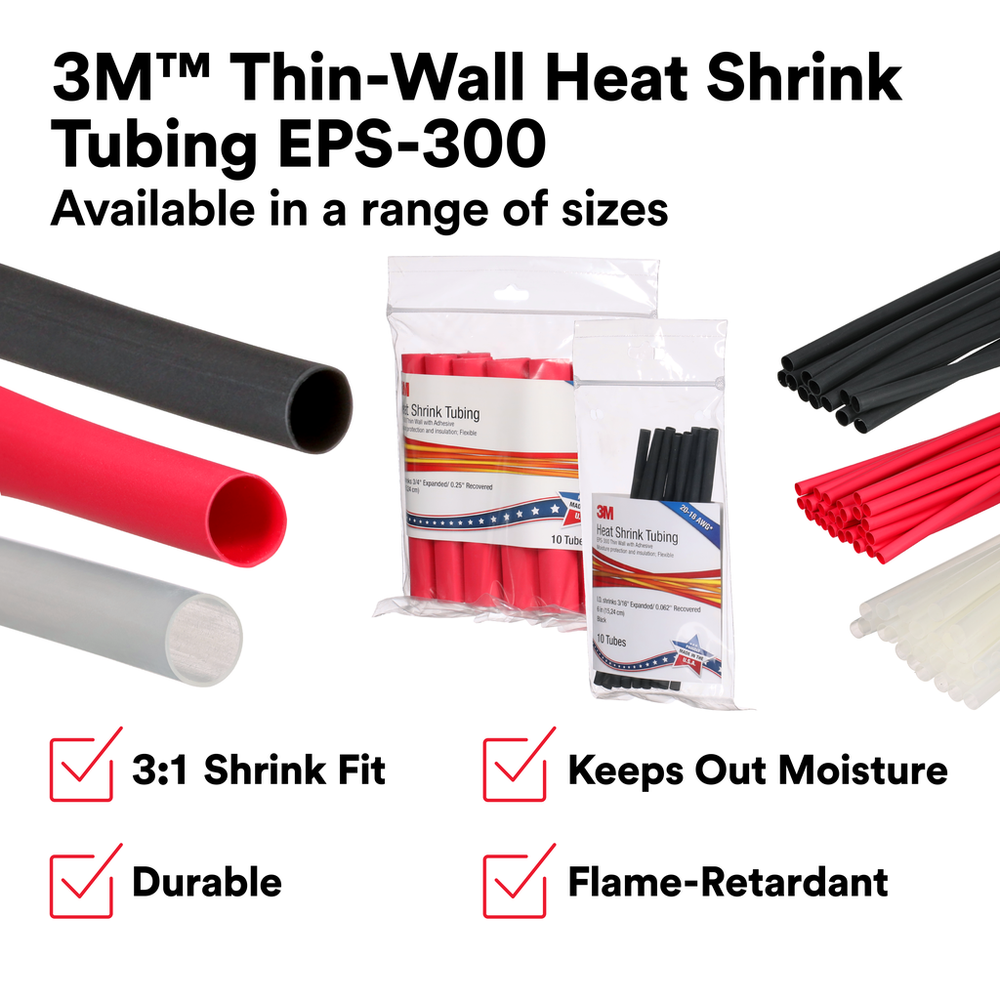

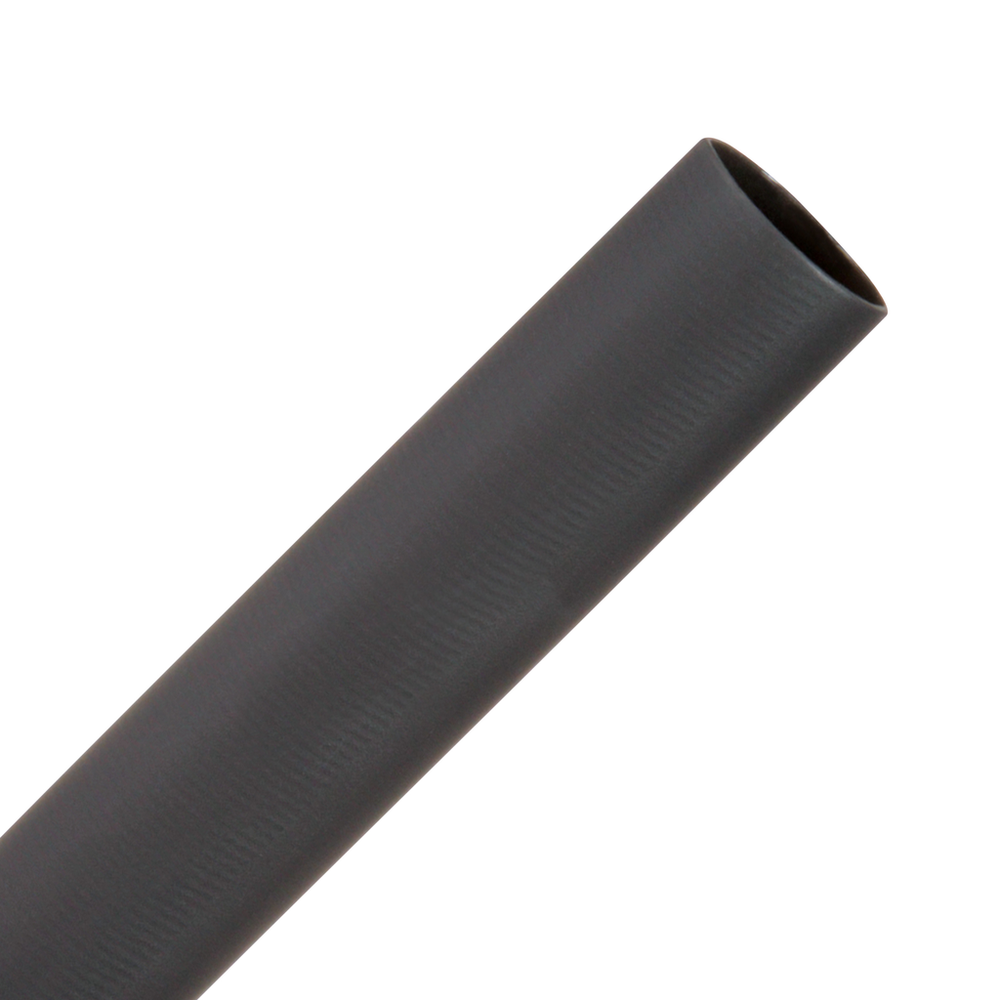

3M™ Thin-Wall Heat Shrink Tubing EPS-300, Adhesive-Lined, 1/2-48"-Black-Hdr-12 Pcs, 48 in length sticks, 12 pieces/case - 7000133598

Sold As: 12-Pack
SKU: 7000133598
MPN: 7000133598
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128597934
3M ID: 80611600547
5 Digit UPC: 59793
$375.22 ($31.27 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Tubing EPS-300 is a dual wall tubing provides the advantage of an integral, adhesive lined construction. This flame retardant tubing with a 3:1 shrink ratio offers insulation for 600V rated applications. The flexible polyolefin construction features an internal layer of thermoplastic adhesive, which offers moisture seal protection in automotive and marine applications.

Features

  • Made of black flexible polyolefin
  • Offers protection for automotive, truck, electronic components, wire splices, wire bundles and harness breakouts
  • Dual-wall construction provides abrasion resistance and moisture-seal protection
  • Offers the advantage of integral, adhesive-lined construction
  • Flame-retardant tubing is rated for 600V applications
  • Withstands temperatures of -67 to 230 degrees F (-55 to 110 degrees C)
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Product ColorBlack
Maximum Operating Temperature (Fahrenheit) UOMDegree
Non-CorrosiveYes
Overall Length (Imperial)48.0
Inner Diameter Before Shrink (Imperial)0.5
Units per Case12.0
Minimum Expanded Tubing I. D.0.5
Maximum Operating Temperature (Celsius) UomDegree
Operating Temperature Range (Celsius)-55 °C to 110 °C
Elongation UOM%
Tubing TypeDual Wall (Adhesive Lined)
Overall Length (Metric)1219.0
Inner Diameter Before Shrink (Metric)12.7
Inner Diameter Before Shrink (Imperial) UOMin
Heat Shrink TypeAdhesive-Lined Polyolefin Heat Shrink Tubing
Operating Temperature Range (Fahrenheit)-67 °F to 230 °F
Operating Temperature (Celsius)-55 °C to 110 °C

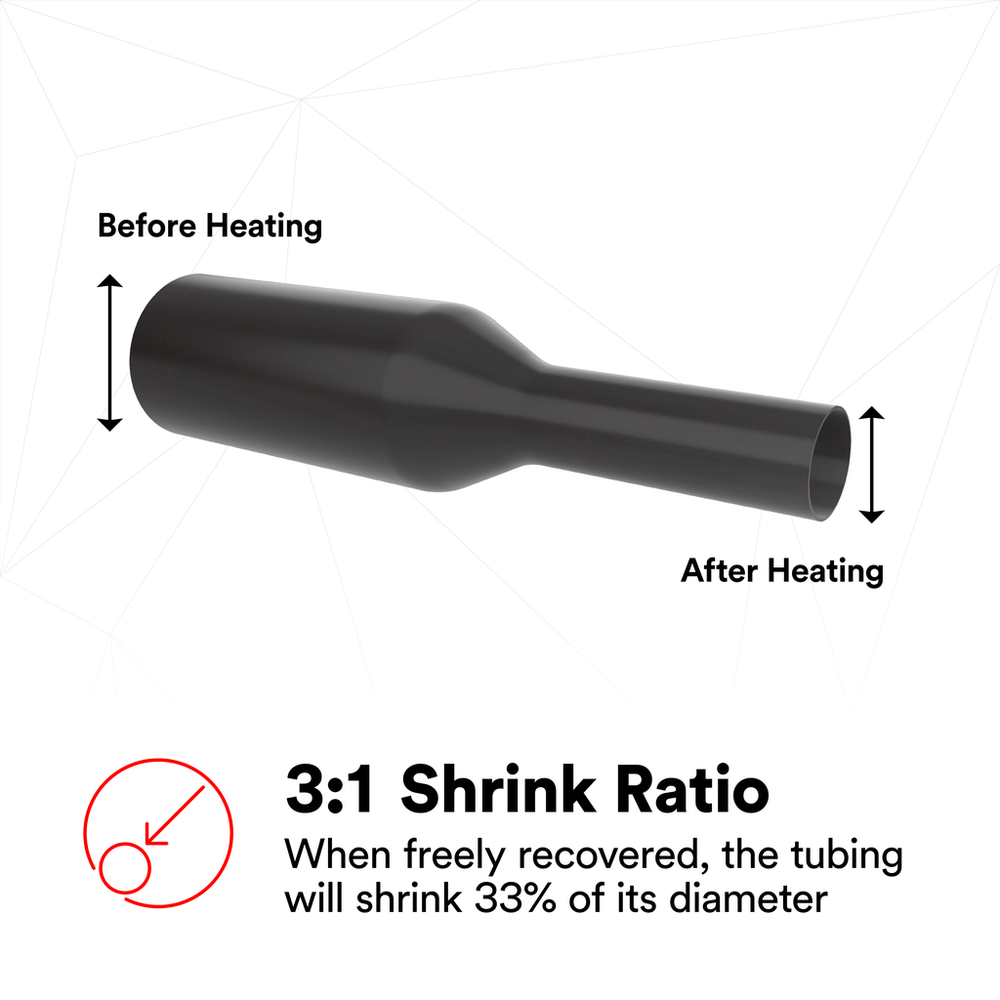

Shrink Ratio3:1
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
MaterialPolyolefin
Maximum Operating Temperature (Celsius)110.0
Flame RetardantYes
Inner Diameter Before Shrink (Metric) UOMmm
Adhesive MaterialSilicone
Inner Diameter After Shrink (Imperial) UOMin
Minimum Expanded Tubing I. D. UOMin
Operating Temperature (Fahrenheit)-67 °F to 230 °F
Overall Length (Imperial) UOMin
Overall Length (Metric) UOMmm
Inner Diameter After Shrink (Metric)4.06
UL File NumberE-157227
Inner Diameter After Shrink (Imperial)0.16
Inner Diameter After Shrink (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit)230.0
